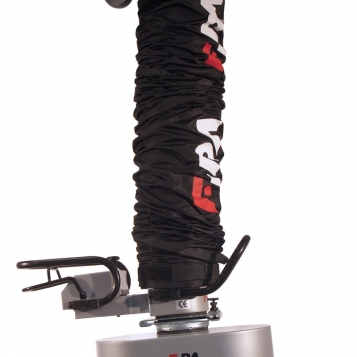

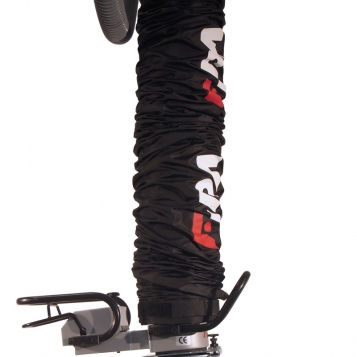

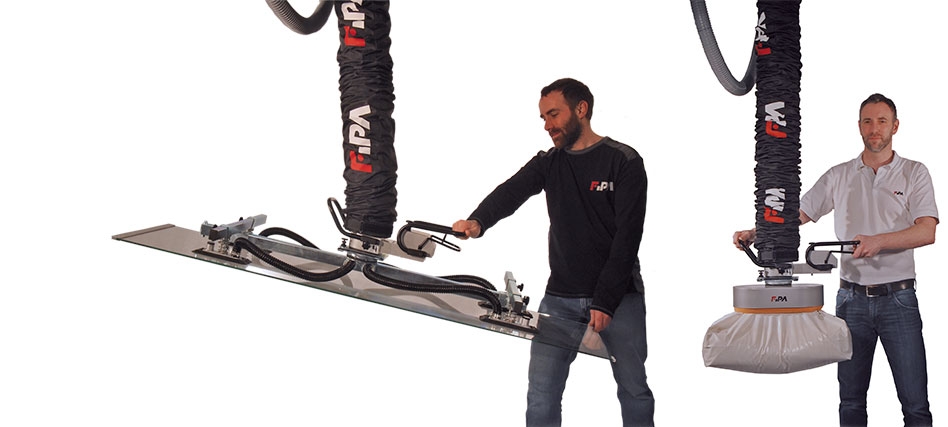

Tube lifters FIPALIFT Expert.

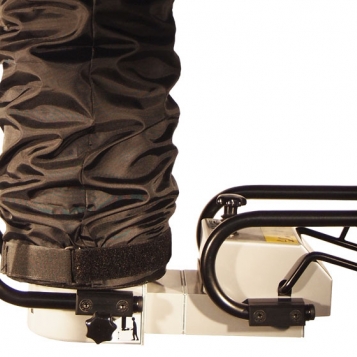

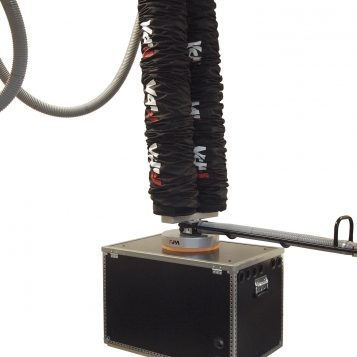

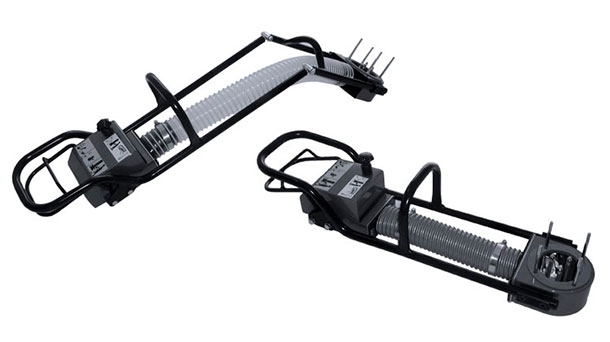

As an optional configuration, we can fit an elongated controller to the tube lifter for handling large and awkward goods.

These are also available as fixed versions in lengths from 500 to 1,200 mm and as flexible versions up to a length of 1,600 mm. Take note of the table of factory-fitted options for the standard versions.

. The standard versions have the standard control handle, a stroke of 2.50 m and a suspension with eyelet
. We can offer a wide variety of factory-made options in addition to the standards. These can be seen below in the ”Factory mounted options” table.
. The rotary blower required for the supply of vacuum and the vacuum cups are not included in the scope of delivery – please order separately
. Please take note of the combination table ”Combination of lifting tube diameter and pump”. It can be used to establish the best combination for the lifting force that you need.
. We would be pleased to help you with the design of your system

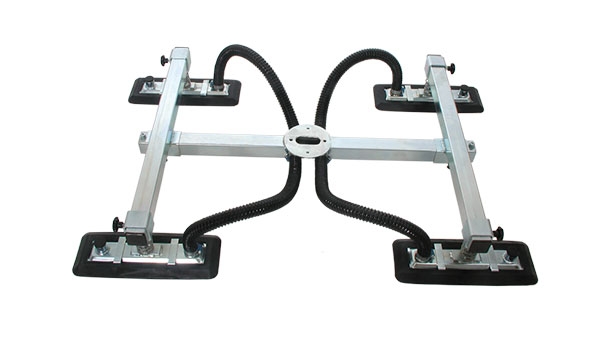

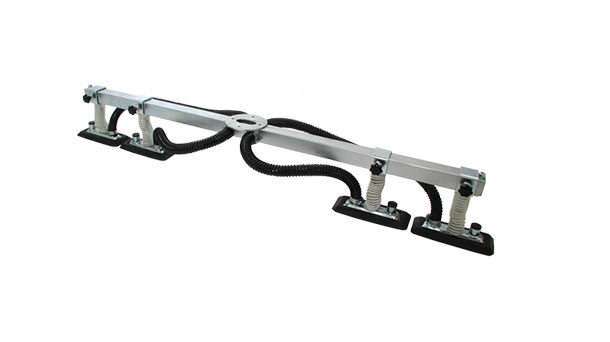

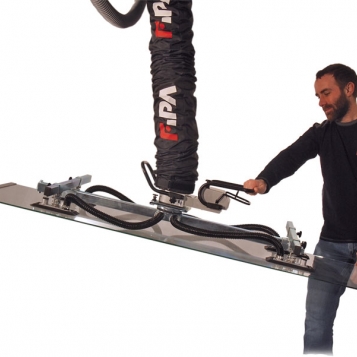

. Adjustable cross beam for handling sheet materials
. Strong tubular steel construction
. G1/2 connections for using a wide range of FIPA vacuum cups
. Vacuum cups are not included in the scope of delivery. We will be pleased to help you with your selection.

. Adjustable cross beam for handling sheet materials
. Strong tubular steel construction
. G1/2 connections for using a wide range of FIPA vacuum cups
. Vacuum cups are not included in the scope of delivery. We will be pleased to help you with your selection.

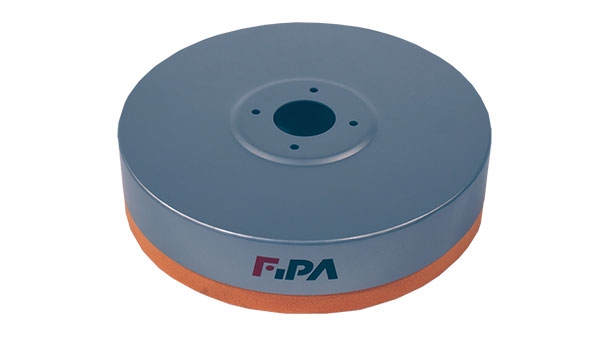

. Suction shells made from sheet metal with sealing foam
. Suitable for handling barrels, cans, drums, stone, tiles and much more
. Sealing foam can be easily replaced without the need for tools
. We would be pleased to provide advice on the selection of suitable vacuum cups and to carry out vacuum tests
. Cups without a safety factor statement must not be used with this lifting tube diameter
. A safety factor of at least 2.5 is necessary for horizontal handling and at least 4.0 for vertical handling

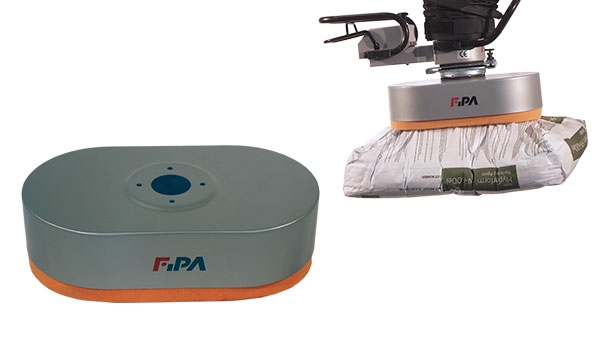

. Suction shells made from sheet metal with sealing foam
. Also available in stainless steel

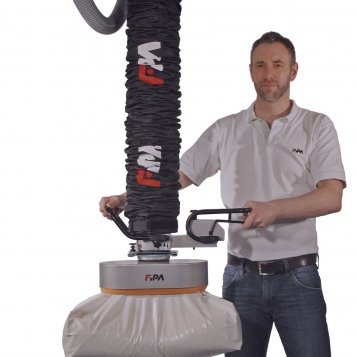

. Suitable for handling sacks and shrink-wrapped goods
. Sealing foam can be easily replaced without the need for tools
. We would be pleased to provide advice on the selection of suitable vacuum cups and to carry out vacuum tests
. Cups without a safety factor statement must not be used with this lifting tube diameter
. A safety factor of at least 2.5 is necessary for horizontal handling and at least 4.0 for vertical handling

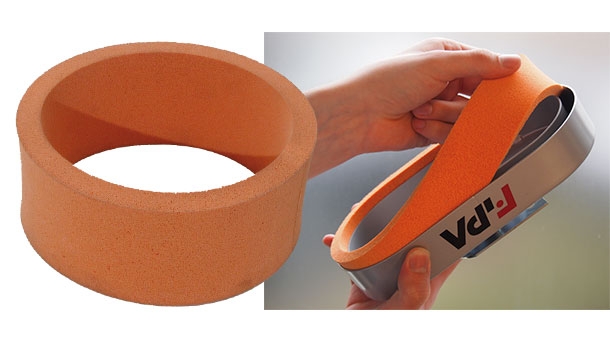

. Easily replaced without the need for tools if worn out
. Simply pull the foam out of the suction shell and slide in the new one

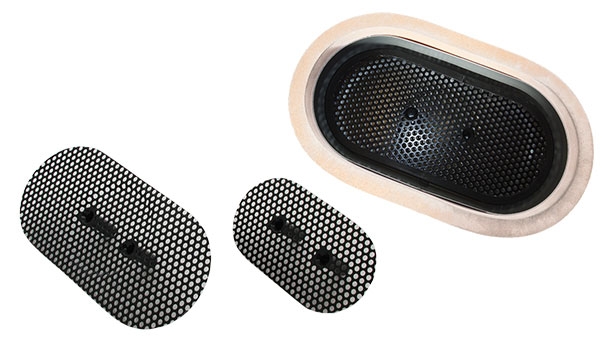

. Support element in the suction shells in order to prevent the goods to be lifted from being drawn in
. Important aid when handling loosely filled bags

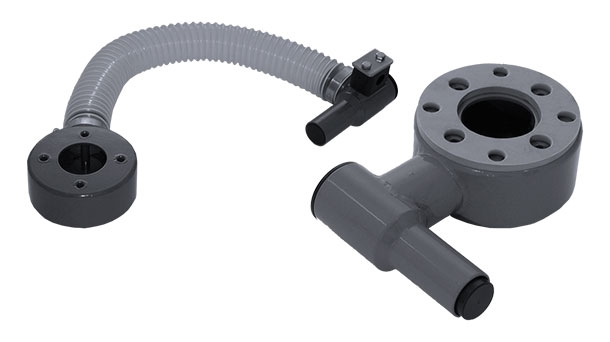

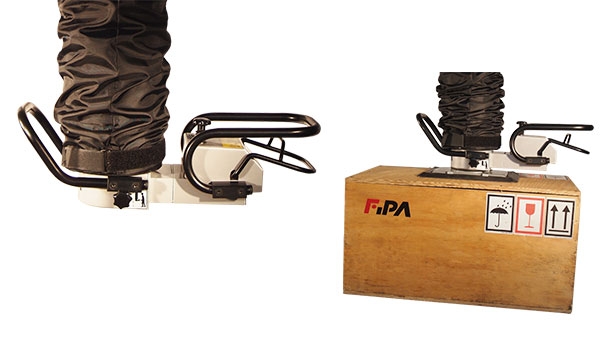

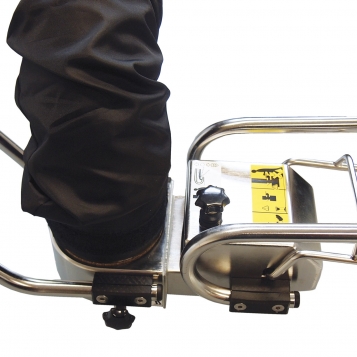

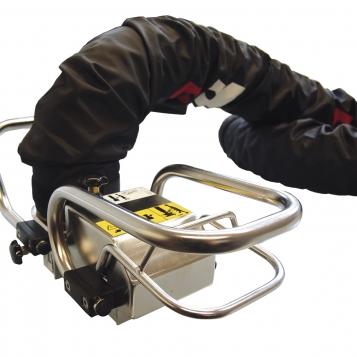

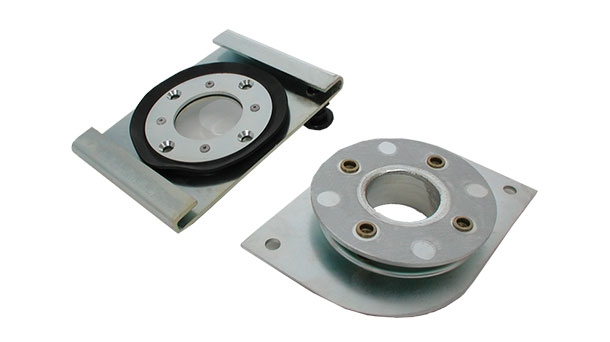

. Quick-change system for rapid tool-free replacement of the vacuum cups and gripper systems on the FIPALIFT Expert
. Operates with a bayonet fitting
. Ideally suited to frequently changing handling tasks

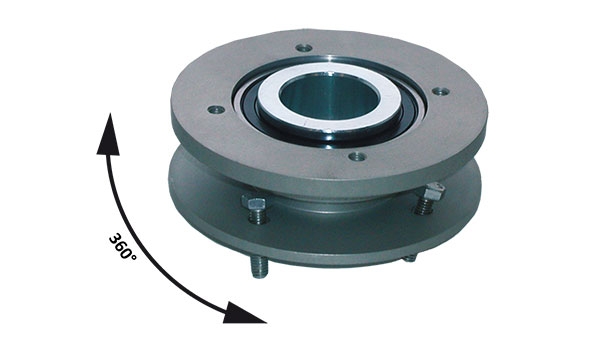

. Joint for stepless 360° rotation of goods
. Ideal for repositioning of goods to be lifted, e.g. when loading a machine

. Additional valve for rapid lowering of goods to be lifted
. Recommended for use with large vacuum cups and lighter goods
. Available for the standard control handle and elongated control handle
. The vacuum can be released via push button on the operating unit

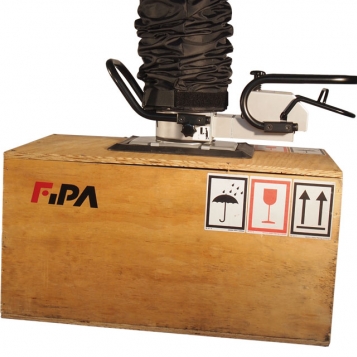

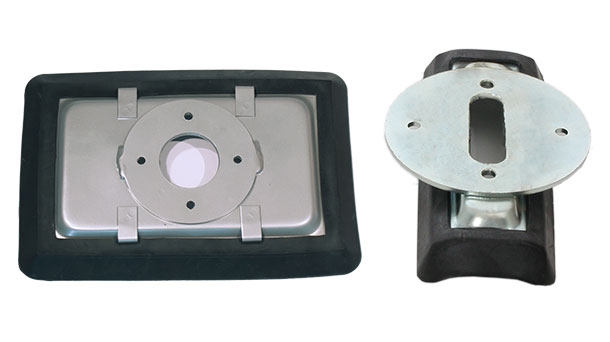

. Rectangular suction plates for direct mounting on the control handle of the FIPALIFT Expert
. Suitable for handling of cartons, boxes and smaller flat products
. Steel plate with exchangeable gasket made from natural rubber (NR) black
. Gasket can be easily replaced without the need for tools
. Concave shape available for lifting pipes or bars
. Cups without a safety factor statement must not be used with this lifting tube diameter
. A safety factor of at least 2.5 is necessary for horizontal handling and at least 4.0 for vertical handling
. The appropriate replacement gaskets are available as accessories for all types

SPECIAL SOLUTIONS

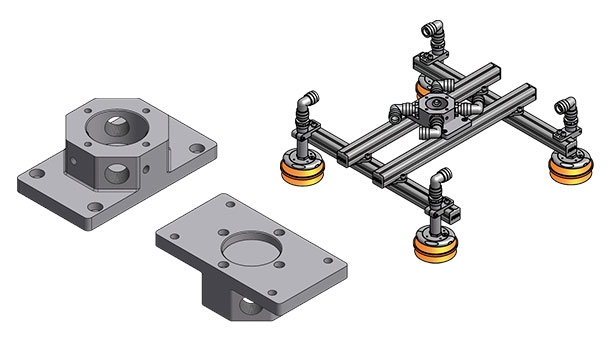

. For adapting the FIPA End-of-Arm-Tooling kit to the FIPALIFT Expert
. Can be used with FIPA XLine profile and the corresponding connecting elements
. Enables the installation of special solutions for non standard goods
. Four G 3/4 connections for vacuum supply to vacuum cups
. Two G 1/8 connections for the use of vacuum gauges
. The appropriate EOAT components can be found at www.fipa.com in the End-of-Arm-Tooling section and in our End-of-Arm-Tooling catalog
