Blind rivet nuts BMS.

Fully automatic setting unit for blind rivet nuts with patented quality control.

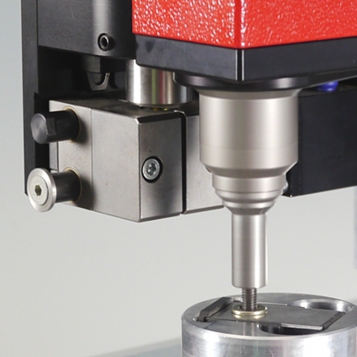

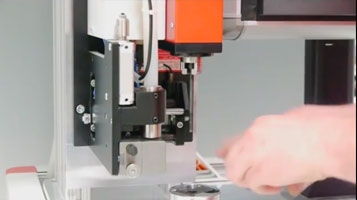

Our setting system with force-displacement-measurement for the automated assembly of blind rivet nuts is characterized by its versatility, high performance and short cycle times. The STÖGER system for blind rivet nuts meets the requirements in terms of economic efficiency due to its slim design as well as easy and quick tool change. Our automatic setting system for blind rivet nuts has for many years been used successfully, in particular in the automotive sector.

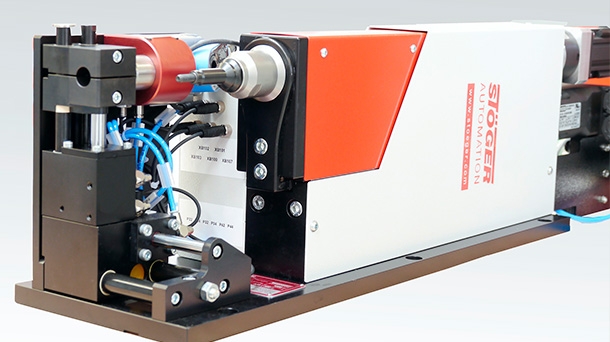

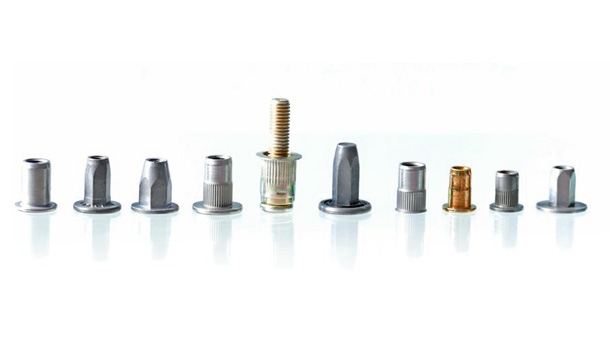

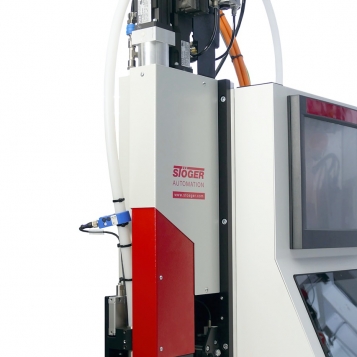

The compact design with a closed housing to protect against dust and the quick tool change underline our commitment to economic feasibility. The automated process for setting blind rivet nuts is 100 percent monitored. The system can be used in a stationary setting, in transfer systems, rotary table systems or robot systems. The blind rivet nuts are singulated in a feeder system as bulk materials and automatically fed into the correct position via a flexible feed hose in relation to the setting unit.

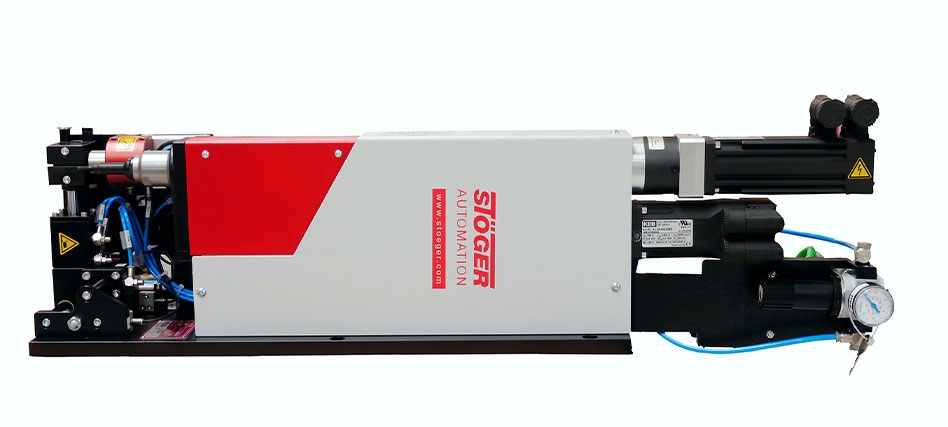

The automated process of setting a blind rivet nut is entirely monitored. STÖGER setting systems for blind rived nuts are thus suitable for transfer lines, turn table and positioning systems as well as robots. STÖGER setting systems feature technical details such as integrated feed stroke with displacement-measuring system, controlled servo drive for all functions, a load cell for monitoring the drawing force, an automatic check of the thread before and after the setting process, a superior multi-function control system with touch-screen based guided operation, rivet feeding through a flexible hose and optional increments.

THE ADVANTAGES AT ONE GLANCE
. The patented torque test checks the secure fitting of the rivet after drawing.
. The functionality of the thread is tested for ease of movement both when winding in and winding out. Rivets that are detected as faulty when winding in are automatically ejected and replaced. An error message is issued for threads that are detected as faulty when winding out.
. The search function for the hexagonal blind rivet nuts facilitates precise positioning in the workpiece.
. Breakage of the drawing tool is immediately detected by the system and reported.

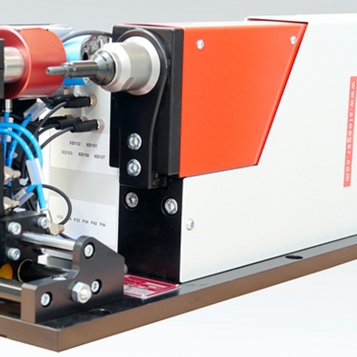

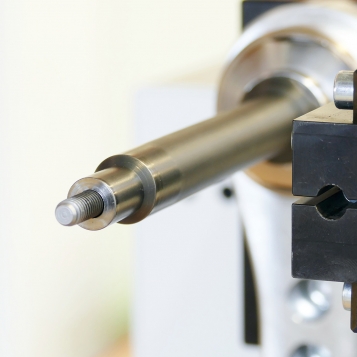

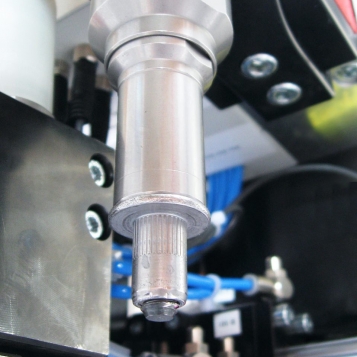

. The drawing tool is a commercially available standard screw; there is no need for expensive spare parts

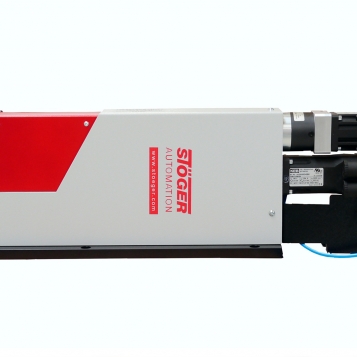

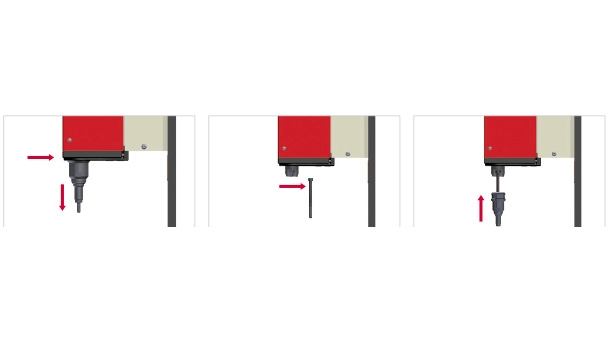

. The drawing tool can be changed within just 10 seconds without the need for any auxiliary tools
. Automatic feeding of the fastening elements
