FIPA Compact Ejectors - Economical Vacuum Supply.

FIPA compact ejectors require little space and are extremely economical thanks to their pressure-regulating/air-saving function. Thanks to an electronic blow-off function and vacuum control, FIPA compact ejectors achieve fast cycle times – they are ideal for pick-and-place in packaging technology and applications used in sheet metal forming, the automotive industry and wood processing.

Regardless of the porosity of the workpiece, EMM, EKP and EKPP series ejectors reduce operational costs by up to 50 %. The combination of the pressure-regulating/air-saving and electronic automatic air-saving functions in the EMA series achieves operational savings of up to 97 % when working with non-porous workpieces.

All FIPA compact ejectors are equipped with integrated, open silencers that greatly reduce the noise level.

The block construction characterising EMM and EMA series compact ejectors enables space-saving block assembly.

More Info

Photos

Downloads

Links

Mais Info

Ejectors with air saving function EMM

SAVES UP TO 50 % OF ENERGY

Energy saving function by integrated pressure control

. Handling of dense and porous workpieces
. Within the supply pressure of 4 - 8 bar (58 - 116 psi), the ejector works at 3.5 bar (50.76 psi) with same high performance
. Energy saving increases along with the difference between supply pressure and operating pressure
. Electronic vacuum and blow-off control for short cycle times
. Manual adjustment of the blow-off flow rate using a setscrew
. Very compact design with integrated open silencer
. Dust-resistant design, no additional filters required

Mais Info

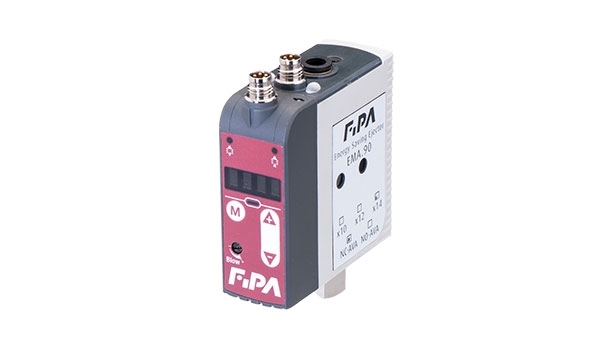

Ejectors with air saving function EMA

SAVES UP TO 90 % OF ENERGY

Double energy efficient by integrated pressure control and electronic air saving function

. Electronic air saving function reduces operating costs by up to 90 % with dense workpieces
. Pressure regulation energy-saving function at constant 3.5 bar (50.76 psi) reduces operating costs by up to 50 % with porous workpieces
- Energy saving increases along with the difference between supply pressure and operating pressure
. Electronic vacuum and blow-off control for short cycle times
. Manual adjustment of the blow-off flow rate using a setscrew
. Very compact design with integrated open silencer
. Dust-resistant design, no additional filters required
. NO - version on request
. Smaller nozzle diameters on request

Mais Info

Ejectors with air saving function EKP and EKPP

SAVES UP TO 50 % OF ENERGY

Energy saving function by integrated pressure control

. Handling of dense and porous workpieces
. Within the supply pressure of 4 - 8 bar (58 - 116 psi), the ejector works at 3.5 bar (50.76 psi) with same high performance
. Electronic vacuum and blow-off control for short cycle times
. Manual adjustment of the blow-off flow rate using a setscrew
. Low noise emissions as, starting from 4 bar (58 psi), outlet pressure is independent of inlet pressure
. Open silencer further reduces the noise level and is completely maintenance-free

Ejectores brochure

More information
