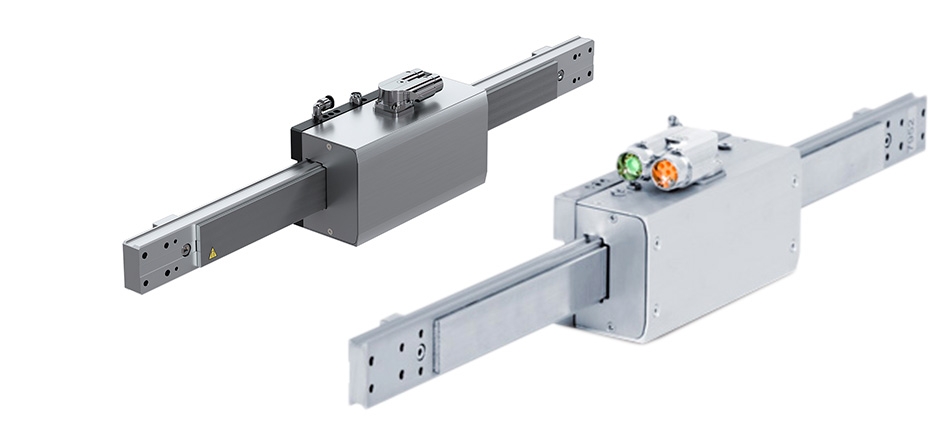

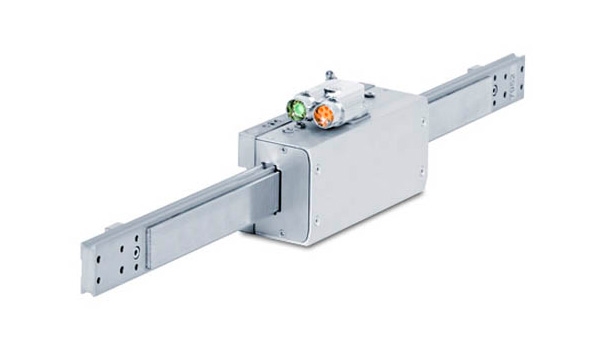

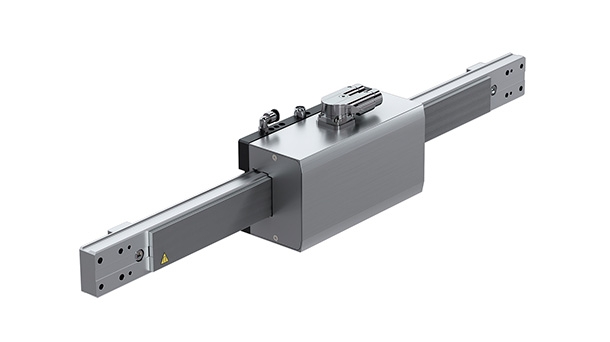

Rapid and harmonic movements with HL highly dynamic linear motor axis.

The linear motor axis HL provides, without any doubt, the most modern drive technology which is highly integrated and ready to mount. Tight and precise recirculating ball bearings and an absolute measurement system as well as the automatic lubrication are all included in this product. KNOW THE ADVANTAGES OF THIS RANGE.

The result: Rapid and harmonic movements, horizontal or vertical mounting and loading on the right or left side is possible.

ADVANTAGES
. User programmable
. Extremely high dynamic performance thanks to direct drive
. Long lifetime
. Low maintenance costs
. Low energy costs
. Compact design – low weight
. Stiff mechanical assembling
. Very good repeat accuracy

GENERAL INFORMATION
. In the HL model range, as little mass as possible is moved due to the moving guide rail. The axes then meet the requirements of vertical ap-plications very efficiently
. All motors are equipped with overtemperature protection
(PTC)

OPTIONS
. The installation location of the HL axes can be freely chosen
. Absolute measuring systems
. Holding brake
. The linear axes can be equipped with manual or automatic lubrication
. Functional safety (secure encoder attachment)
