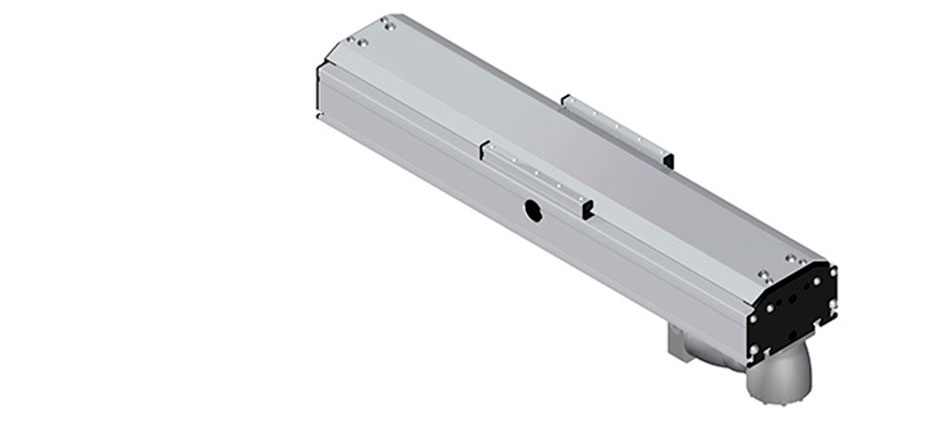

Positioning system DLZPVI.

This unit consists of a rectangular aluminium profile with 2 integrated roller guides. The carriage is moved by a belt drive. On the drive side the pulley is beared on the shaft of a planetary gear. Belt tension can be readjusted by a simple screw adjustment at the opposite side of the drive. A special curved aluminium sheet is covering the carriage side. There is only a small gap between carriage and aluminium sheet. Because of its special design it is possible to drive the carriage over the pulley areas. This fact is making the unit very compact. The cover profile can be adjusted according to the mounting position.

Sizes: 120, 160, 200

Fitting position:
As required, max. length DLZPVI 120 / 1600mm, DLZPVI 160 / 1800mm, DLZPVI 200 / 2000mm

Carriage mounting:
By tapped holes.

Unit mounting:
T-slots

Belt type:
HTD with steel reinforcement, no backlash when changing direction, repeatability ± 0,1 mm.

Carriage support:
In the standard version, the carriage runs on 4 runner blocks which can be serviced at a central servicing position. For longer carriages the number of runner blocks can be increased.
