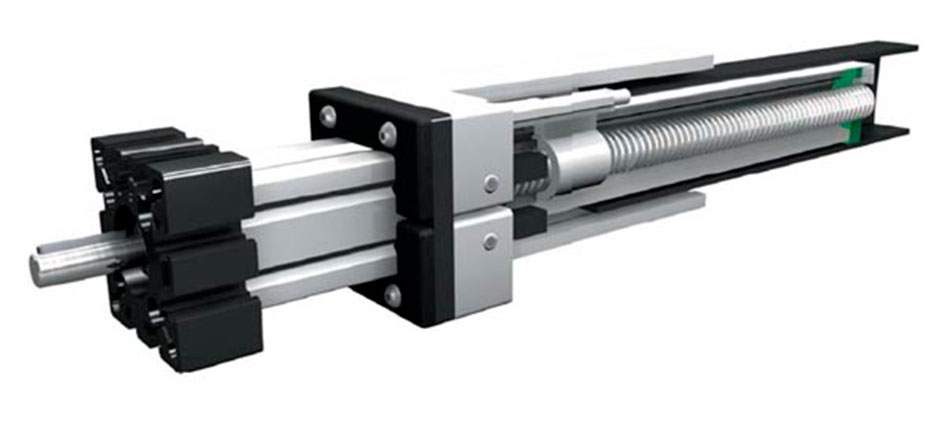

Positioning system EGTH / EGKH.
Marca
Mechanical linear unit with sliding guides, driven by an internal trapezoidal thread or ball screw. The result is a telescopic movement.
Sizes: 40, 60, 80
Repeating accuracy:
Trapezoidal thread: ± 0.2 mm
Ball screw: ± 0.025 mm
Function:
The rotary movement of the spindle is translated into a linear motion. Carriage and square tube are connected by a clamping block. The result is a telescopic movement.
Fitting position:
As required. Max. length 3.000 mm
Carriage mounting:
By T-slots and tapped holes
Unit mounting:
By T-slots and tapped holes in the mounting surface.
