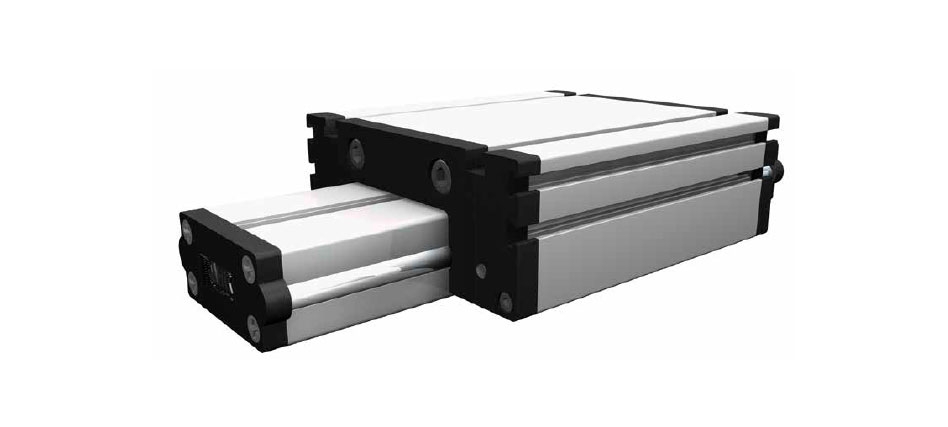

Positioning system E.

Mechanical linear unit with external roller guide.

Sizes: 40, 60, 80, 80S

Travel speed:
max. 10 m/s

Function:
Very low building system achieved by an aluminium guide body with integrated, hardened steel guide rods. The carriage, which has internal linear ball bearings that can be adjusted free of play, moves along the body.

Fitting position:
As required, max. length 6.000 mm.

Carriage connection:
By T-slots.

Unit mounting:
By tapped holes in the mounting surface, bottom surface with T-slots.
