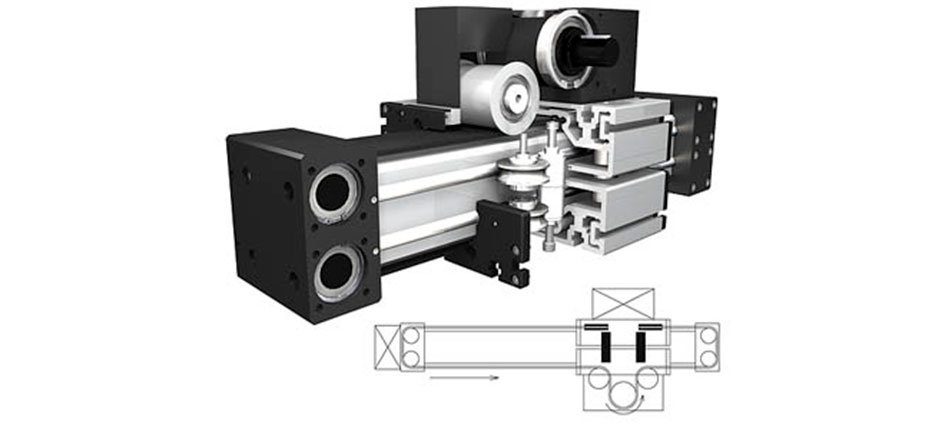

Positioning system ELFZex.

Like ELFZ. This positioning system is suitable for use in potentially explosive atmospheres (see ATEX -95 marking).

Sizes: 60S, 80S, 100, 125

Repeating accuracy:
± 0.1 mm

Travel speed:
max. 1 m/s

Function:
Like ELFZ. The positioning system is suitable for use according to the intended purpose in potentially explosive areas (see ATEX 95 marking). An operating manual is included in the scope of delivery. The system is certified for the following areas:

ATEX 2014/34/EU II 2G Ex h IIB T4 Gb:
All application areas except for underground mining. Gas atmosphere category 2, explosion protection category: protection due to secure construction (design security). Equipment group IIB. Temperature class T4=135 °C

ATEX 2014/34/EU II 3D Ex h IIIB T125 °C Dc:
All application areas except for underground mining. Dust atmosphere category 3. Maximum permissible surface temperature: 125 °C.

Fitting position:
As required. Max. length without joints 3.000 mm.

Carriage mounting:
By T-slots.

Unit mounting:
By T-slots or tapped holes in the bearing blocks, or mounting sets.

Belt type:
HTD with steel reinforcement, no backlash when changing direction, repeatability ± 0,1 mm.
