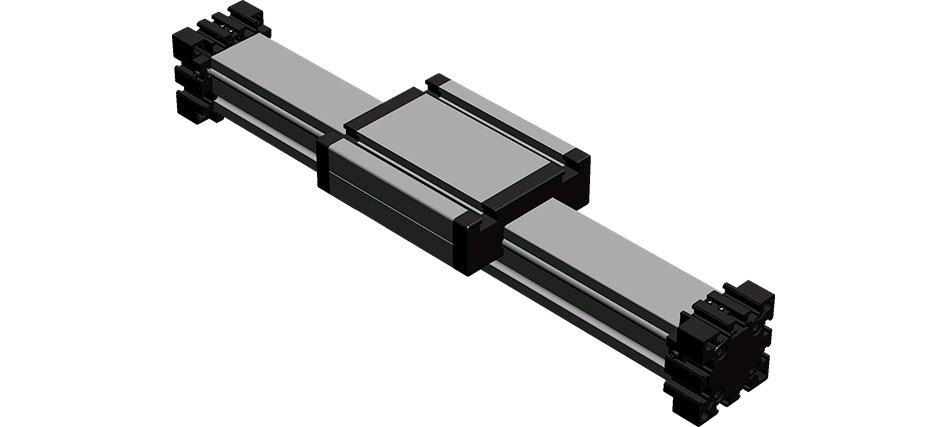

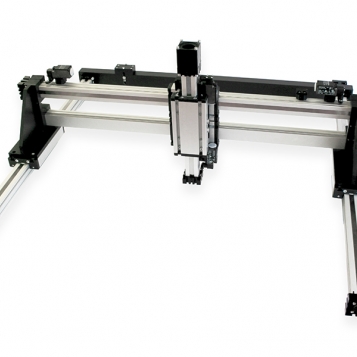

Positioning system ELR.

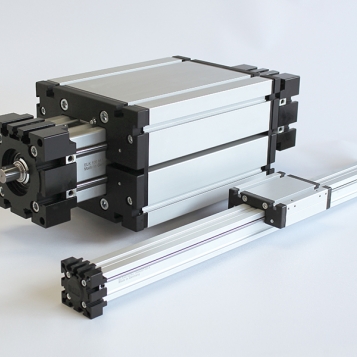

Mechanical linear unit with external roller guide.

Sizes: 30, 40, 60, 80, 80S, 100, 125

Travel speed:
max. 10 m/s

Function:
This unit consists of an aluminium hollow section with integral, parallel ground and hardened steel guide rods. The carriage has play-adjustable ball bearing rollers which engage with the guide rods. Two bearing blocks without bearings are fitted. Actuation can be by pneumatic cylinder or other device, or the unit may be used as load-carrying linear slide.

Fitting position:
As required, max. length 6.000 mm

Carriage connection:
By T-slots and tapped holes

Unit mounting:
By T-slots and tapped holes in the mounting surface, mounting sets.
