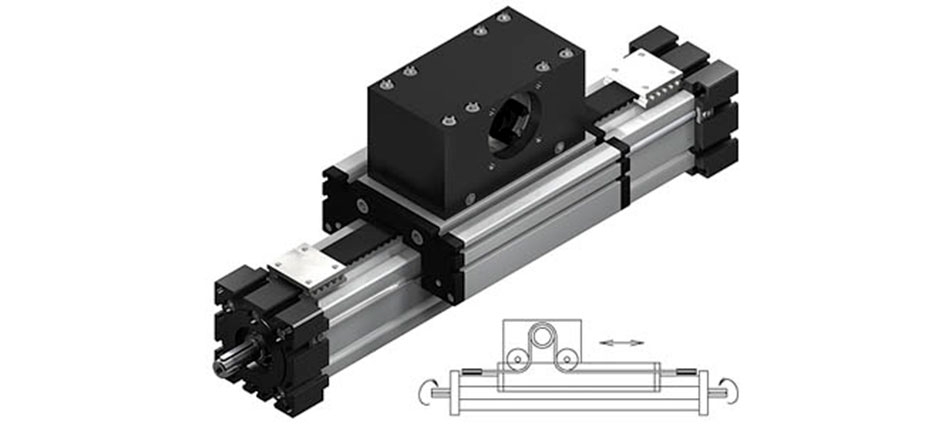

Positioning system ELSD.

Same function as ELSZ with a driven carriage. An additional rotating shaft integrated into the guide profile can be used to adapt grippers and other components.

Sizes: 40, 60, 60S, 80, 80S, 100

Repeating accuracy:
± 0.1 mm

Travel speed:
max. 6 m/s

Function:
Same as ELSZ, but with an additional rotary shaft, fitted within the aluminium body. One end can be driven by any suitable motor, and the other end is provided with a shaft with feather key and an axial tapped hole for fitting grippers or other components.

Fitting position:
As required. Max. length 2.000 mm.

Carriage mounting:
By T-slots.

Unit mounting:
By T-slots or tapped holes in the bearing blocks, mounting sets.

Belt type:
HTD with steel reinforcement, no backlash when changing direction, repeatability ± 0,1 mm.
