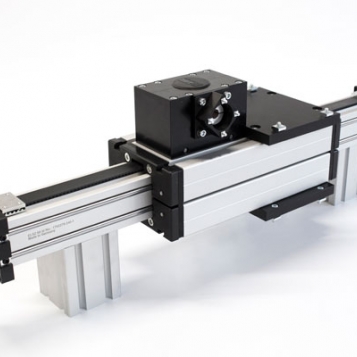

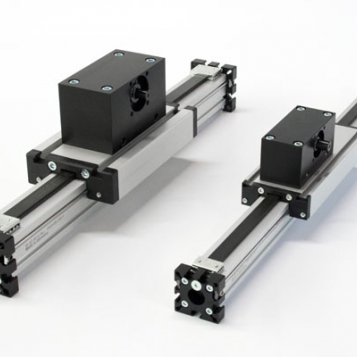

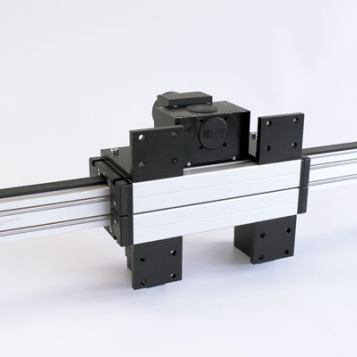

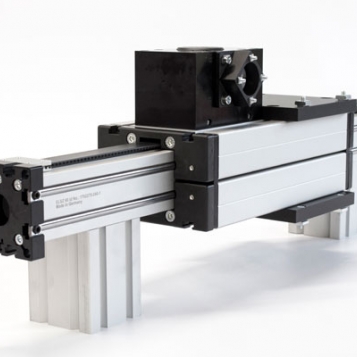

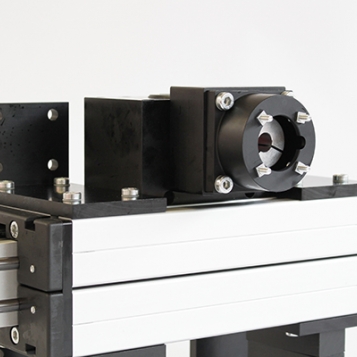

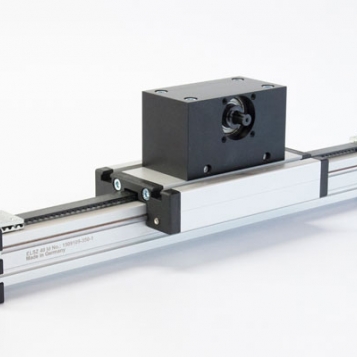

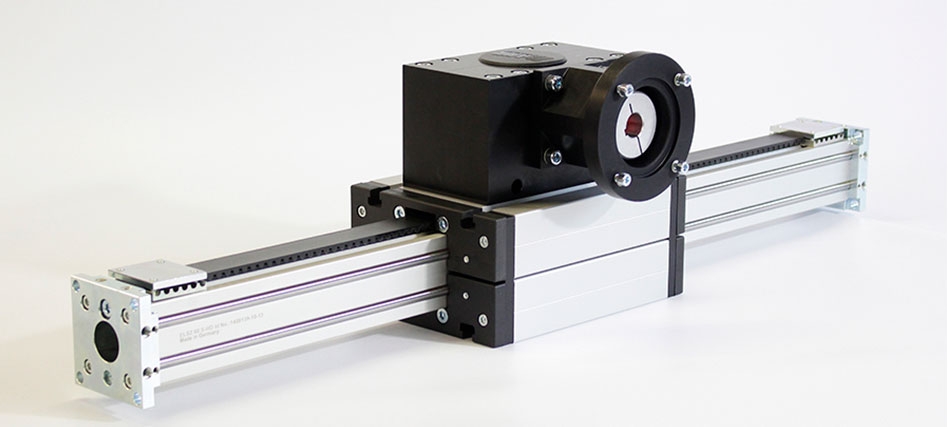

Positioning system ELSZ.

Same function as ELZ, but with a driven carriage.

Sizes: 30, 40, 60, 60S, 80, 80S, 100, 125

Repeating accuracy:
± 0.1 mm

Travel speed:
max. 6 m/s

Function:
This linear unit consists of an aluminium square profile with hardened steel guide rods. The carriage, which has internal linear ball bearings that can be adjusted free of play, is driven along the guide rods by a timing belt. The pulley has maintenance-free ball bearings. Belt tension can be readjusted by a simple tensioning device in one of the end blocks. This device can also be used for symmetrical adjustment of two or more linear units running parallel.

Fitting position:
As required. Max. length without joints 6.000 mm.

Carriage mounting:
By T-slots.

Unit mounting:
By T-slots or tapped holes in the bearing blocks, or mounting sets.

Belt type:
HTD with steel reinforcement, no backlash when changing direction, repeatability ± 0,1 mm.
