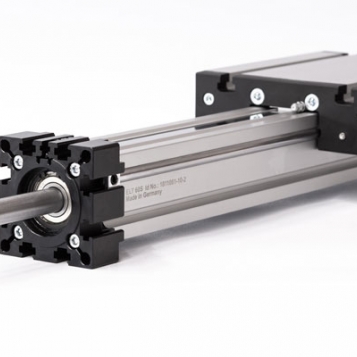

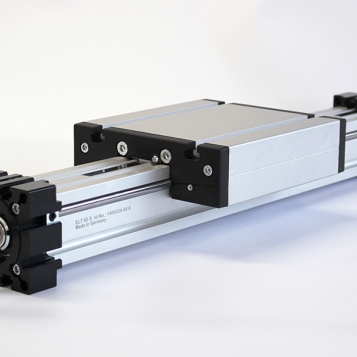

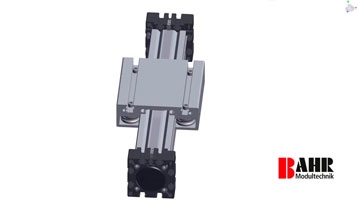

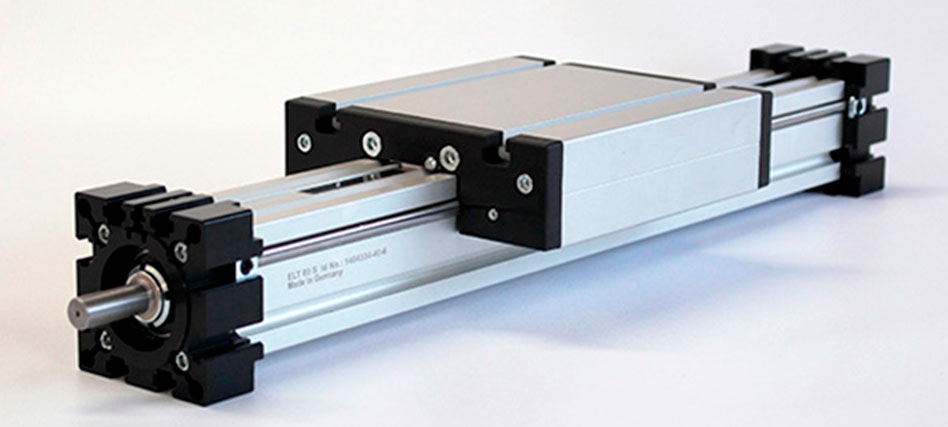

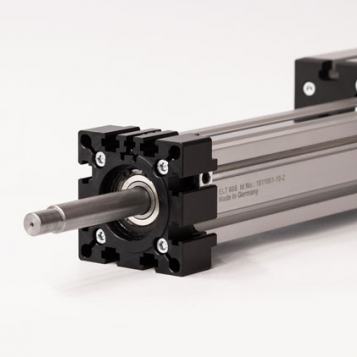

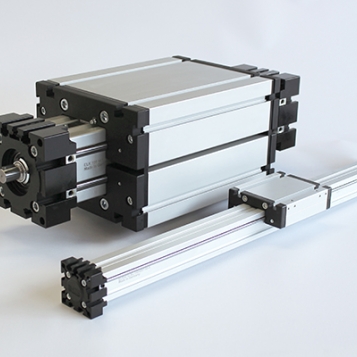

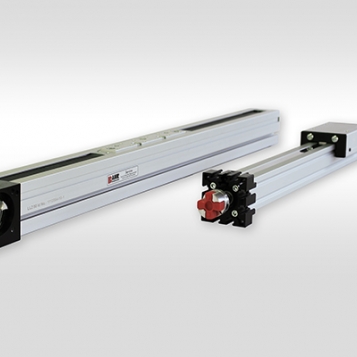

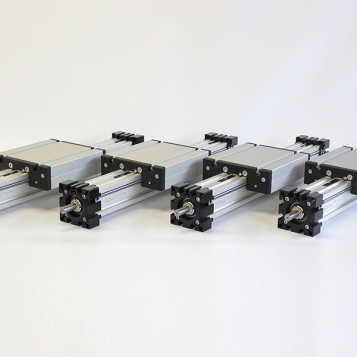

Positioning system ELT / ELK.

Mechanical linear unit with external roller guides, driven by an internal trapezoidal thread or ball screw.

Sizes: 30, 40, 60, 60S, 80, 80S, 100, 125

Repeating accuracy:
Trapezoidal thread: ± 0.2 mm
Ball screw: ± 0.025 mm

Function:
This linear unit consists of an aluminium hollow section with integral, parallel ground and hardened steel guide rods. The carriage has playadjustable ball-bearing rollers which engage with the guide rods. The rotating trapezoidal/ballscrew causes linear motion of the ballnut, which is connected to the carriage. The slot necessary for this is covered by a stainless steel strip, making the unit dust- and splash-proof. Lateral adjustment of movement for parallel units, or when two carriages are mounted on one unit, is provided by the ballnut mounting.

Fitting position:
As required, max. length 3.000 mm
(EL 30 / max. 1500 mm, EL 40 / max. 2000 mm)

Carriage mounting:
By T-slots and tapped holes

Unit mounting:
By T-slots and tapped holes in the mounting surfaces.
