Positioning system ELZA / ELDZA.

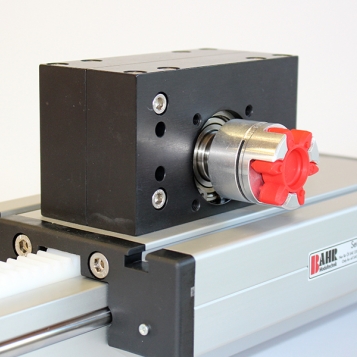

Same function as ELSZ, but with a toothed rack screwed onto the guide profile. The toothed wheel is fitted onto the carriage.

Sizes: 40 (ELZA), 60, 60S, 80, 80S, 100

We have been implementing comprehensive model improvement measures so that we are able to offer our products in the segment of toothed rack drives in a more cost-effective and application-oriented way.
New innovative guiding profiles ELDZA have been developed, which can be used effectively in combination with standardized toothed racks.
Depending on the specific task (e. g. load, mounting position, service life or cost) it is possible to use different material combinations.

Repeating accuracy:
± 0.2 mm

Travel speed:
max. 3 m/s

Function:

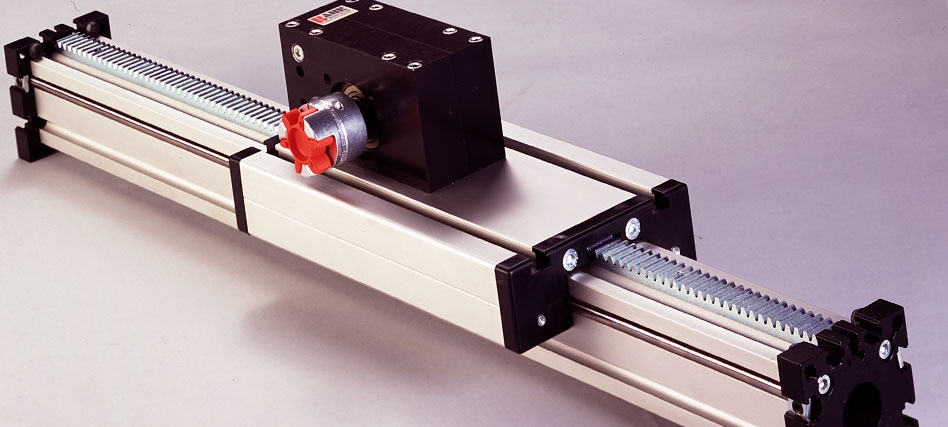

This unit consists of an aluminium square profi le with integrated, hardened steel guide rods. The carriage, which has internal linear ball bearings that can be adjusted free of play, is driven by a rack and pinion. The pinion is equipped with maintenance-free ball bearings.

Fitting position:
As required. Max. length without joints 6.000 mm.

Carriage mounting:
By T-slots.

Unit mounting:
By T-slots and holes in the bearing blocks, mounting sets.

Rack:
C45, Steel 1.4305 or plastic (PA 6) possible.
