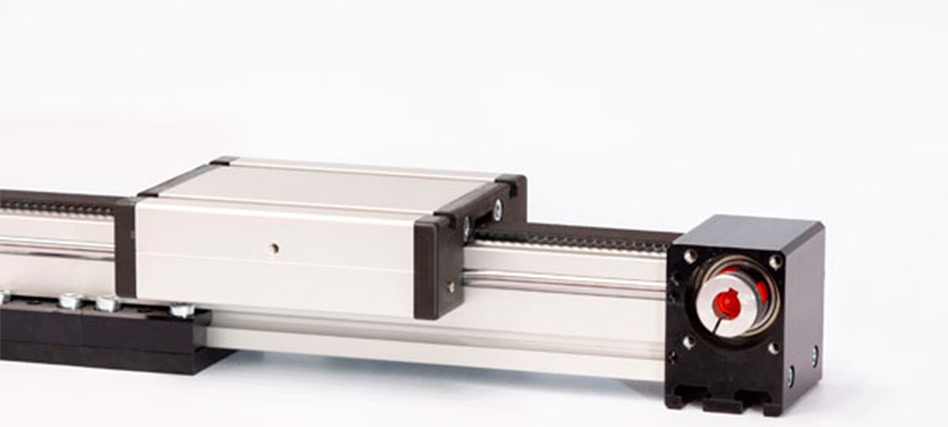

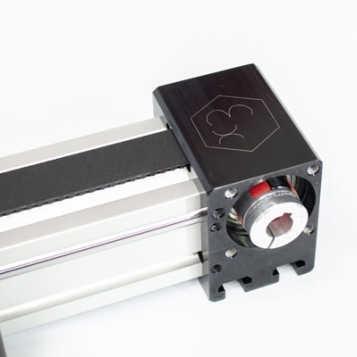

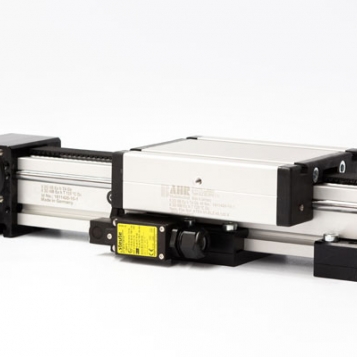

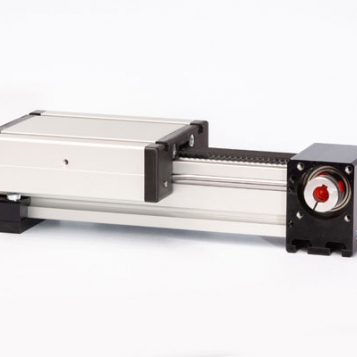

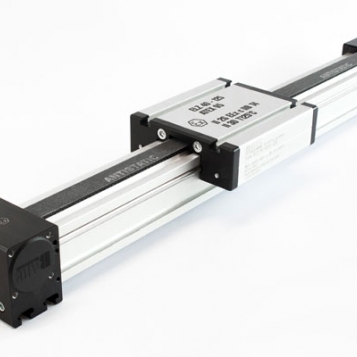

Positioning system ELZex.

Like ELZ, but suitable for use in potentially explosive atmospheres (see ATEX 95 marking).

Sizes: 40, 60, 60S, 80, 80S, 100, 125

Repeating accuracy:
± 0.1 mm

Travel speed:
max. 1 m/s

Function:
Like ELZ. The positioning system is suitable for use according to the intended purpose in potentially explosive areas (see ATEX 2014/34/EU marking). An operating manual is included in the scope of delivery. The system is certified for the following areas:

ATEX 2014/34/EU II 2G EX h IIB T4 Gb:
All application areas except for underground mining. Gas atmosphere category 2, explosion protection category: protection due to secure construction (design security). Equipment group IIB. Temperature class T4=135°C, EPL Gb.

ATEX 2014/34/EU II 3D EX h IIIB T125 °C Dc:
All application areas except for underground mining. Dust atmosphere category 3. Maximum permissible surface temperature: 125°C, EPL Dc.

Fitting position:
As required, max. length 6.000 mm.

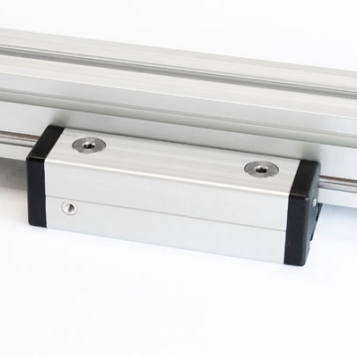

Carriage mounting:
T-slots

Unit mounting:
By T-slots or tapped holes in the bearing block, mounting sets.

Belt type:
HTD with steel reinforcement, no backlash when changing direction, repeatability: ± 0,1 mm.
