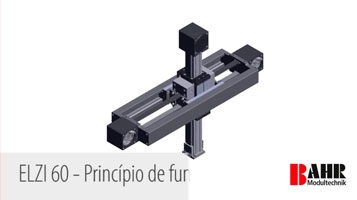

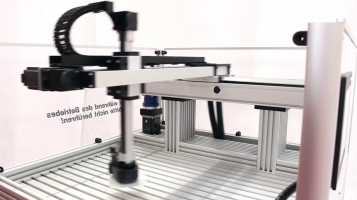

Positioning system ELZI.

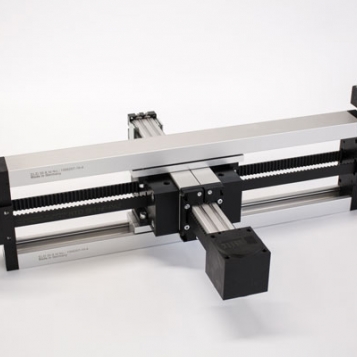

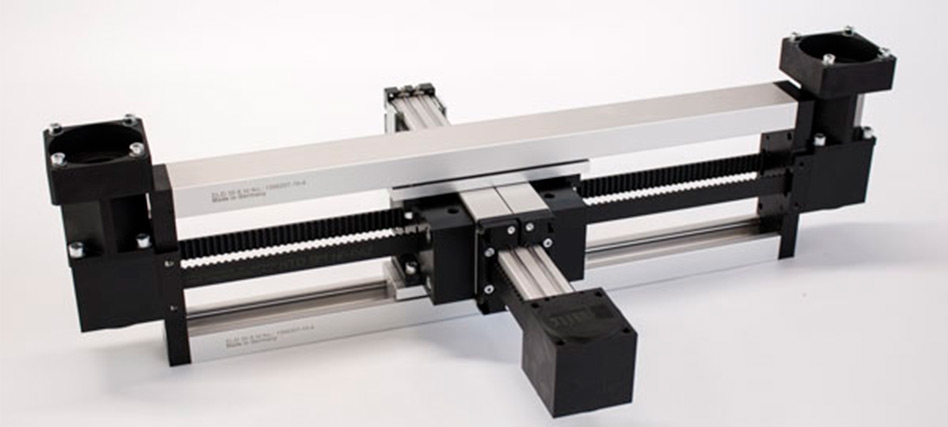

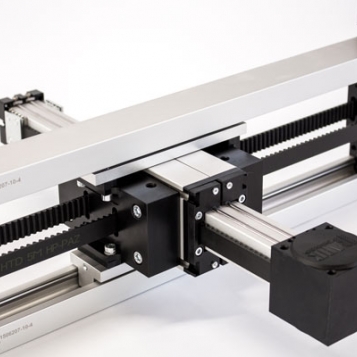

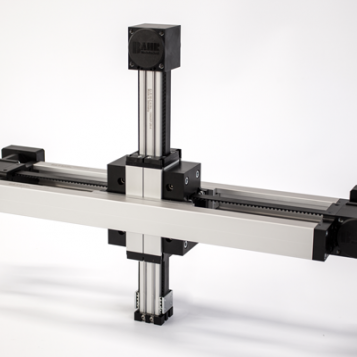

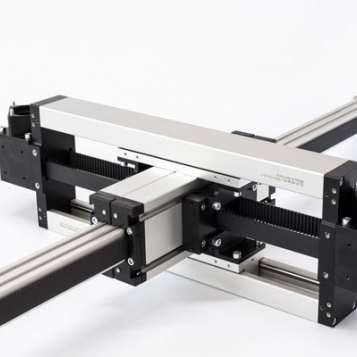

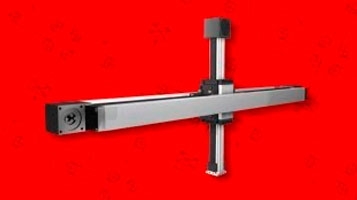

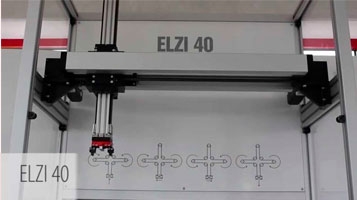

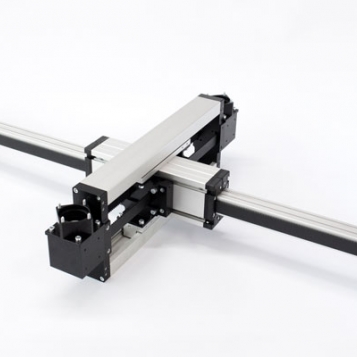

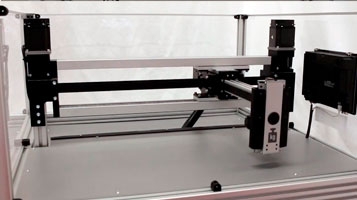

X/Z-gantry consisting of a double guide on the horizontal X-level and a vertical Z-axis. The movements are achieved by external fixed drives via a rotating belt that runs around several deflection pulleys.

Sizes: 30, 40, 60

Repeating accuracy:
± 0.1 mm

Travel speed:
max. 5 m/s

Function:
X/Z gantry consisting of a double guide in the horizontal X level and a vertical Z axis. The belt is fixed and tensioned at the load end. The unit is driven by a rotating belt, which remains connected through various deflection points. The movement is realised by two motors. The coordinate lies diagonal to the deflection points of the X axes and the Z axis.
Advantage: Only small masses are moved and thus it is possible to achieve high accelerations.

Fitting position:
As required, max. length for x-axes 2000mm, for z-axis 1000mm

Unit mounting:
By tapped holes in the bearing block, mounting sets.

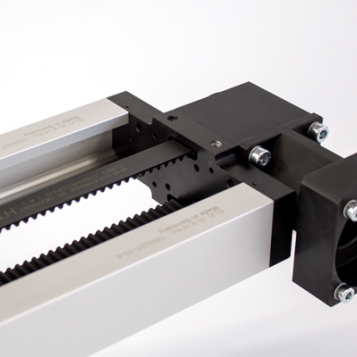

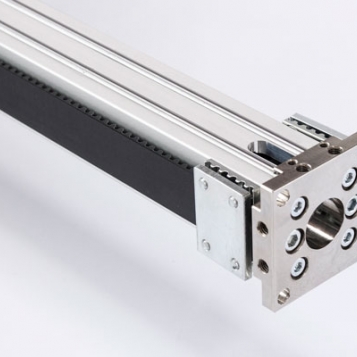

Belt type:
HTD with steel reinforcement, no backlash when changing direction, repeatability: ± 0,1 mm.
