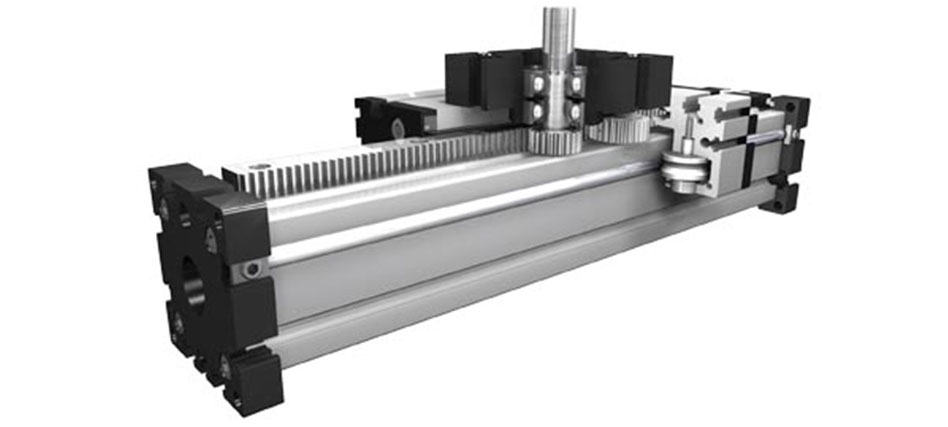

Positioning system ELZQ.

Special lifting unit with function as ELZA. High dynamic and accuracy is achieved by a precision rack and pinion.

Sizes: 60, 80, 80S

Repeating accuracy:
± 0.1 mm

Travel speed:
max. 3 m/s

Function:
This unit consists of an aluminium square profile with integrated, hardened steel guide rods. The carriage, which has internal linear ball bearings that can be adjusted free of play, is driven along the guide rods by a high precision rack. The rack and pinion system is suitable for highly dynamic servo operation and ideal for lifting movements. The pinion has maintenance-free ball bearings. The rack is lubricated by a toothed felt wheel.

Fitting position:
As required. Max. length without joints 6.000 mm.

Carriage mounting:
By T-slots.

Unit mounting:
By T-slots and holes in the bearing block, mounting sets.

Rack:
Cf53; h6= hardened and ground; h7 = fi nely toothed.
