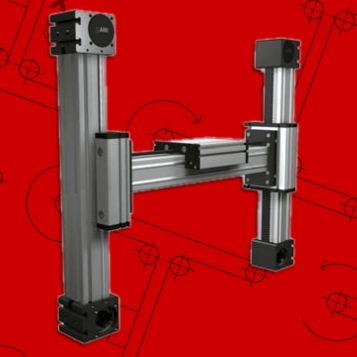

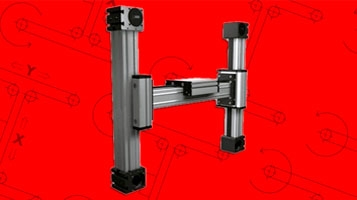

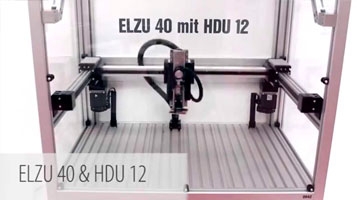

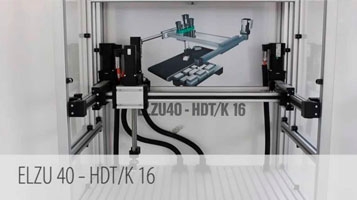

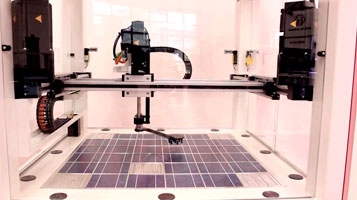

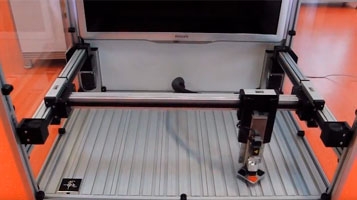

Positioning system ELZU.

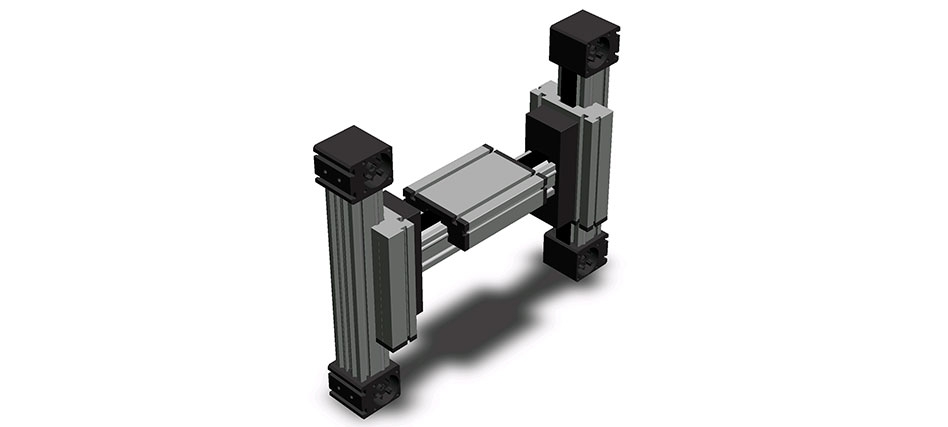

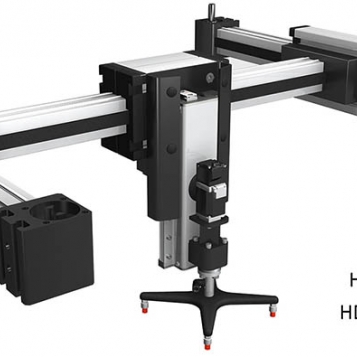

Area gantry, consisting of two Y-axes and one X-axis. The system is driven by a rotating toothed belt that runs around several deflection pulleys.

Sizes: 30, 40, 60, 60S, 80, 80S, 100

Repeating accuracy:
± 0.1 mm

Travel speed:
max. 6 m/s

Acceleration:
max. 20 m/s²

Function:
Surface portal, consisting of 2 Y-axes and 1 X-axis, driven by one rotating belt. This belt runs around different deflection pulleys. Positioning is achieved by two motors. The coordinate is diagonal to the deflection points of the Y-axis.
Advantage: Only small weights are moved, thus enabling high accelerations to be achieved.

Fitting position:
As required. Max. length and width 3.000 mm.

Carriage mounting:
By T-slots.

Unit mounting:
By T-slots or tapped holes in the bearing block, mounting sets.

Belt type:
HTD with steel reinforcement, no backlash when changing direction, repeatability: ± 0,1 mm.
