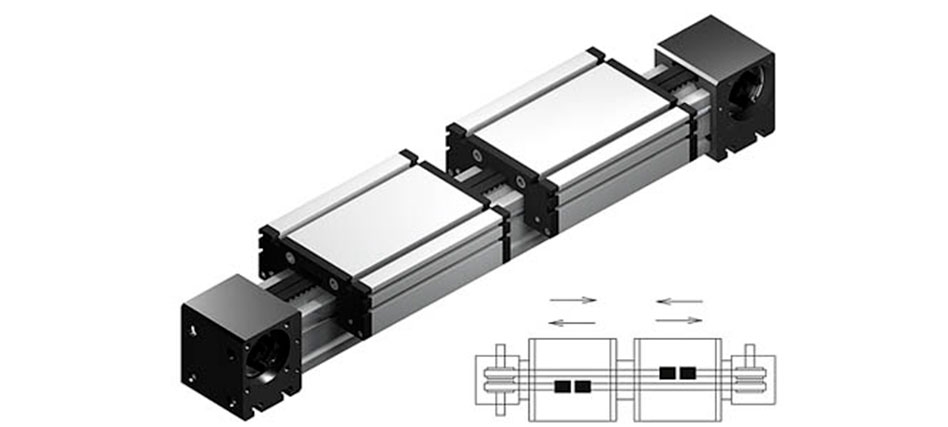

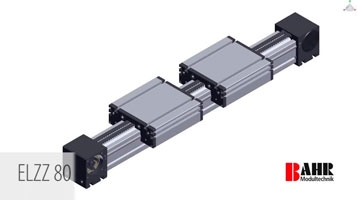

Positioning system ELZZ.

Same function as ELZ, but each carriage is provided with a separate drive so that they can be moved individually. The toothed pulleys are divided in the centre and have separate bearings, so that two belts running parallel are each connected with one carriage.

Sizes: 60, 60S, 80, 80S, 100, 125

Repeating accuracy:
± 0.1 mm

Travel speed:
max. 5 m/s

Function:
Same functions as ELZ, but each carriage can be moved separately by its own drive. This unit has twin pulleys, which run on separate bearings, and two independent, parallel drive belts, one for each carriage.

Fitting position:
As required. Max. length 4.000 mm without joints.

Carriage mounting:
By T-slots.

Unit mounting:
By T-slots or tapped holes in the bearing block, mounting sets.

Belt type:
HTD with steel reinforcement, no backlash when changing direction, repeatability ± 0,1 mm.
