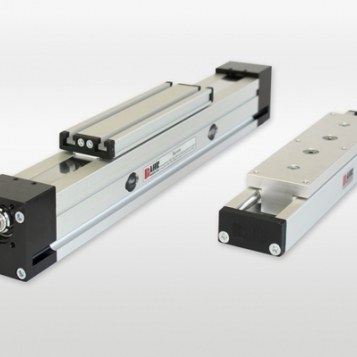

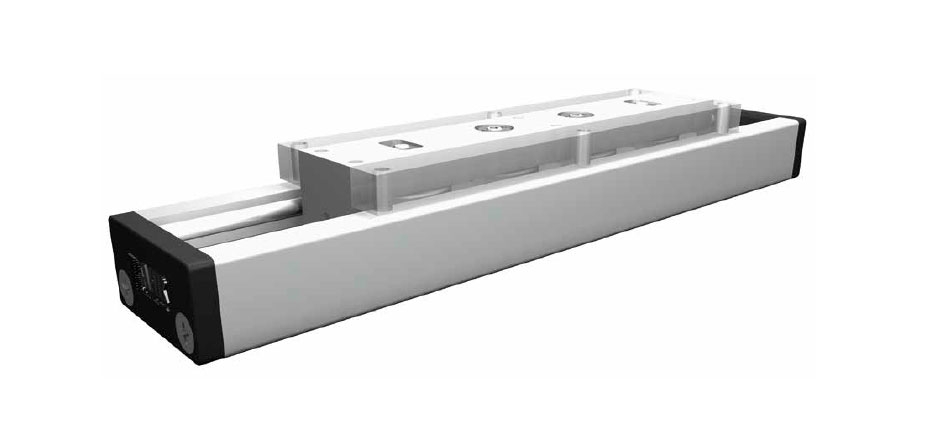

Positioning system UL.

Mechanical linear unit with internal roller guide.

Sizes: 40, 60, 80

Travel speed:
max. 7 m/s

Function:
Very low building roller system achieved by an aluminium guide body with integrated, hardened steel guide rods. The carriage, which has internal linear ball bearings that can be adjusted free of play, moves along the body.

Fitting position:
As required, max. length 6.000 mm.

Carriage connection:
By tapped holes

Unit mounting:
Afterwards by holes or tapped holes
