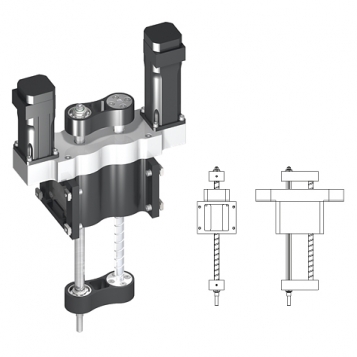

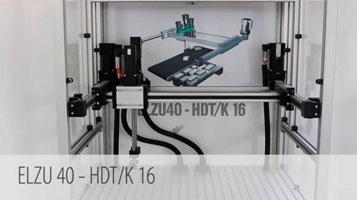

Positioning system HDT/K 16.

Combined lifting/rotating system.

Repeating accuracy: ± 0.1 mm

Function:
Combined lifting/rotating unit, in which a rotating motion of the leading nut is transferred into a linear movement.
A splined shaft is mounted parallel to the spindle and serves in a double function both as a guide and as a transfer element for a rotating motion of a gripper or tool that is mounted on the pivot of the splined shaft.

Fitting position:
As required. Max. length size HD 16 = 600 mm

Unit mounting:
By bores, mounting sets.
