Positioning system LLR.

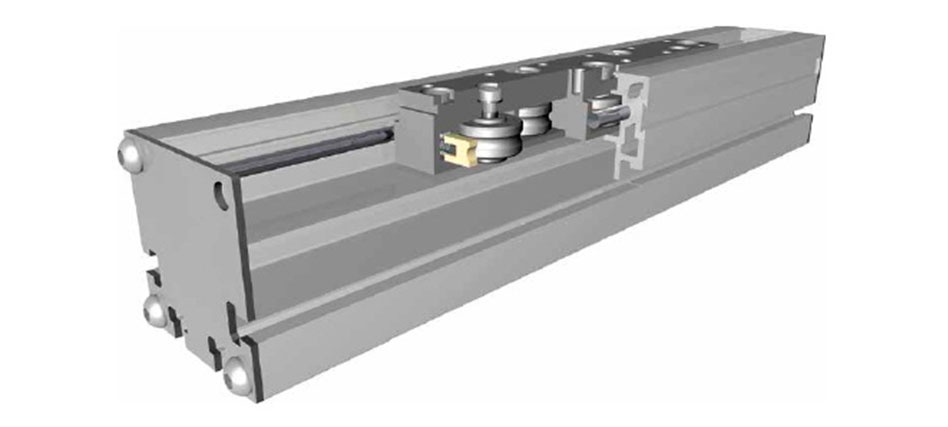

The guide body consists of an aluminium square profile, with an integrated roller guide. This roller guide can be driven by a pneumatic cylinder or other additional drives or it serves as a load carrying slide unit.

Roller guide | without drive

Size: 60, 80

Function:
The guide body consists of an aluminium square profile, with an integrated roller guide. This roller guide can be driven by a pneumatic cylinder or other additional drives or it serves as a load carrying slide unit.

Fitting position:
As required. Max. length 6.000 mm without joints.

Carriage mounting:
By tapped holes.

Unit mounting:
By T-slots and mounting sets. The linear axis can be combined with any T-slot profile.

Belt performance:
HTD with steel reinforcement, no backlash when changing direction, repeatability ± 0,1 mm.

Carriage support:
The carriage runs on 5 rollers which can be adjusted and serviced at each central servicing position.
Two grease nipples at the carriage enable relubrication of the positioning system.
