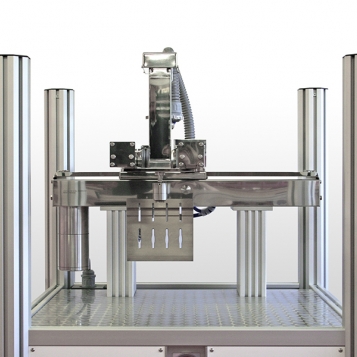

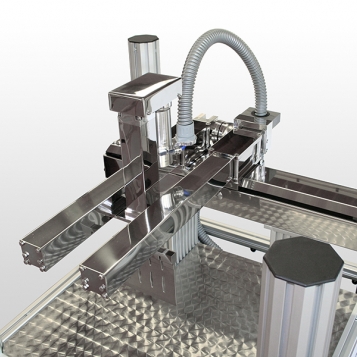

Positioning system LLZE

Function like LLZ 60, but with a stainless steel casing and components.

Size: 60

Repeating accuracy:
± 0,1 mm

Velocity:
v ≤ 6 m/s

Function:

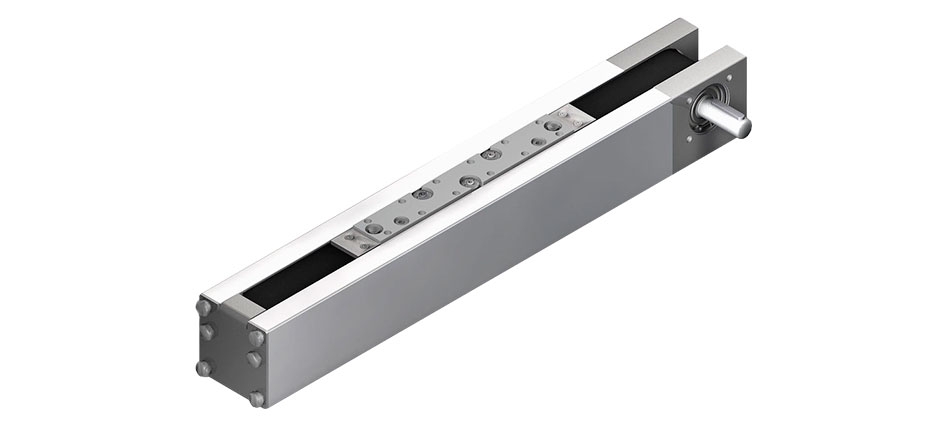

This unit consists of a square aluminium profile with an integrated roller guide and is covered by a stainless-steel sheet (thickness 0.37mm, material 1.4301). The carriage is moved by means of an internal rotating toothed belt. On one end there is a pulley block with shaft(s). On the opposite end there is a plate with a retensioning device for the toothed belt.

Fitting position:
As required. Max. length 3.000 mm without joints.

Carriage mounting:
By tapped holes.

Unit mounting:
By T-slots and mounting sets, bores through the cover. The linear axis can be combined with any T-slot profile.

Belt performance:
HTD with steel reinforcement, no backlash when changing direction, repeatability ± 0,1 mm.

Carriage support:
The carriage runs on 5 rollers which can be adjusted and serviced at each central servicing position. Two grease nipples at the carriage enable relubrication of the positioning system.
