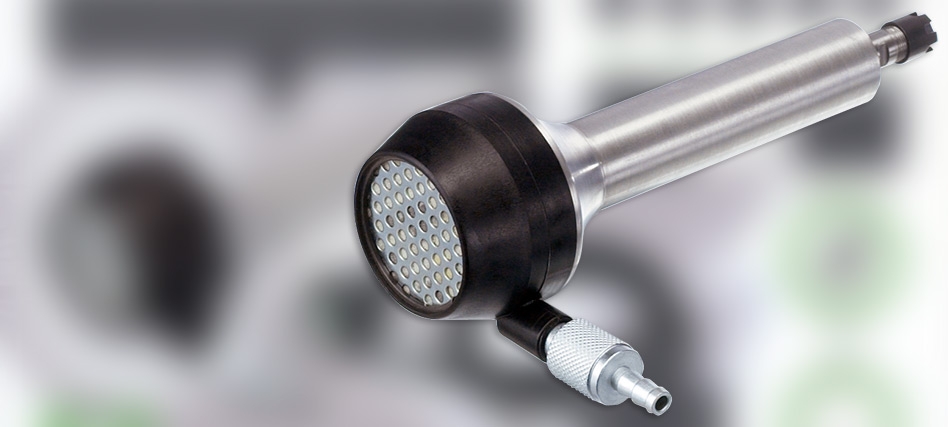

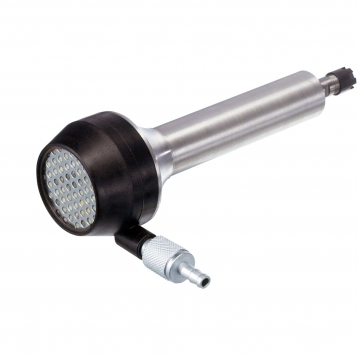

High precision drilling unit BE 11.

BE11 precision drilling/grinding unit with a basic design based on a patented air-driven turbine motor. The drive unit is powered without intermediate gears and features variable speed control up to 80 000 rpm. A special high-speed precision bearing makes the drilling unit extremely quiet with a sound level of 67 dB (A). BE 11 / HFS 100 is designed for lubrication- free operation.

Facts:
Power 80 [W]
Speed (idle) 80 000 [rpm]
Torque* 0.02 [Nm]
Min CCSS** 54 [mm]
Run-Out***

Functions:
80 000 rpm
Precision unit for drilling, deburring etc
Highly stable bearing system
Low noise level (67 dB(A))
Also available as high speed grinder (HFS100), which includes a hose suitable for manual handling of the unit.

Necessary components
Chucks
Collets
Limit switches

Accessories
Multi-spindle heads
Controls
