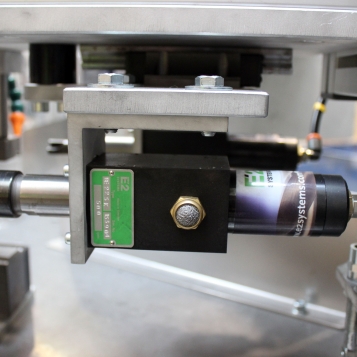

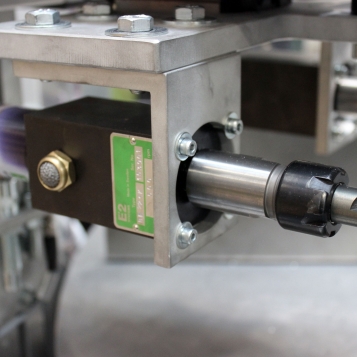

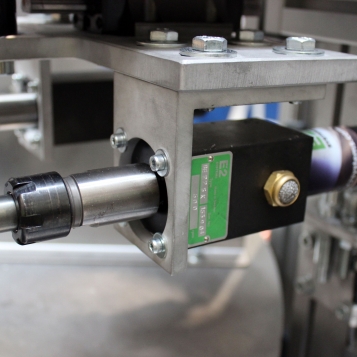

Pneumatic Drilling Unit BE 22 SK.
Marca
The BE 22 SK consists of an air motor, a gear box and a body. The design is compact as well as robust. BE 22 SK comes in a wide range of speeds, and is available for lubrication-free operation.
Facts:
Speed (idle) 500–22 000 [rpm]
Torque* 9.9–0.25 [Nm]
Min CCSS** 45 (MSH: 11) [mm]
Run-Out***
Functions:
Sturdy and compact design
Wide range of rpms
Directed exhaust
Chuck alternatives up to Ø 20 mm
Is available in counter clockwise rotation
Necessary components
Chucks
Collets
Limit switches
Accessories
Multi-spindle heads
Controls
