Pneumatic drilling unit BE 33 SK.
Marca

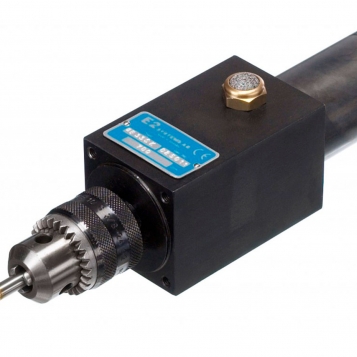

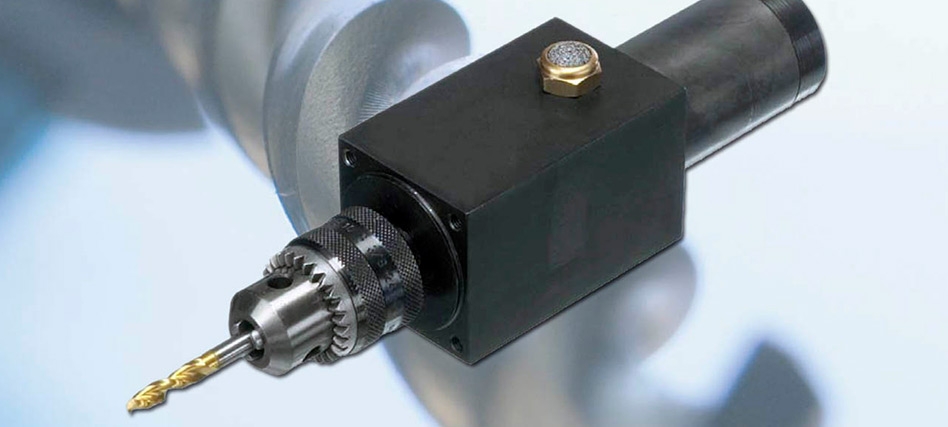

The BE 33 SK consists of an air motor, a gear box and a body. The design is compact as well as robust. BE 33 SK comes in a wide range of speeds, and is available for lubrication-free operation.
Facts:
Power 360 [W]
Speed (idle) 500–21 000[rpm]
Torque* 12.6–0.37 [Nm]
Min CCSS** 50 (MSH: 11) [mm]
Run-Out***
Functions:
Sturdy and compact design
Wide range of rpms
Directed exhaust
Chuck alternatives up to Ø20 mm
Is available in counter clockwise rotation
Necessary components
Chucks
Collets
Limit switches
Accessories
Multi-spindle heads
Controls
