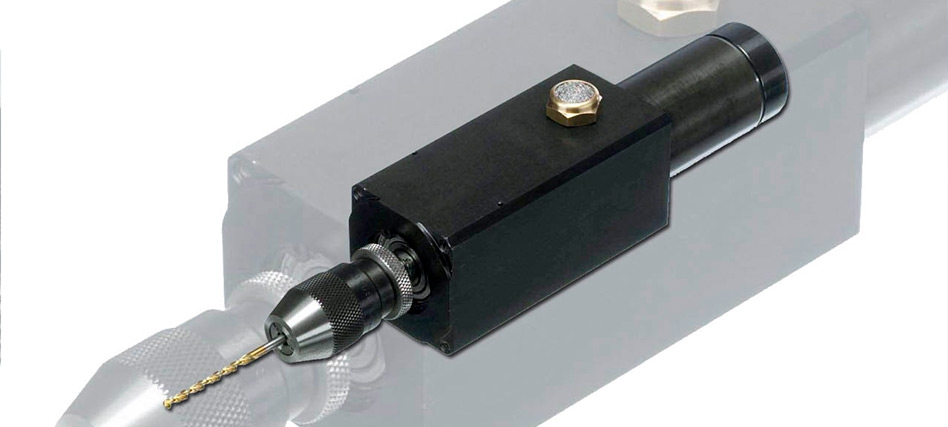

Pneumatic Precision Drilling Unit BEP 22 SK.
Marca
The BEP 22 SK is a precision drilling unit, equipped with a precision chuck. Thanks to separate and double ball bearings run-out amounts to a maximum of 0.01 mm. Its design is compact as well as robust. The BEP 22 SK comes in a wide range of speeds, and is available for lubrication-free operation.
Facts:
Speed (idle) 2200–22 000 [rpm]
Torque* 2.4–0.25 [Nm]
Min CCSS** 45 [mm]
Run-Out***
Functions:
High precision
Sturdy and compact design
Wide range of RPMs
Directed exhaust
Necessary components
Chucks
Collets
Limit switches
Accessories
Multi-spindle heads
Controls
