Packaging

When it comes to handling packaged goods, FIPA has just the right solution for every task!

Awareness regarding a product's packaging will change greatly. Sustainability is one of the major trends in the packaging industry. Due to their high recyclability, glass and metal packaging products will increase in use.

Additional new requirements will join the role of packaging in protecting products: extending product shelf life, oxygen resistance, resistance to UV light and moisture along with the desire for custom packaging to act as a corporate “calling card”. Packaging plant manufacturers increasingly rely on construction kits. This increases flexibility and shortens the time-to-market.

In addition to collaboration between humans and robots, an intelligent machine that monitors and optimises these processes also plays an important part here. FIPA's automation solutions follow these trends. For example, with optical systems for robots and grippers that ensure that packages can be reliably picked from an unstructured environment. In the future, more sterilisation procedures will be introduced in the field of medical packaging. The gripper systems must be able to withstand these new substances and the cleaning and sterilisation processes.

Whether you would like to
. palletize or de-palletize products or entire product layers using the FIPA vacuum grippers
. handle flexible packaged or dimensionally stable products using suction cups or
. transport loads manually using the FIPALIFT tube lifter.

Food
Whether it’s for confectionery, baked goods, meat, cheese, fruit or vegetables – a high degree of flexibility and new packaging trends are required in the food industry. With our FDA-compliant vacuum cups and flexible gripper components that are suitable for direct contact with food, we can deliver a wide range of solutions.

Beverage
Extremely fast processes with very high hygiene standards are taken for granted in the beverage industry for the production of bottles, cans and pouch drinks as well as for filling and packing those containers. Our products and solutions ensure stable processes, allowing us to help our customers to achieve fast cycle times.

Pharma
The pharmaceutical industry is subject to specific obligations under drugs legislation. Good Manufacturing Practice, in particular, safeguards production in a pharmaceutical environment to ensure the highest quality and effectiveness of the products. Maximum process reliability and product quality are therefore expected of our components and solutions. We ensure this is the case by means of tests that replicate practice.

Cosmetics
The cosmetics industry has been enjoying an increasing variety of new products and packaging shapes for several years. This requires customized, flexible solutions in the field of vacuum and gripper systems. Cosmetics production processes make particularly high demands of hygiene and safety. We offer high-quality automated solutions based on our experience.

Household Care
Packing units of various sizes with solid, powder or liquid contents filled in plastic bottles, boxes, tubes and bags must be handled both quickly and safely. We have a solution for all of these requirements in our large range of vacuum and gripper components. Automation for clean packaging and safe transport.

Product recommendations for the packaging industry


More Info

Photos

Videos

Downloads

Links
The benefits of FIPA solutions for handling packaging

The benefits of FIPA solutions for handling packaging

. The world's largest range of vacuum cups
. Highly wear-resistant vacuum cups for made from vinyl or Varioflex®, for example for uneven or rough surfaces
. Vacuum gripping systems that are not sensitive to dirt, deal with layered or single products without a gripper change and with minimum maintenance

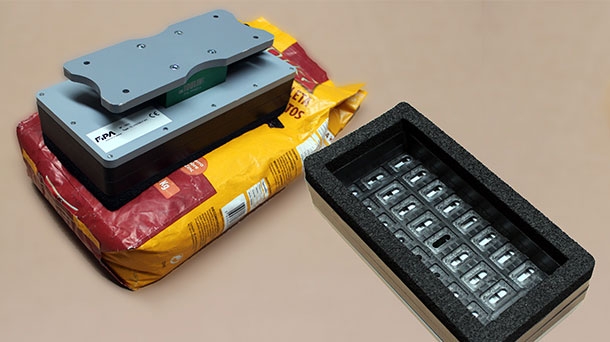

. Bag grippers for products with unstable shapes - for robot-aided or manual handling
. Energy-saving vacuum generators with quick-switching valves - efficient vacuum formation for very short cycle times, e.g. for delta robots such as FlexPicker™
. Vacuum cups and gripper systems for direct contact with foodstuffs meet the requirements of the FDA and EC 1935/2004
. Specialised vacuum cups for products such as pralines and eggs
. Customised gripper solutions, e.g. for sensitive products, such as croissants, from a lot size of 1

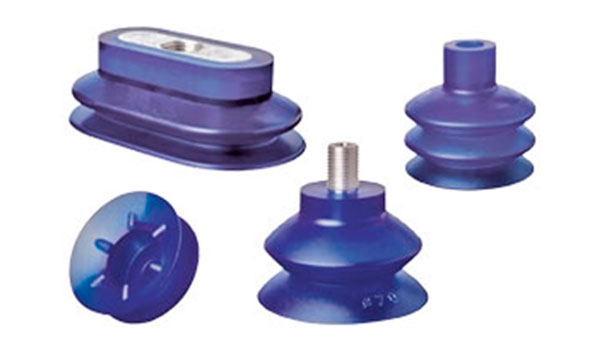

Vinyl bellows cups, 1.5 and 2.5 folds - SBV

Vinyl bellows cups, 1.5 and 2.5 folds - SBV

. Wear-resistant material - long service life
. Good adaptation to curved or flexible product surfaces
. 1.5 folds - SBV 1: Diameter: 5 - 70 mm
. 2.5 folds - SBV 2: Diameter: 4 - 50 mm

Vinyl oval bellows cups - SO-BV

Vinyl oval bellows cups - SO-BV

. Compensates for height differences and enables gentle set down on the workpiece
. Good adaptation to curved or flexible product surfaces
. Wear-resistant material - long service life
. Dimensions: 35x28 - 100x55 mm

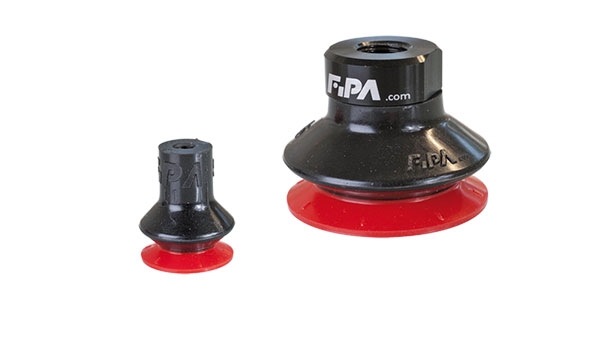

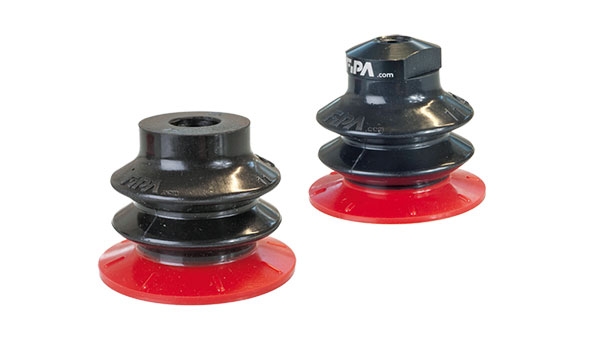

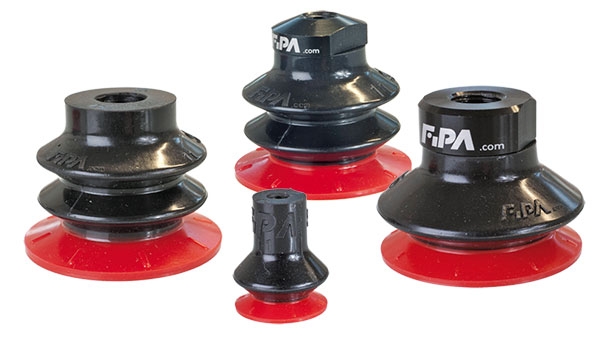

Varioflex® bellows cups, 1.5 and 2.5 folds - SP-BX

Varioflex® bellows cups, 1.5 and 2.5 folds - SP-BX

. Excellent service life and superior retention force
. Special polyurethane in two degrees of hardness (60° Shore A black, 30° Shore A red)
. Soft lip for optimal sealing
. Long service life and low wear
. Short cycle times and high process reliability
. Low marking

Varioflex® bellows cups 1.5 folds - SP-BX1

Varioflex® bellows cups 1.5 folds - SP-BX1

. Good adaptation to uneven product surfaces
. Supports (Ø 20 - 75 mm) stabilise the product
. Diameter: 15 - 75 mm

Ventosas de fole Varioflex®, de 2,5 foles – SP-BX2

Ventosas de fole Varioflex®, de 2,5 foles – SP-BX2

. Good adaptation to uneven product surfaces
. Large range of height and angle adjustment
. Diameter: 15 - 75 mm

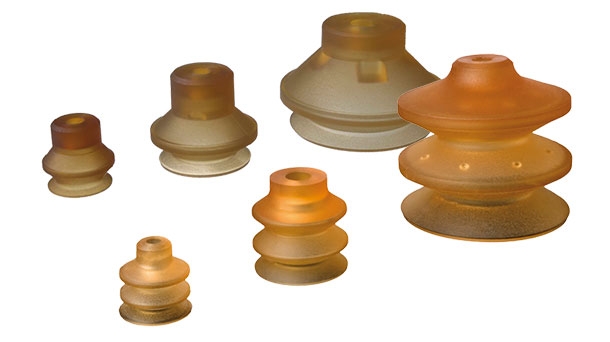

Vulkollan® bellows cups, universal, 1.5 to 2.5 folds - SBU-VU

Vulkollan® bellows cups, universal, 1.5 to 2.5 folds - SBU-VU

. Sturdy vacuum cup with minimal wear and a long service life - thereby offering long maintenance intervals
. Short cycle times thanks to very good retraction
. Diameter: 9 - 62 mm

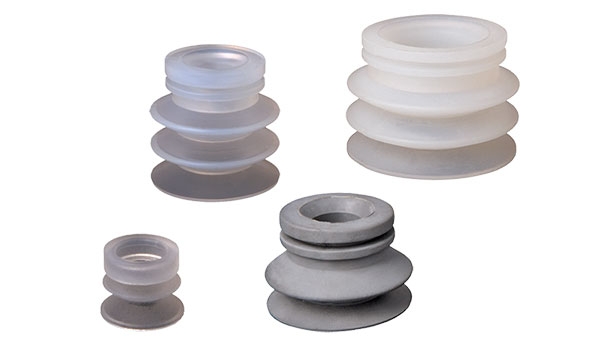

Bellows vacuum cups 1.5 and 2.5 folds with special connection for standard packaging machines - SV-SB

Bellows vacuum cups 1.5 and 2.5 folds with special connection for standard packaging machines - SV-SB

. Smooth suspension for gentle product handling
. Available in silicone (FDA-approved) and NR
. Diameter: 16 - 40 mm

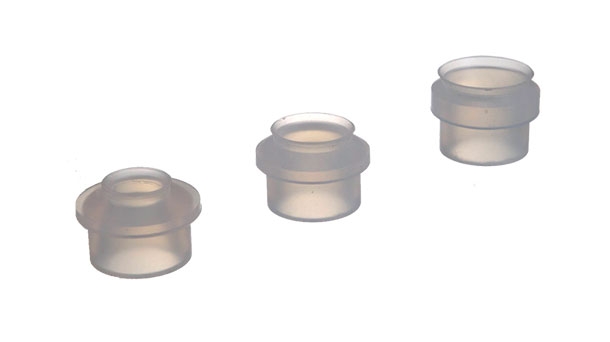

Silicone flat cups (FDA-approved) for use with tubes - SV-T

Silicone flat cups (FDA-approved) for use with tubes - SV-T

. With straight or conical opening
. Direct machine connection through pipe mounting
. Handling of cans or tubes
. Diameter: 11 - 46 mm

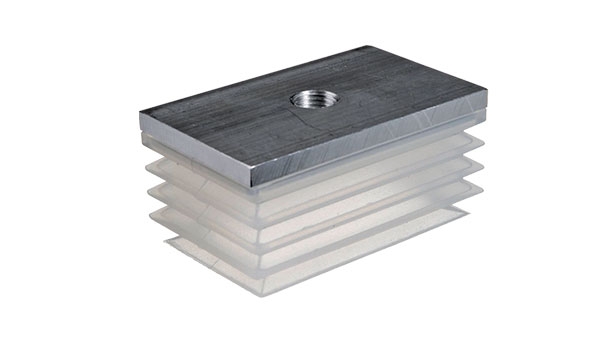

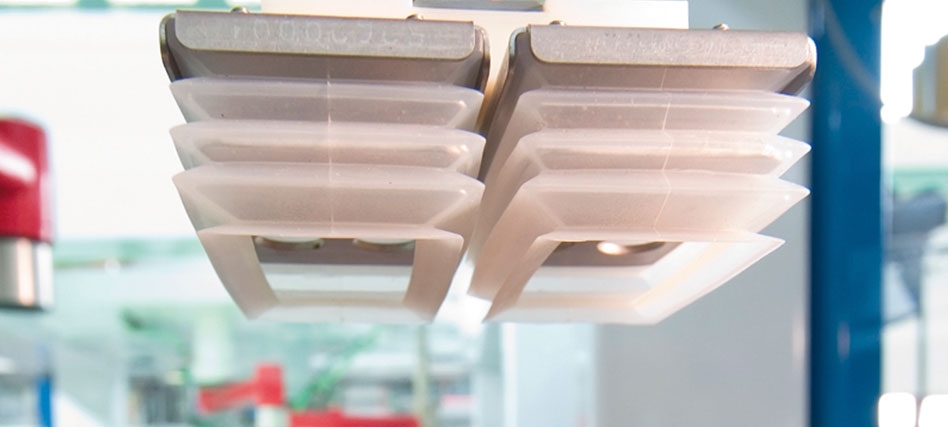

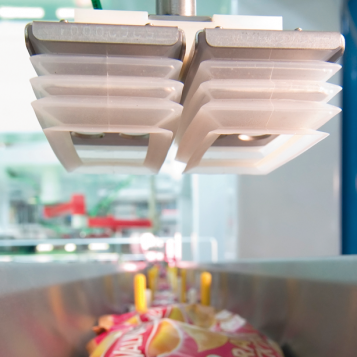

Silicone rectangular bellows cups, 2.5 and 3.5 folds - SV-RB

Silicone rectangular bellows cups, 2.5 and 3.5 folds - SV-RB

. Handling of flexible parts and workpieces with uneven surfaces or products with flexible outer packaging
. FDA-approved vacuum cup material
. Dimensions: 52x25 - 80x50 mm

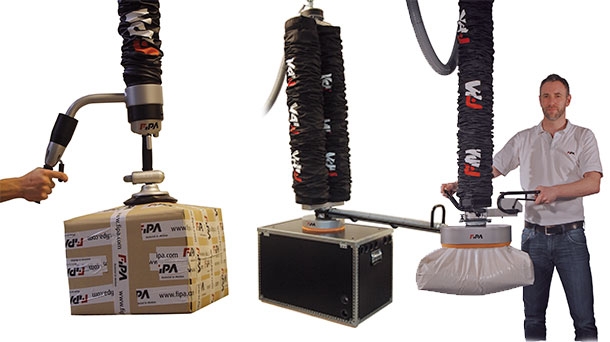

FIPALIFT tube lifter

FIPALIFT tube lifter

. No need of complicated slinging of the load
. Processes will be quicker and more efficient
. No fatigue of employees from lifting heavy loads
. Applications: e.g. Handling sacks, packages, crates, boxes and containers in shrink-wrap in warehousing and logistic
. Three available versions: FIPALIFT Expert / FIPALIFT Smart / FIPALIFT Basic

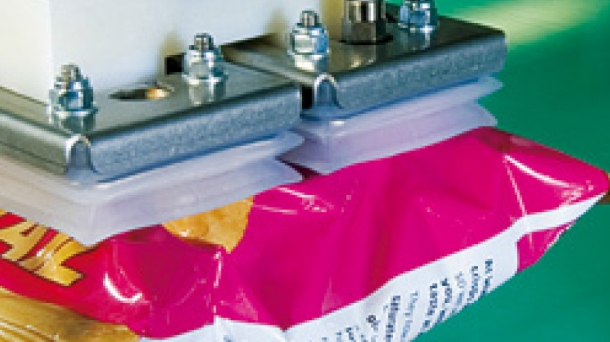

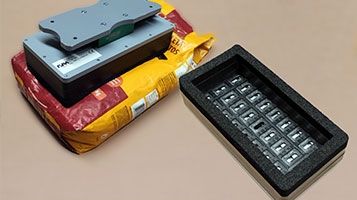

Vacuum gripping systems for Packaging

Vacuum gripping systems for Packaging

. Handling of individual products or sites without gripper changing and regardless of workpiece positioning
. Integrated vacuum generation or external compressor for use with particularly air-permeable workpieces

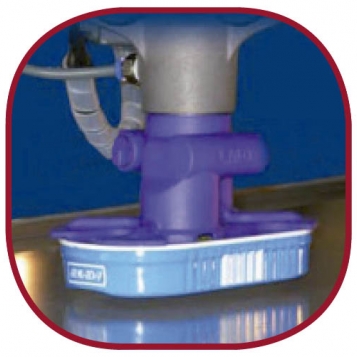

Customized grippers

Customized grippers

Insert grippers
. Gripper tools for insert components such as threaded bushes
. Gripper shape can be matched exactly to the component to be gripped
. Flexible control systems available, e.g. with pneumatic dual-action or vacuum-operated
. Simple integration into the overall system using gripper components such as spring levelers or clamping elements

PA grippers
. PA grippers are individually customised according to customer demands

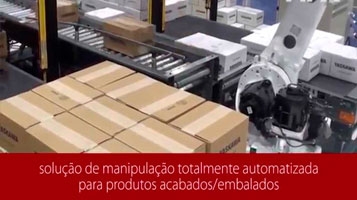

Ventosas varioflex para automação na indústria de embalagens [FIPA]

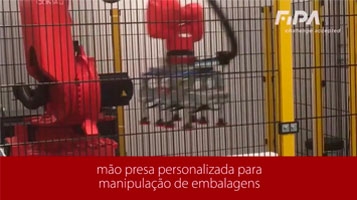

Mão presa personalizada para manipulação de embalagens [FIPA]

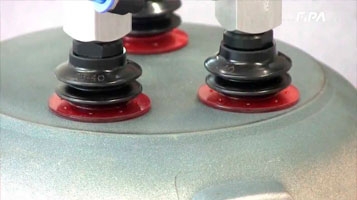

Ventosas Varioflex [FIPA]

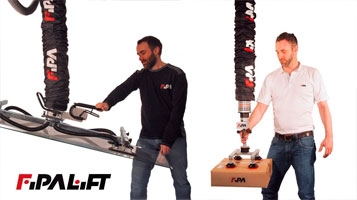

Tecnologia de elevação FIPALIFT [FIPA]
Garras de vácuo para sacos FIPA [FLUIDOTRONICA]

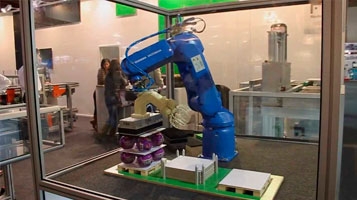

Fluidotronica na EMAF 2012 - Exponor [robô]
