Accessories for extrusion systems.

Marca

Discover the range of accessories for FIPA profile systems.

Space-saving components for gripper systems are in demand. The FIPA swivelling unit allows for the pneumatically controlled lateral positioning of gripper components when space is limited.

The FIPA centering unit ensures the highly precise alignment of grippers and injection molding tools.

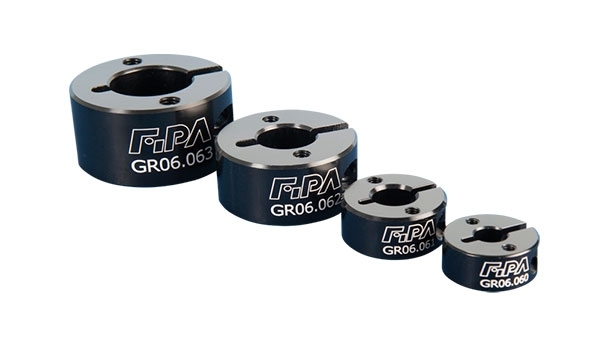

Gripper components with clamp shaft mounting can be integrated on end-of-arm tooling plates (EOAT) with high load capacity using the clamping rings. Clamping rings are available in four different diameters.

More Info

Photos

Downloads

Links

Mais Info

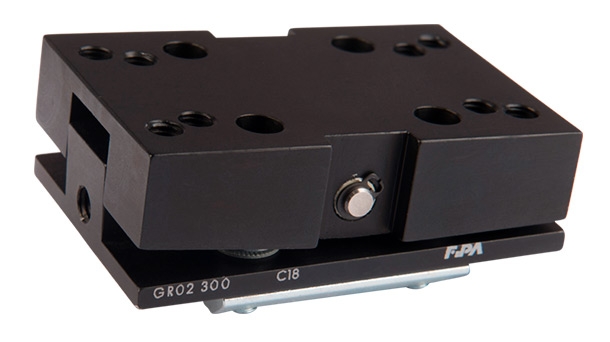

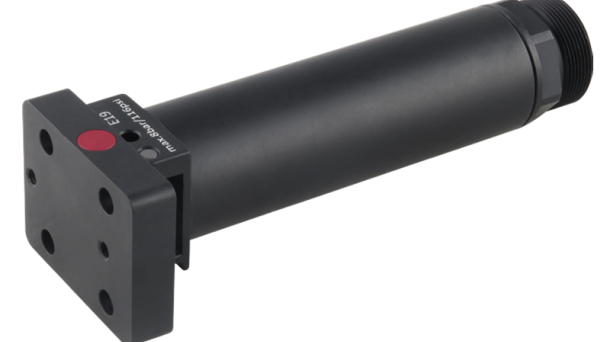

Swivelling unit – universal, double-acting

. Space-saving lateral application of vacuum cups to the workpiece
. Double-acting, controlled swivel movement and short duty cycles

More information

Mais Info

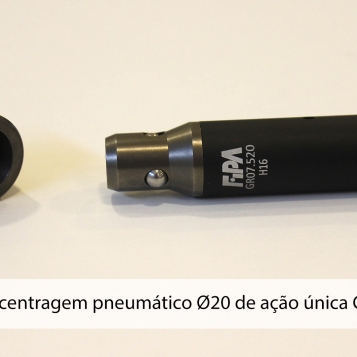

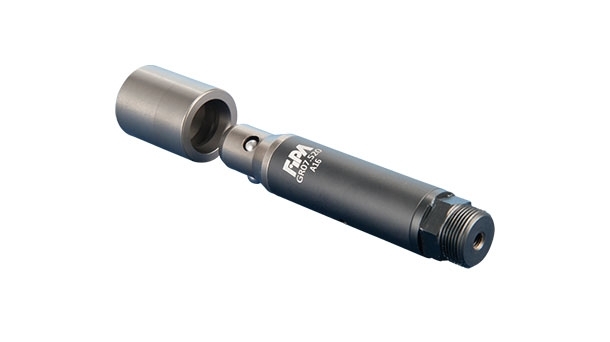

Pneumatic centering units

STRONG HOLDING FORCE
. Single-acting centering element for high-precision demolding
. Strong holding force in the coupled system
. Guiding sleeve embedded in the mold
. Optional position monitoring (locked/unlocked) via PNP/NPN sensors
. Sensor is fixed to centering unit via mounting bracket GR07.520S clamping diameter 20 mm
. PNP and NPN sensors: C-Nut, straight: GR04.198, GR04.198/NPN

More information

Mais Info

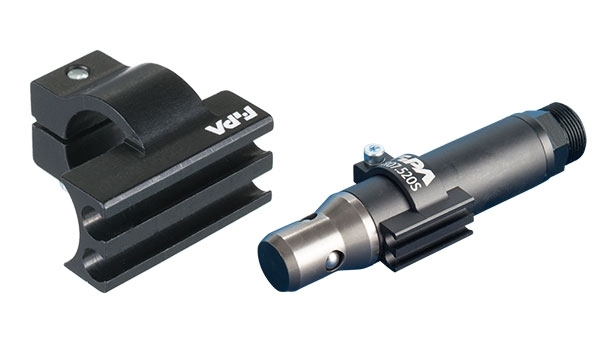

Sensor mounting bracket for centering unit

. Mounting bracket for monitoring locking stage (locked/unlocked)

More information

Mais Info

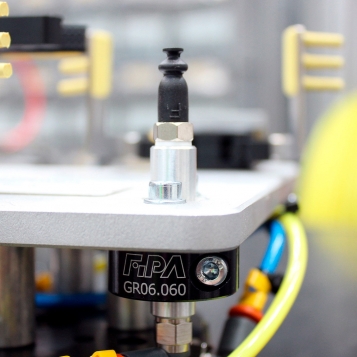

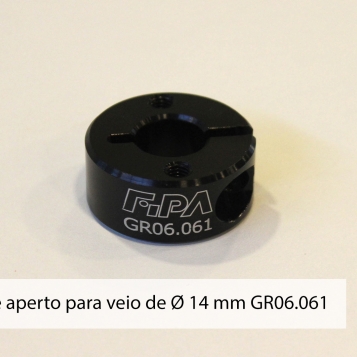

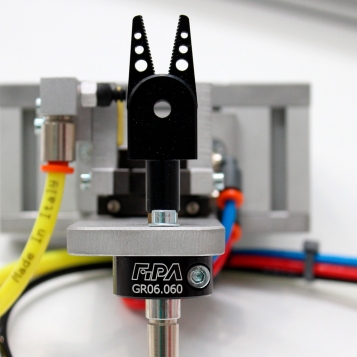

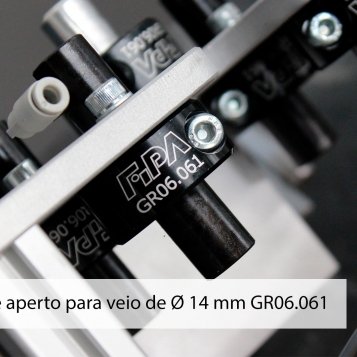

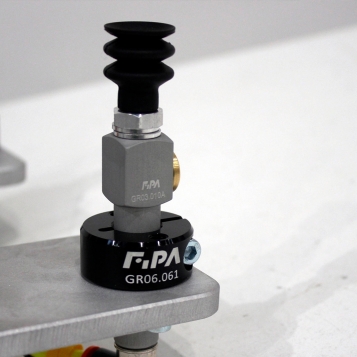

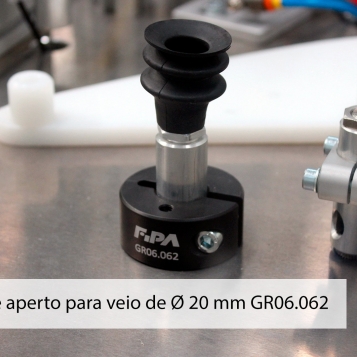

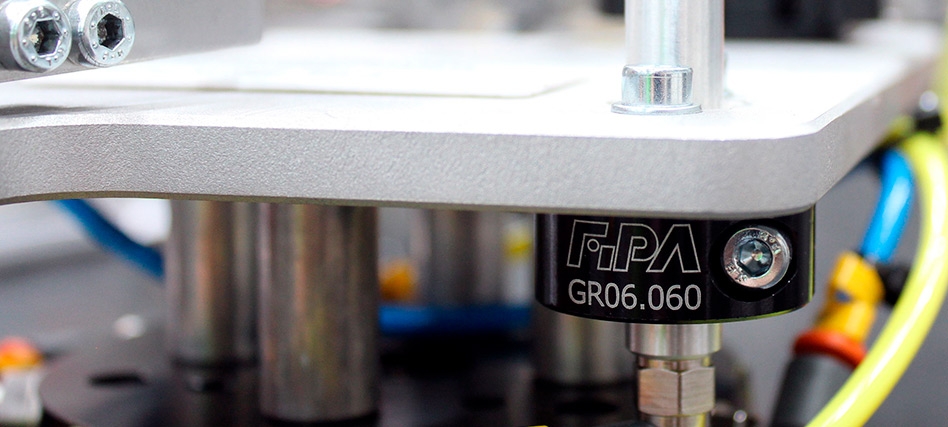

Clamps for Plate-based EOAT

SUITABLE FOR PLATE-BASED EOAT
. Clamps for mounting gripper components to plate-based EOAT

More information

Mais Info

90° Swivelling unit for small gripper systems

. Single acting, spring return
. Optionally available sensors GS04.005 (2x PNP) and GS04.006 (2x NPN) can be taught with two switching points, output M8 4-pole
. Suitable connection cable (5 m): 20.501

More information

Fotografias

Downloads

Extrusion system brochure

Links

More information
