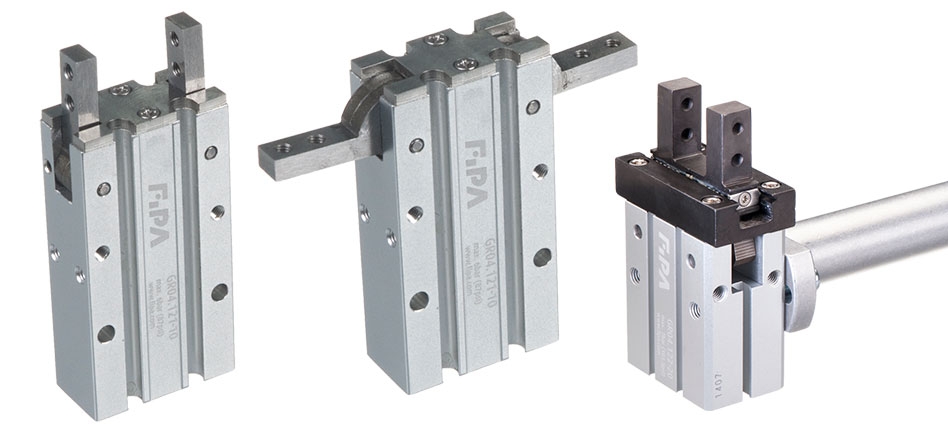

Upon request, FIPA is able to manufacture custom gripper jaws for optimal adaptation to your application. Optional sensors monitor the piston position and thus the gripping process.

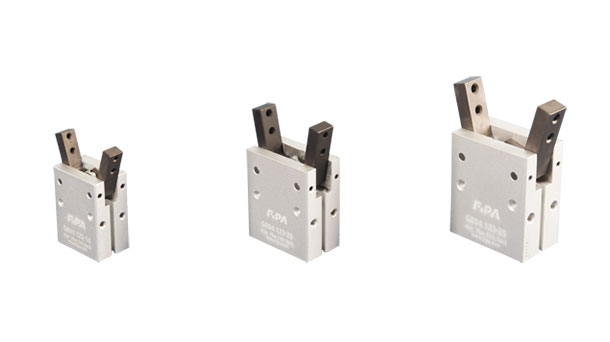

. High gripping force with high gripping precision
. Gripping of objects located behind large undercuts; clamping and assembly of parts
. Suitable for dusty environments due to dust protection seals
. Double-acting, short duty cycles
. Body and jaws made of high-strength aluminum alloy
. Versatile use with customized gripper jaws
. Optional parts monitoring by detection of piston position
. Medium: filtered and oiled/unoiled air
. PNP and NPN sensors:
- C-slot (90° angle): GR04.202P, GR04.202N
- C-slot (straight, short design): GR04.280P, GR04.280N
. Extension cable for sensors:
- 20.503: 3-pole M8, length 2,500 mm, open wire
- 20.570: 3-pole M8, length 1,500 mm, end with plug 3-pole M8

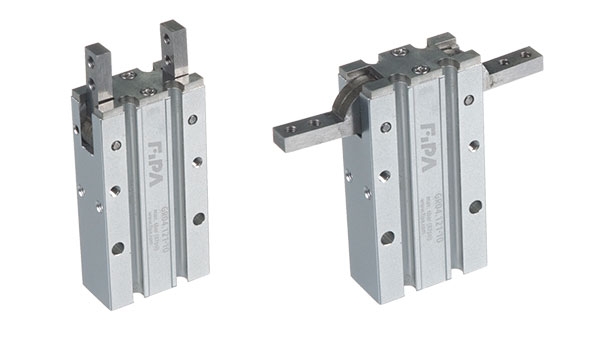

. Grippers for undercuts, clamping, mounting and pick & place applications
. Double-acting: Inside/outside gripping and short duty cycles
. Body and jaws made of high-strength aluminum alloy
. Sensors for monitoring gripper action via piston position optionally available
. Medium: filtered and oiled/unoiled air
. PNP and NPN sensors:
- T-slot (straight) for sensors: GR04.203P, GR04.203N

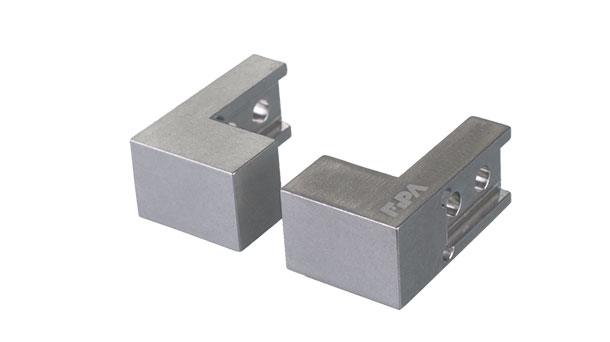

. Aluminum blanks for customized jaws
. Screws included in scope of delivery

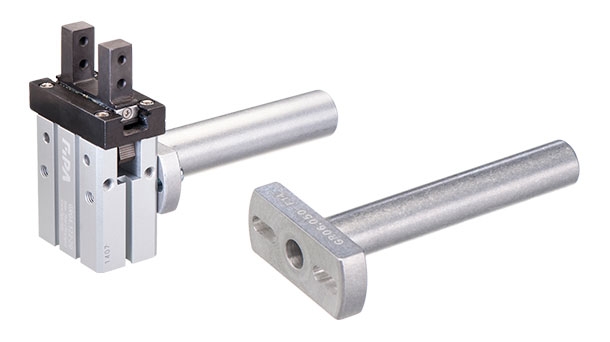

. Brackets for mounting parallel or angular grippers to extrusions
. Compatible with many brands of grippers due to slotted mounting holes
