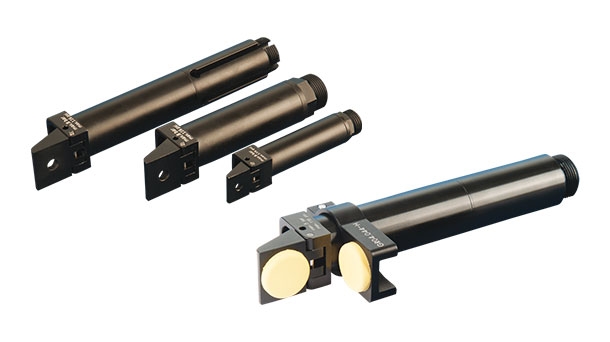

These grippers are available with 35°, 90º and 95° angle settings as well as optional HNBR elastomer pads for gentle gripping.
. Single-acting, spring return
. Body and jaws made of high-strength aluminum alloy
. Optional sensors GS04.005 (2x PNP) and GS04.006 (2x NPN) with teach-in of two switching points, plug M8 4-pin
. HNBR pads/elastomers can be easily replaced
. Spare part kits each contain five elastomers
. The max. using temperature of the gripper is 70°C (158°F)
. Optional connecting cable 20.501

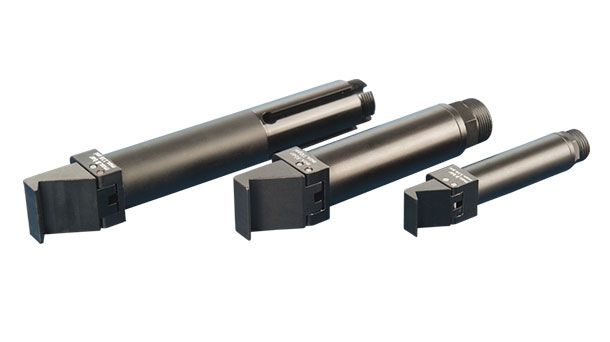

. Single-acting, spring return
. Body and jaws made of anodized aluminum alloy

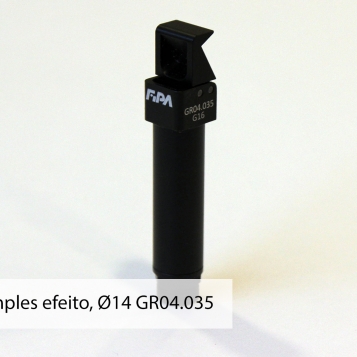

. GR04.035 & GR04.041: optional sensors for monitoring piston position
. Single-acting, spring return
. Body and jaws made of anodized aluminum alloy

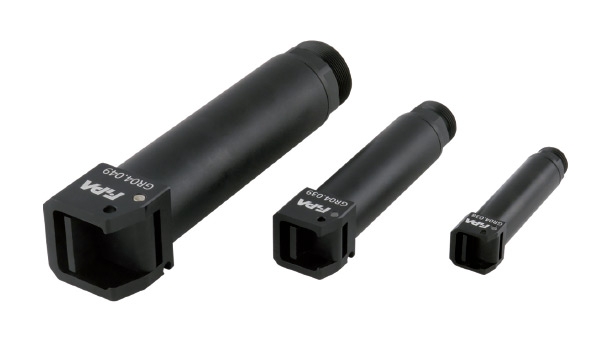

. GR04.039 & GR04.049: optional sensors for monitoring gripper finger
. Optional Sensors GS04.005 (2x PNP) and GS04.006 (2x NPN) with teach-in of two switching points, plug M8 4-pin
. Optional connecting cable 20.501
. Single-acting, spring return
. Body and jaws made of anodized aluminum alloy

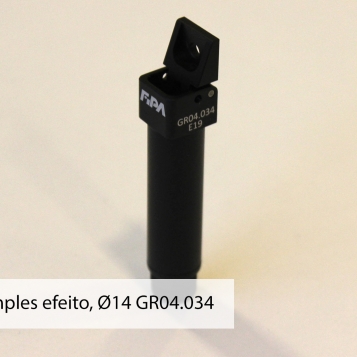

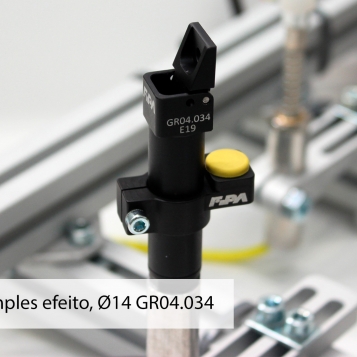

. GR04.034 & GR04.040: optional sensors for monitoring piston position

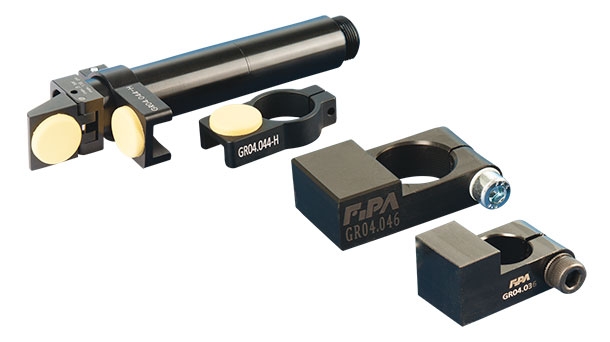

. Gripper finger with central hole for mounting optional HNBR pad
. Made of POM
. Can be used in conjunction with guide elements

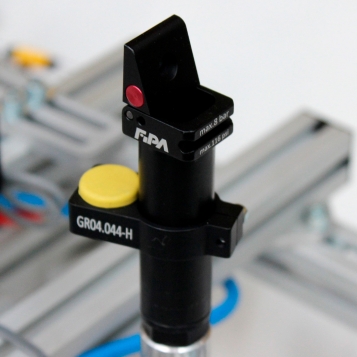

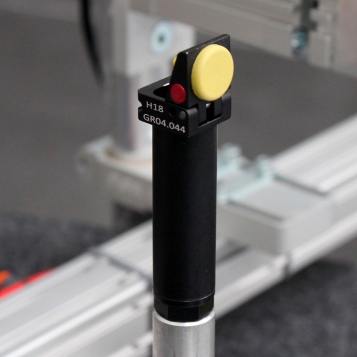

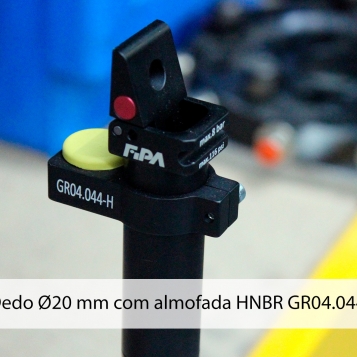

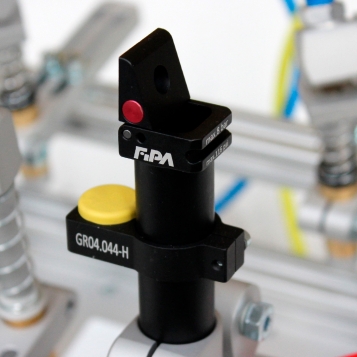

. GR04.034-H & GR04.044-H: with HNBR pads for gentle gripping of sensitive components, temperature range 0 - 160 °C (32 - 320 °F) for short term contact – up to 30 seconds
. Made of anodized aluminum
