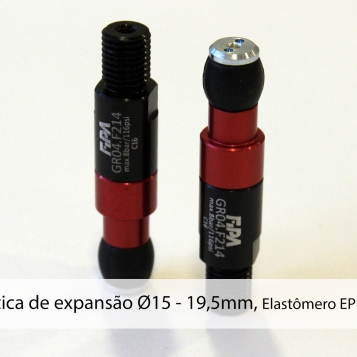

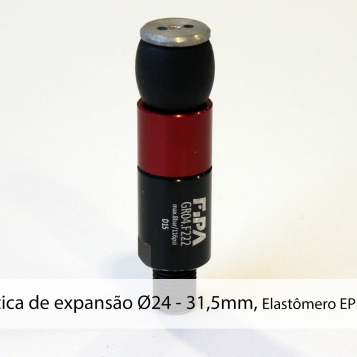

ID grippers.

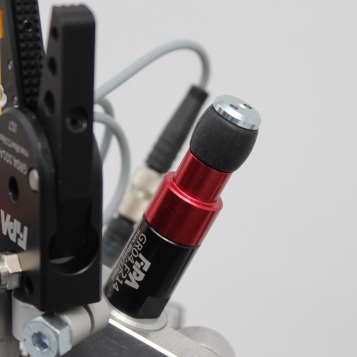

FOOD GRADE GRIPPER HEADS
. Gripping within small recesses
. Expansion grippers for small or lightweight parts
. Compact and lightweight design
. Food grade gripper heads made of polyamide (FDA approved material)
. Body made of high-strength, anodized aluminum
. Gripper heads can be easily exchanged
. Optional monitoring of piston position
. ID grippers from Series GR04.F02-65 come with O-ring (food grade silicone) for improved holding force
. PNP and NPN sensors:
- C-slot (straight): GR04.198, GR04.198NPN

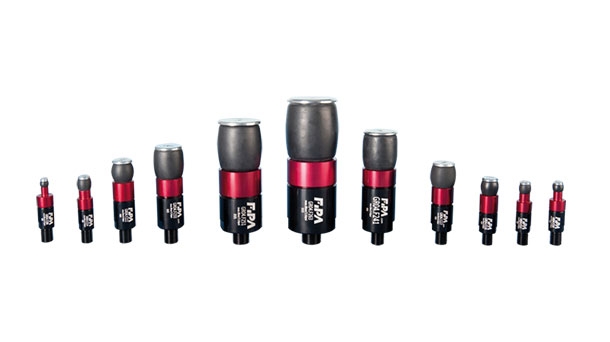

. Single-acting grippers with high holding force
. Gripper bellow expanded by pneumatically driven piston, clamps workpiece at its inner surface
. Ventilation of gripper resets piston and bellow and releases workpiece
. Piston movement adjustable to position of gripped object
. Holding force controlled by feed pressure
. Robust body, made of anodized, high-strength aluminum alloy
. Elastomer bellows available in EPDM or silicone
. Easy and non-destructive exchange of bellows
. Piston movement adjustable to position of gripped object, bellow is not inflated, no risk of bursting

Downward piston movement (workpiece pushed):
. Clamp the black part of gripper body or using optional extension tubes or threaded mounting brackets
Upward piston movement (workpiece drawn):
. Clamp the red part of gripper body

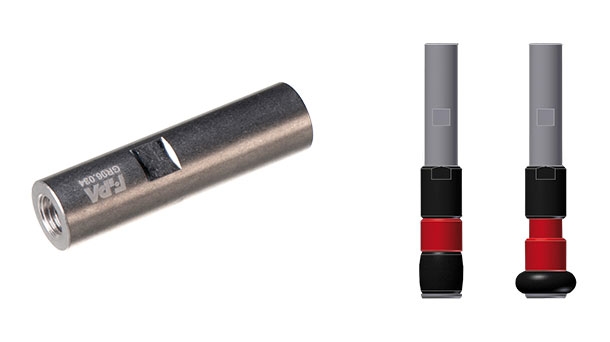

. Extension tubes with rear-side compressed air connection and through hole
. For mounting ID grippers to angle clamps
. Suitable for ID grippers GR04 with index F
. Not compatible with ID grippers with index N

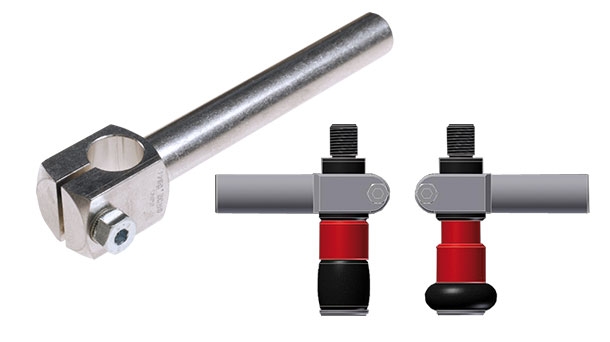

. Mounting brackets for variable angle installation of ID grippers
. Clamping grippers to upper part (red) enables upward movement, workpiece is drawn
. Clamping grippers to bottom part (black) or clamping to extension tube enables downward movement, workpiece is pushed
. Suitable for ID grippers GR04 with index F

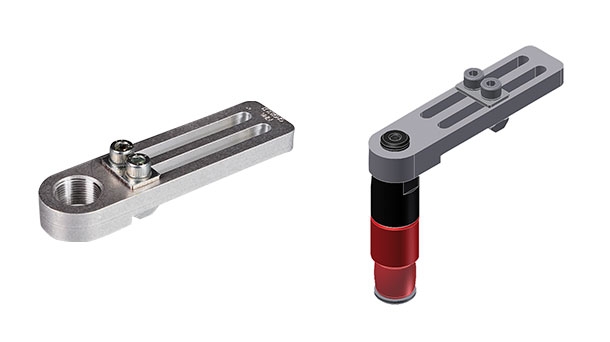

. Threaded mounting brackets for installation the grippers on profiles
. Threaded mounting bracket enables downward movement of piston of ID gripper, workpiece is pushed
. Suitable for ID grippers GR04 with index F
. Slot nuts and mounting screws included in scope of delivery
