Quick-change systems square S.

Marca

FIPA offers the manual S series quick changer in four sizes of the international standardized rectangular shape format.

An easy exchange of the base plate and pneumatic couplings enables the grippers to be changed quickly. Spring-loaded base plates for compensating ejector strokes are available for injection molding. Made of a high-strength anodized aluminum alloy, the four sizes of rectangular changing systems cover a lifting force range of 5 to 40 kg. Optionally, FIPA can supply a stainless steel version of the quick-change systems.

More Info

Photos

Downloads

Links

Mais Info

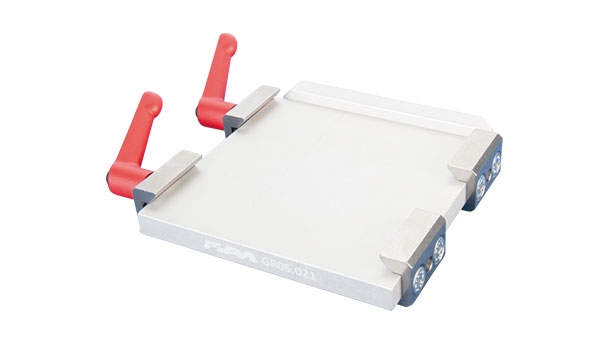

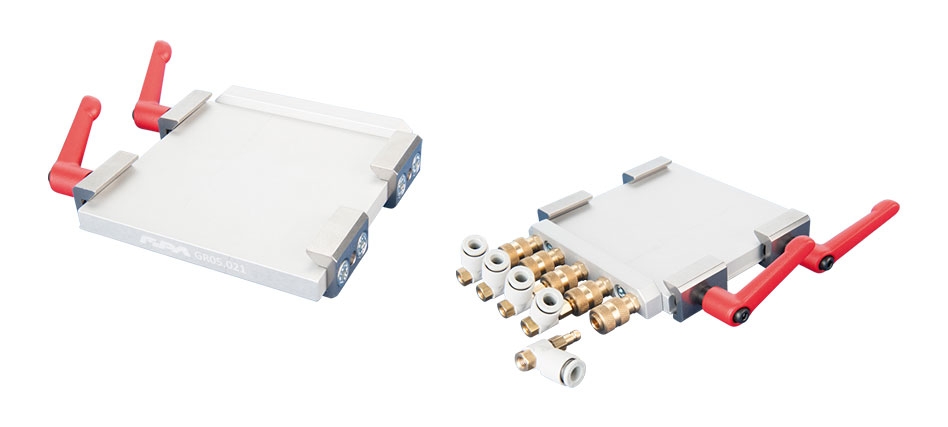

Quick-change systems – square, robot side, without fittings

. Manual interface between robot and gripper system
. Minimized down time due to fast gripper change
. Available in four sizes
. Clamping levers included in scope of delivery
. Base plates and pneumatic connections not included in scope of delivery

More information

Mais Info

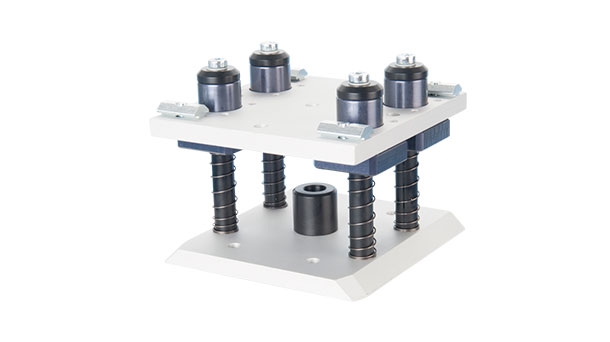

Gripper mounting plates – spring loaded

. Base plate for compensating ejection stroke of molding machine
. High-quality slide bearings ensure accurate guidance
. A second set of springs with higher spring rate included in scope of delivery
. Slot nuts and mounting screws included in scope of delivery

More information

Mais Info

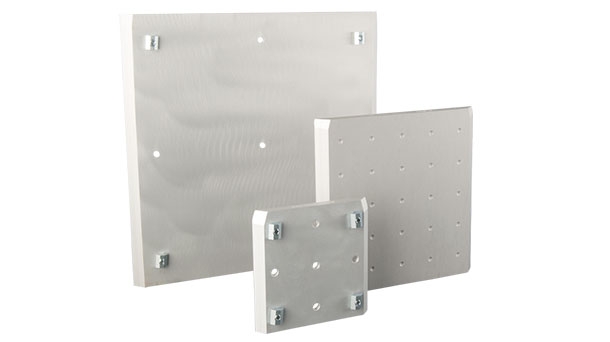

Gripper mounting plates

. Suitable for square quick-change systems GR05.021 to GR05.051
. Base plates with pre-located, center-punched holes enable custom drilling patterns (index -X)
. Slot nuts and mounting screws included in scope of delivery, except for base plates index -X

More information

Fotografias

Downloads

Quick-change systems brochure
