Tube lifters FIPALIFT Basic.

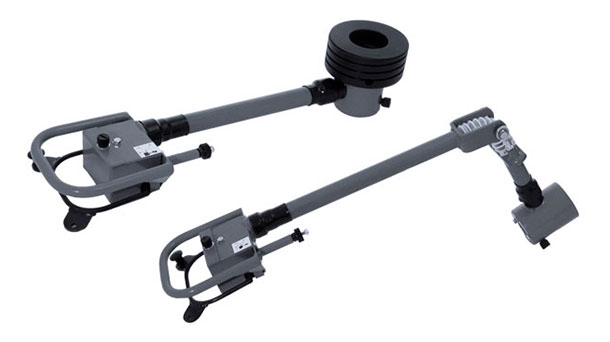

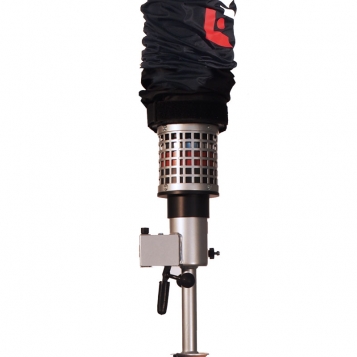

. For handling large and awkward goods you can ask us to fit, as an option, an elongated controller
. This is also available as a rigid version in lengths from 250 to 850 mm and as flexible versions up to a length of 1,400 mm

. The standard versions have the standard control handle, a stroke of 2.50 m and suspension with eyelet
. We offer a wide variety of factory-made options in addition to the standards. These can be seen below in the ”Factory mounted options” table.
. The required vacuum supply, vacuum cups and gripper equipment are not included in the scope of delivery
. Please take note of the combination table ”Combination of lifting tube diameter and pump”. It can be used to establish the best combination for the lifting force that you need.
. We would be pleased to help you with the right system design

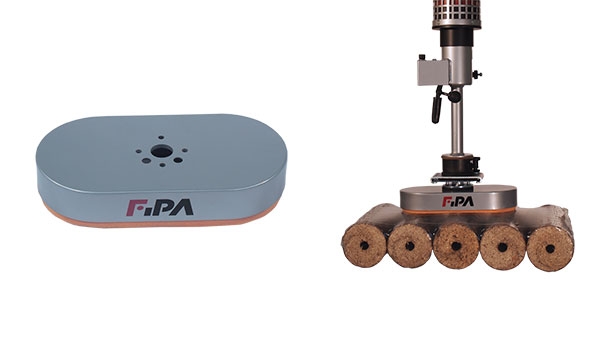

. Suction shells made from sheet metal with sealing foam
. Suitable for handling bags and shrink-wrapped goods and much more
. Sealing foam can be easily replaced without the need for tools
. We would be pleased to provide advice on the selection of suitable vacuum cups and to carry out vacuum tests
. Cups without a safety factor statement must not be used with this lifting tube diameter
. A safety factor of at least 2.5 is necessary for horizontal handling and at least 4.0 for vertical handling

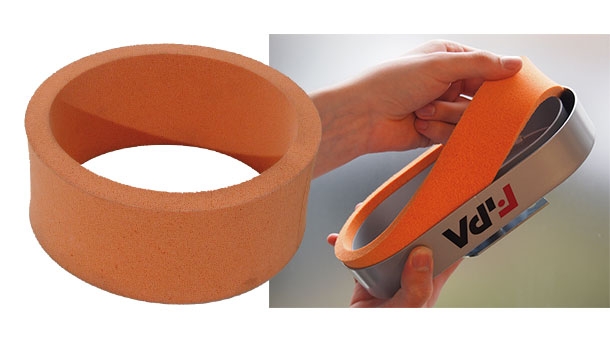

. Easily replaced without the need for tools if worn out
. Simply pull the foam out of the suction shell and slide in the new one

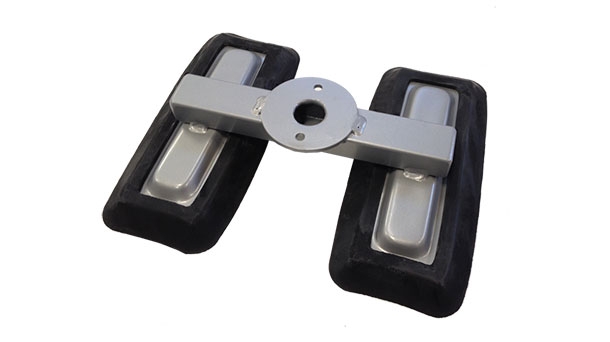

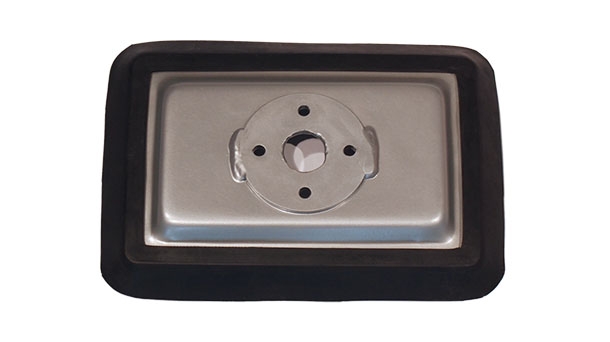

. Rectangular suction plates for direct mounting on the control handle of the FIPALIFT Basic
. Suitable for handling cartons, boxes and smaller flat products
. Steel plate with exchangeable gasket made from natural rubber (NR) black
. Gasket can be easily replaced without the need for tools
. Cups without a statement of safety factor must not be used with this lifting tube diameter
. A safety factor of at least 2.5 is necessary for horizontal handling and at least 4.0 for vertical handling
. The appropriate replacement gaskets are available as accessories for all models

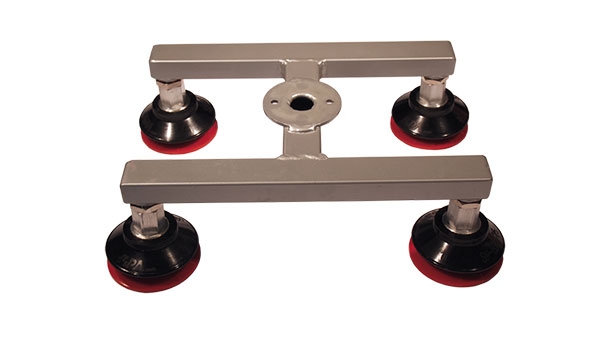

. Small cross beams each having two rectangular suction plates 95 mm x 200 mm
. Suitable for handling large cartons, boxes and medium-sized flat goods
. Cups without a safety factor statement must not be used with this lifting tube diameter
. A safety factor of at least 2.5 is necessary for horizontal handling and at least 4.0 for vertical handling
. The appropriate replacement gaskets are available as accessories for all models

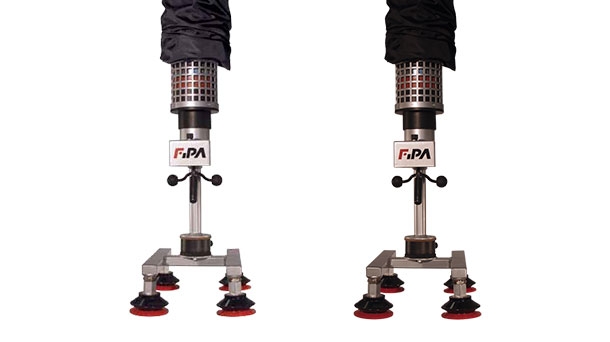

. Small cross beams for use with bellows vacuum cups
. Suitable for handling large cartons, boxes and medium-sized flat goods
. Levels minor unevenness of the surfaces
. Cups without a safety factor statement must not be used with this lifting tube diameter
. A safety factor of at least 2.5 is necessary for horizontal handling and at least 4.0 for vertical handling
. Vacuum cups are not included in scope of delivery, please see accessories for all models

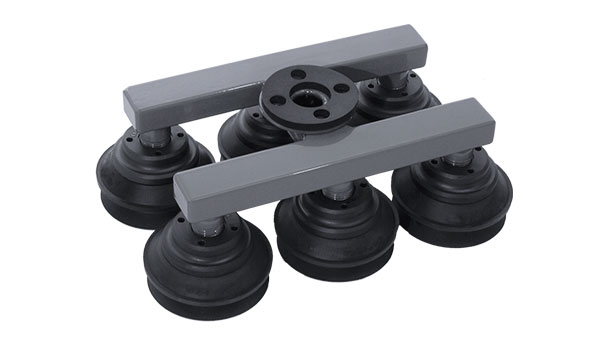

. Small cross beams for use with six bellows vacuum cups Ø 75 mm
. Suitable for handling large cartons, boxes and medium-sized flat goods
. Levels minor unevenness of the surfaces
. Cups without a safety factor statement must not be used with this lifting tube diameter
. A safety factor of at least 2.5 is necessary for horizontal handling and at least 4.0 for . vertical handling
. Vacuum cups are not included in scope of delivery, please see accessories for all models

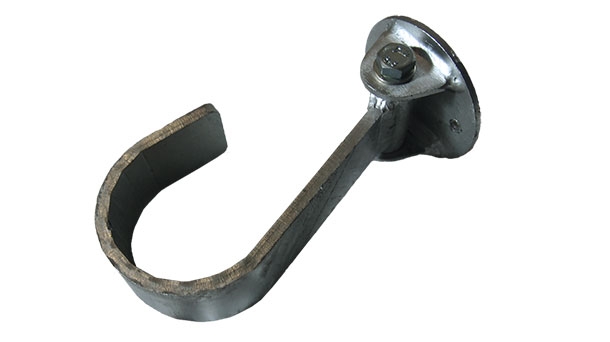

. Mechanical load-handling attachment for lifting containers or buckets, for example
. Load-handling attachment e.g. for the lifting lugs of jerrycans
. The load hook is movable
. Please note that mechanical gripping tools should be used only in conjunction with the SH.OPT.BAC.0014 safety valve

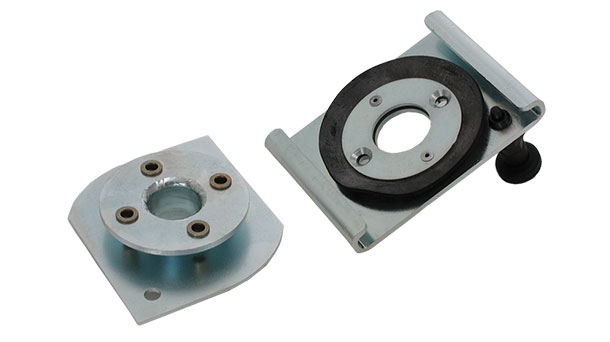

. Quick-change system for rapid tool-free replacement of the vacuum cups and gripper systems on the FIPALIFT Basic
. Operates with a bayonet fitting
. Ideally suited to frequently changing handling tasks

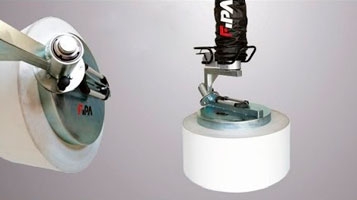

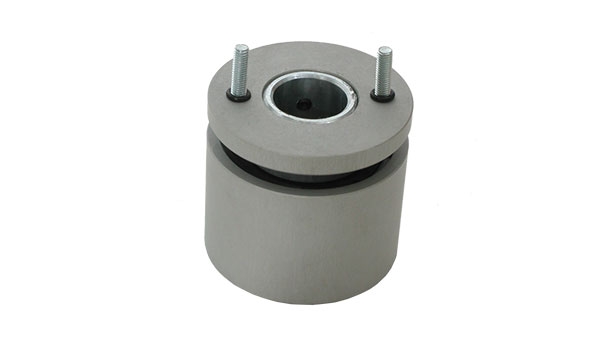

. Joint for stepless 360° rotation of goods
. Ideal for repositioning of goods to be lifted, e.g. when loading a machine or palletizing cartons

. Additional valve for rapid lowering of goods to be lifted
. Particularly suitable for use with large vacuum cups and lighter goods
. Available for the standard control handle and elongated control handle
. Vacuum can be released via push button control on the operation unit

SPECIAL SOLUTIONS

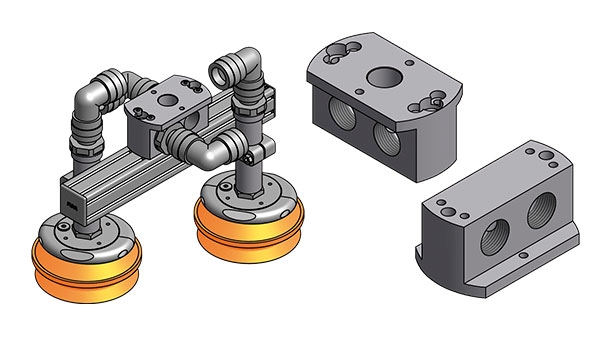

. Can be used with FIPA XLine and SLine profile and the associated connecting elements
. Facilitates easy construction of custom solution for non standard goods
. Four G3/4 connections for vacuum supply to vacuum cups
. Can also be used on FIPALIFT Smart with Smart-Basic adapter
. The appropriate EOAT components can be found at www.fipa.com in the End-of-Arm-Tooling section in our End-of-Arm-Tooling catalog
