Vacuum units.

. Portable system for vacuum supply of suction cups or fixing tools
. Specially developed for the extraction of non-aggressive liquids such as e.g. cooling lubricants in the glass, marble and CNC machine markets

Included in scope of delivery:
. Vacuum tank
. Oil-lubricated vacuum pump
. Vacuum gauge
. Condensate trap filter
. Non-return valve at the tank inlet to separate the pump for maintenance
. Float level control for automatic discharge of the collected liquid
. Condensate discharge
. Non-return valve and gas ballast for trapping and discharge the condensed water from the oil at standstill

. Centralized vacuum supply with horizontal buffer tank

Included in scope of delivery:
. Oil-lubricated rotary vane pump with integrated oil mist separator at the outlet
. Horizontal vacuum tank with condensate discharge valve
. Particle filter to protect the pump
. Non-return valve to maintain the vacuum when the pump is at standstill
. Control panel (400 VAC, 50/60 Hz) with current protection, pressure sensor and PLC for manual and automatic operation
. Switching cabinet IP 55
. On request: Optional filter between the non-return valve and the vacuum system

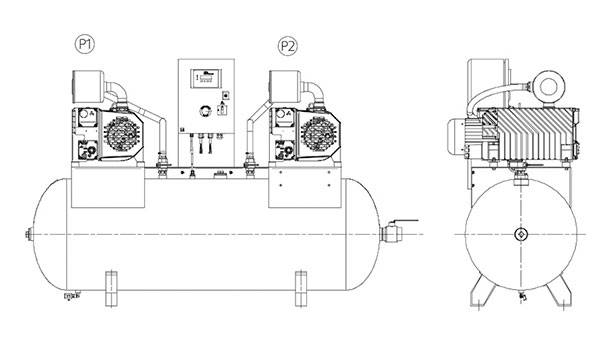

. Centralised vacuum supply with two pumps and horizontal buffer tank
. Redundant system that enables maintenance work to be done during operation

Included in scope of delivery:
. Two oil-lubricated rotary vane pumps with integrated oil mist separator at the outlet
. Integrated non-return valve at the suction inlet to maintain the vacuum at standstill
. Horizontal vacuum tank with condensate discharge valve
. Two manual valves at the tank inlet to separate the pump from the system for maintenance
. Particle filter to protect the pump
. Control panel (400 VAC, 50/60 Hz) with current protection, pressure sensor and PLC for manual and automatic operation
. Switching cabinet IP 55
. On request: Optional filter between the non-return valve and the load end

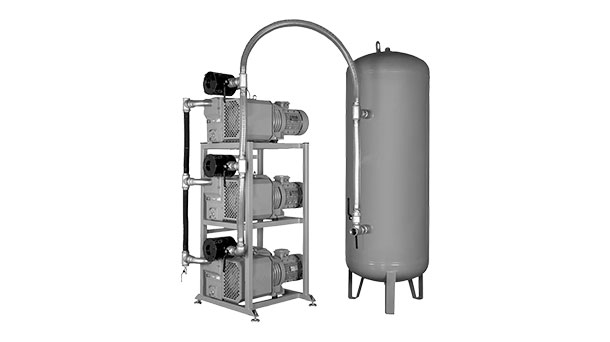

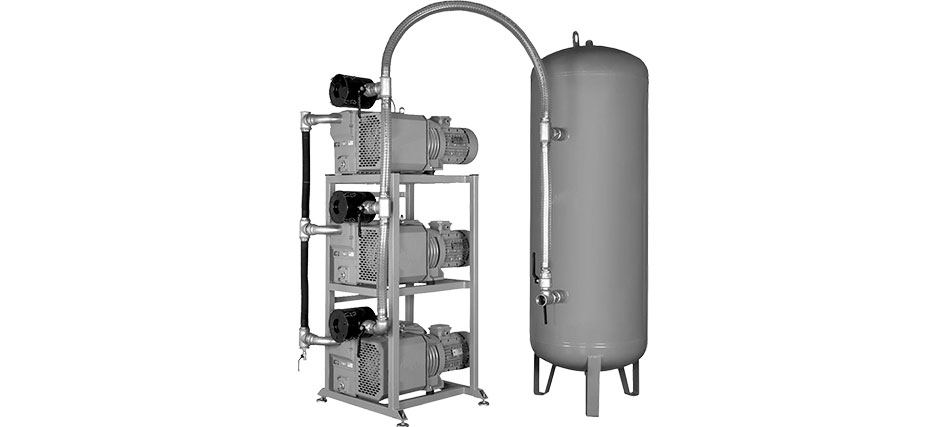

. Centralized vacuum supply with three pumps and vertical buffer tank
. Redundant system that enables maintenance work to be done during operation

Included in scope of delivery:
. Three oil-lubricated rotary vane pumps mounted on one frame to conserve space
. One vertical vacuum tank with condensate discharge valve and additional bypass system to separate the system
. Three non-return valves integrated in the suction line of the pumps to maintain vacuum at standstill
. Three particle filter elements to protect the pumps
. Two independent control panels (400 VAC, 50/60 Hz) with current protection, pressure sensor and PLC for manual and automatic operation
. Switching cabinet IP 55
. Optional GFB hygiene filter element (Standard EN 773/3) with bypass system between the non-return valve and the load
