Solenoid valves.

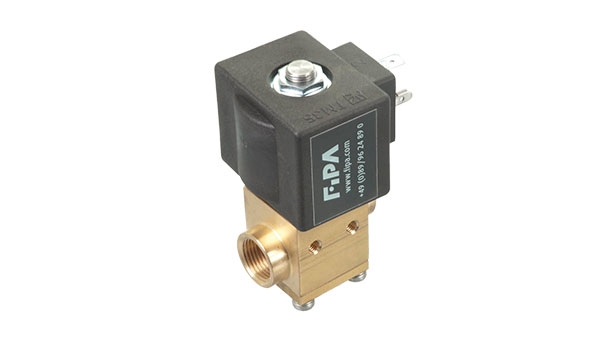

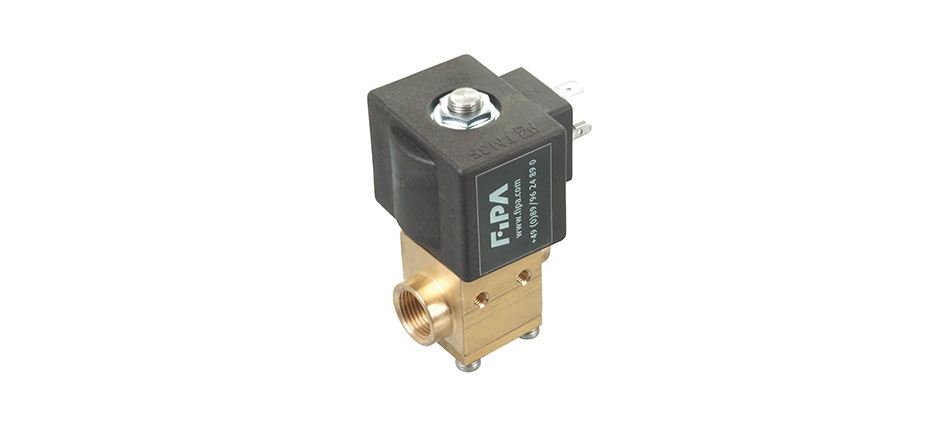

. Very high suction power at small size for short evacuation time and fast vacuum build-up
. Short response time
. Robust brass housing and compact design for demanding applications
. Also suitable for positive pressure
. Incl. energy saving coil for minimized power consumption and less heat development
. Energy saving coil 24 VDC or 230 VAC and DIN plug IP65 included
. Further available voltages:
- VAC: 115, 48, 24
- VDC: 12

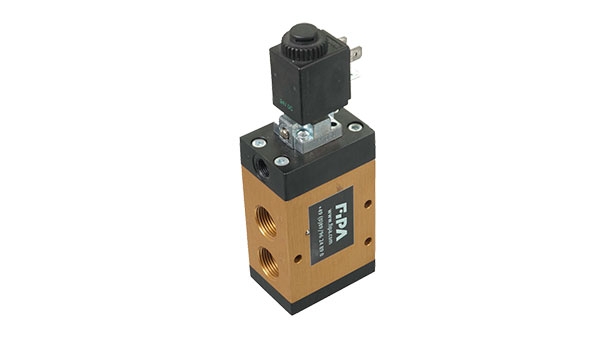

Indirectly controlled, with spring reset
. Suitable for compressed air
. 36.060: For use e.g. to increase cycle times for ejectors without valve technology
Example: Vacuum and blow-off control for multi-chamber ejectors e.g. 65.410
- 1x compressed air vacuum generation
- 1x compressed air blow-off
. 36.061: For use e.g. as a blow-off control valve for 3/2-way vacuum valves
. Robust and lightweight housing
. Included in scope of delivery: Coil and DIN plug 10.006 for 24 VDC, IP65

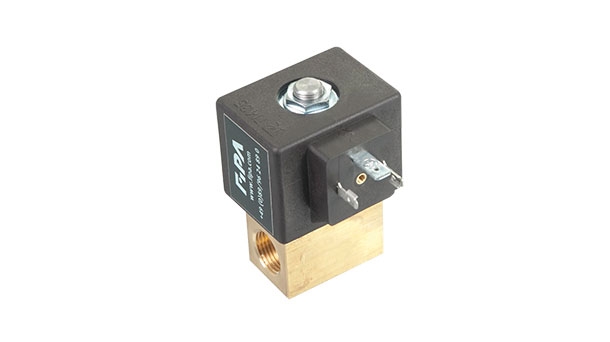

. Suction, blow-off, ventilation of vacuum cups
. High suction power at small construction for short evacuation times and fast vacuum build-up
. Short switching times
. Function: NC/NO as vacuum supply and blow-off / ventilation inlets can be exchanged
. NO: Safe gripping of workpiece during power failure
. Robust and lightweight housing
. 36.210 and 36.211: Coil and DIN plug included in scope of delivery
. 36.515 to 36.525: Delivery without coil and plug; please order: Power consumption: 24 VDC: 5 W, 230 VAC: 5 W

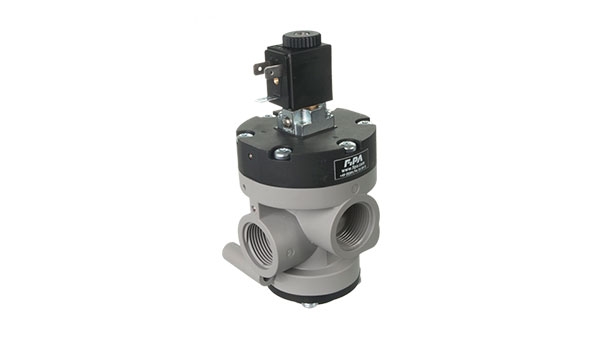

RESISTANCE AGAINST LOW OZONE CONCENTRATIONS

. Very high suction power at small size for short evacuation time and fast vacuum build-up
. Small, compact and lightweight
. Suction on/off, blow-off or ventilation of vacuum cups
. HNBR-Diaphragm allows for flexible installation due to resistance against low ozone concentrations
. Fast switching time
. Factory set NO, can be switched to NC by the customer
. To be mounted in any position
. Included in scope of delivery: Coil 24 VDC and DIN plug
. Other voltages on request

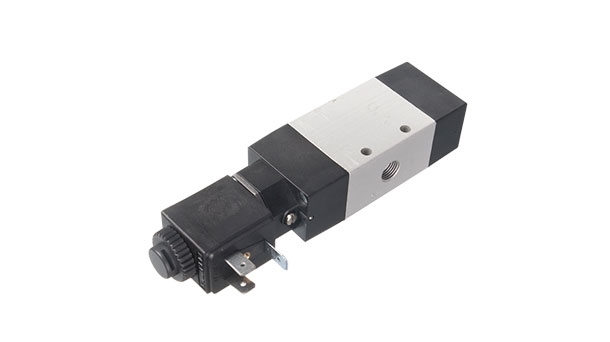

. Very high suction power at small construction size for short evacuation time and fast vacuum build-up
. Fast product release due to integrated vent port
. Suction on/off, blow-off or ventilation of vacuum systems
. Also suitable for positive pressure
. Short response time
. Robust brass housing in compact design for demanding applications
. Incl. energy saving coil for minimized power consumption and less heat development

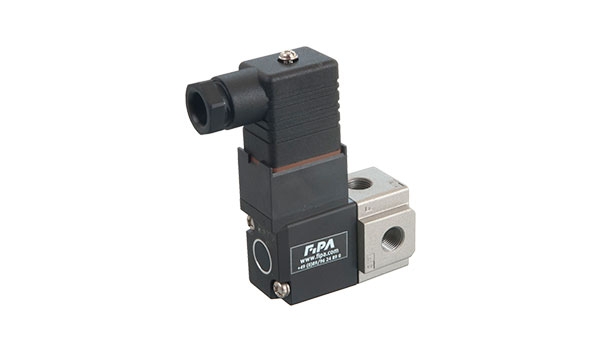

. Suction on/off, blow-off, ventilation of vacuum cups
. High suction power at small construction for short evacuation time and fast vacuum build-up
. Valve operation requires no compressed air connection due to internal vacuum control
. Required minimum vacuum level 40 %
. Short switching times
. NO: Safe gripping of workpiece during power failure
. Robust and light-weight housing
