Linear system LR.
Marca

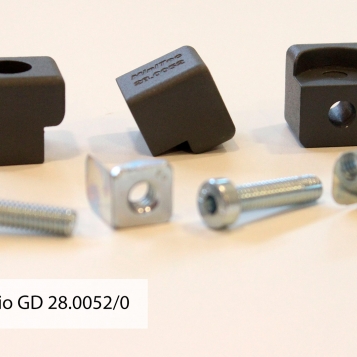

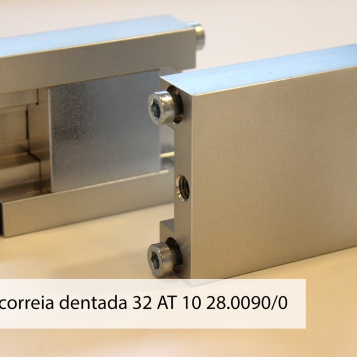

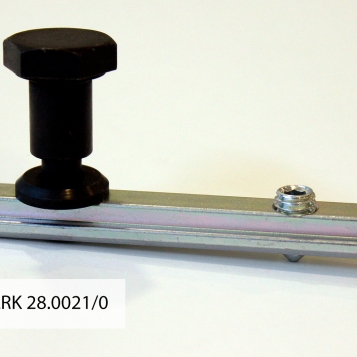

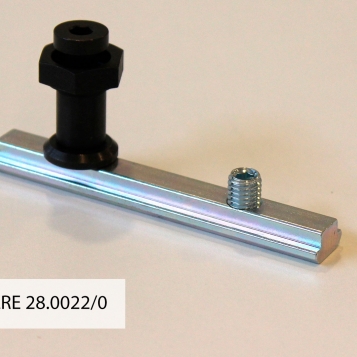

MiniTec provides profiles and components such as Linear Axis LR 6, Linear Axis LR 12, Linear Axis LR 16, Fastening Kits, Bellows, Connecting Shafts, Clutches, Tooth Belts, Timing Belts, Rails, Slides, Belt Conveyors, Timing Belt Pulleys, and more to meet your exact system needs and stroke requirements.
These products, a part of our Linear System line, can be used for handling, measuring, and calibration devices as well as the precise guidance of doors or large extracts. Consult the engineers at MiniTec for any questions you have regarding the Linear System LR components and their specifications.

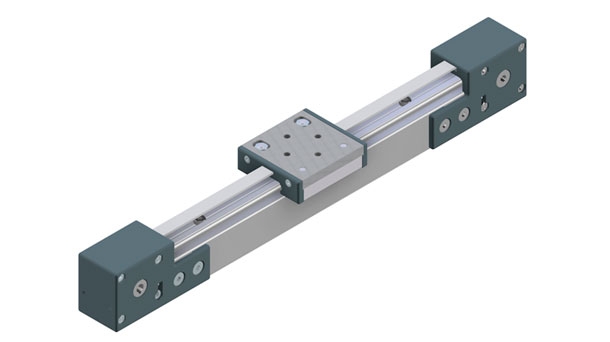

READY FOR USE MODULS – LINEAR SYSTEM LR
To place an order, please define the stroke and total length required.

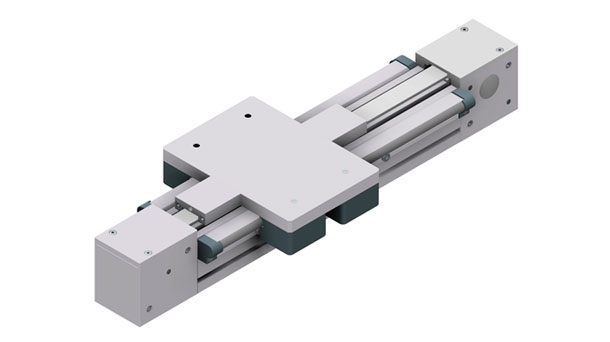

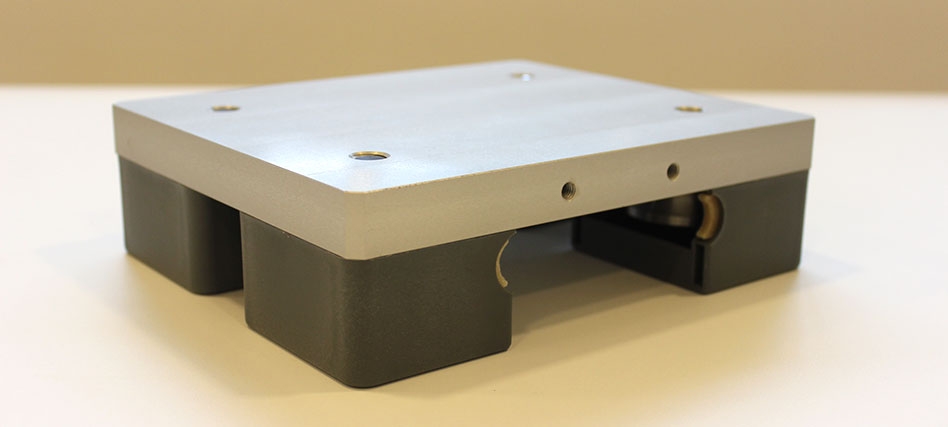

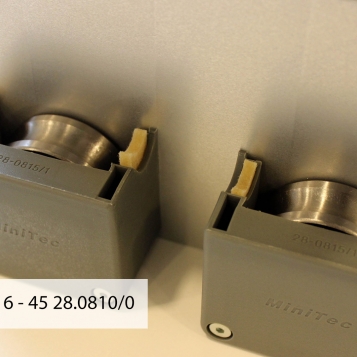

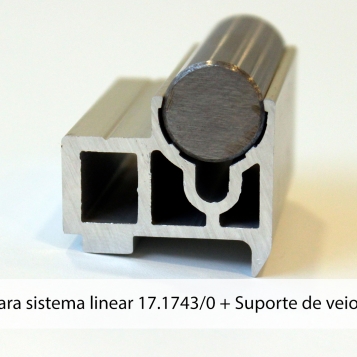

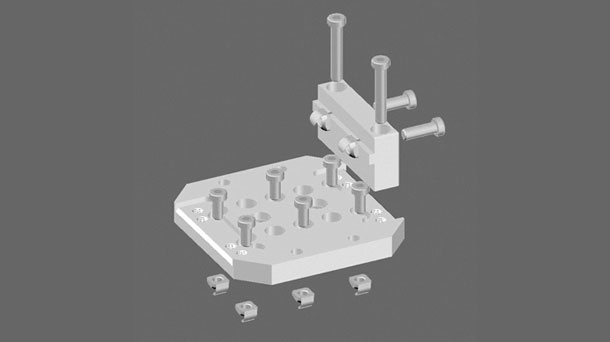

The linear system LR is based on double-row angular contact bearings made of bearing steel, hardened and ground precision shafts 1.1214 (Cf 53). Any required stroke length can be implemented. The slides are equipped with double-row roller bearings with gothic arch outer grooves. For very high loads multiple bearings are attached with steel-T-Slot bars directly to the slideplate giving the construction great rigidity. No special bearing profiles are required for the assembly. The clearance between bearings and shafts can be adjusted by eccentric bushings.

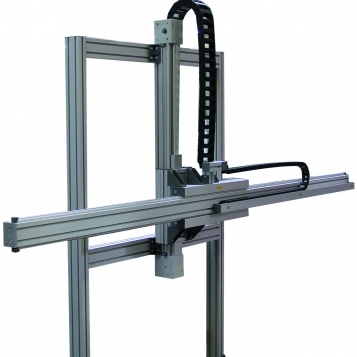

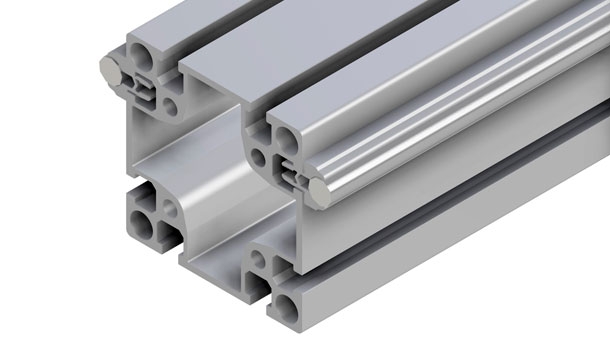

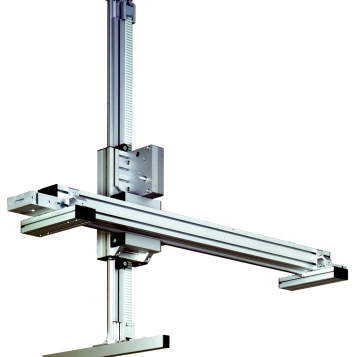

Both closed and open-frame slides with any desired length or width can be fabricated. Linear modul LR 6 X/Y-tables are easily constructed by the attachment of 4 bearings on to the top of the slide. The guide rails for this configuration are made from profile 45 x 32. End caps LR and cover profile AL also fit the Y-axis.

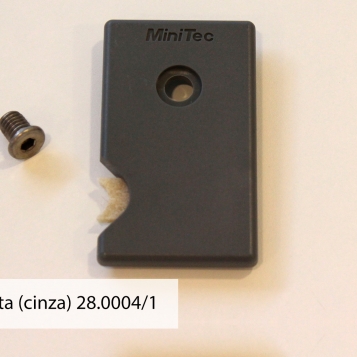

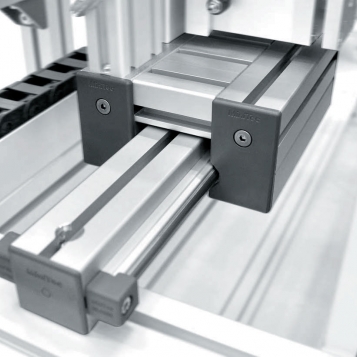

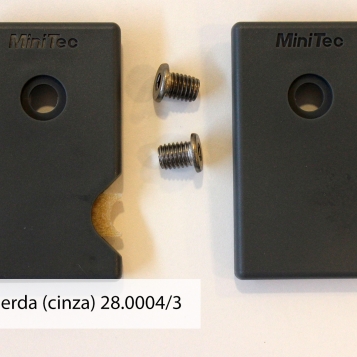

The slides are completely covered, lubrication felts are fitted in the endcaps which clean and grease the shafts. For maintenance purposes the felts can be exchanged quickly and easily without tools. This advantage is important for applications in rough working conditions.
