94 Series - External Spring Loaded.
Marca

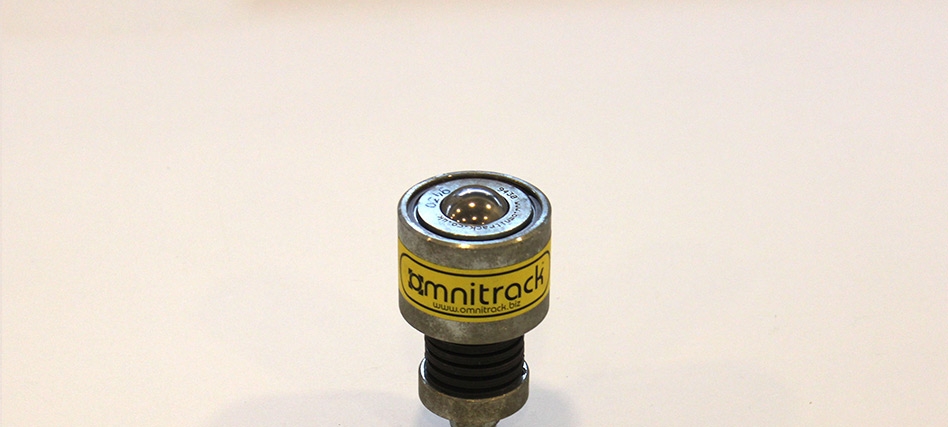

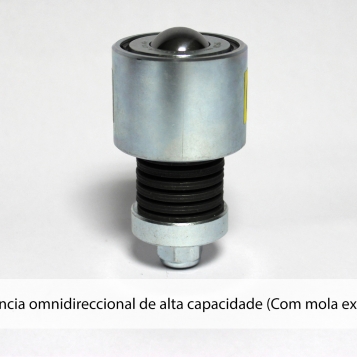

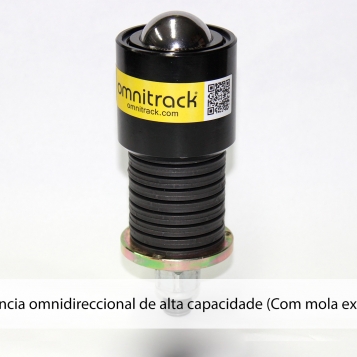

Omnitrack 94 series spring loaded ball transfer units are pre-stressed for omnidirectional & accurate positioning.
. Ideal where load equalisation or unequal track/load conditions exist
. Exceptional shock & high/low temperture resistance
. Adjustable spring pre-load
. Maximum load capacity at any angle of orientation
. Integral threaded mounting points provided in spring reaction washer
. Service kits available for extended service life
. Not found what you need? Call us now
As these units are from our ‘heavy duty’ range they offer the lowest coefficient of friction & smoothest performance available.
When incorporating Omnitrack 94 series units into heavy press tooling or dies, the tooling can be precisely positioned & then clamped. The additional force caused by will cause the disc springs to deflect whilst clamped, yet once unclamped, raise the tooling ready to be manoevered away with ease & accuracy.
Material upgrade options are shown below – order by adding the suffix to the part number required, for example, 9441 ‘Z’ which includes stainless steel balls/internal parts & improved resistance to high temperatures.
Spring mechanism parts remain carbon spring steel irrespective of material upgrades – consult us is other materials are required.
