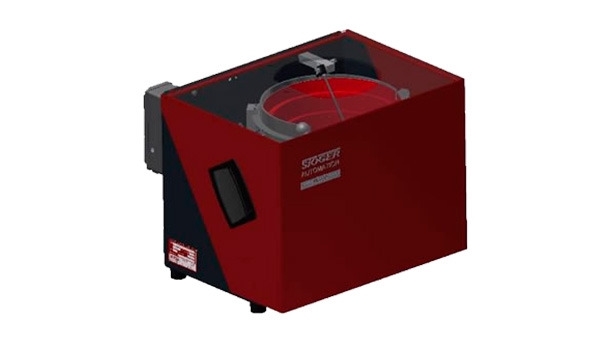

ZSE Bowl feeder.

When you opt for a feed unit from the ZSE range, you are choosing a robust all-rounder.

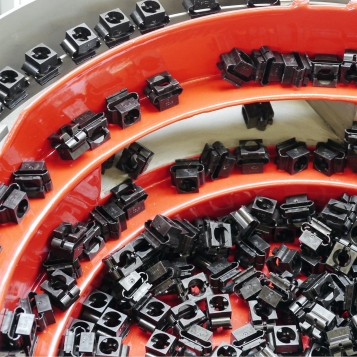

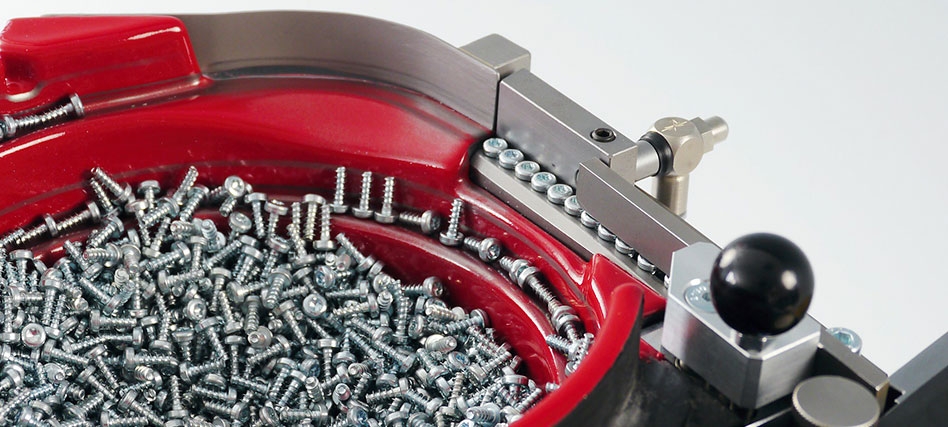

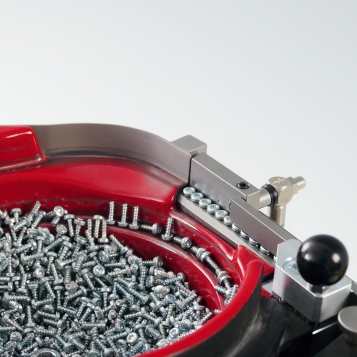

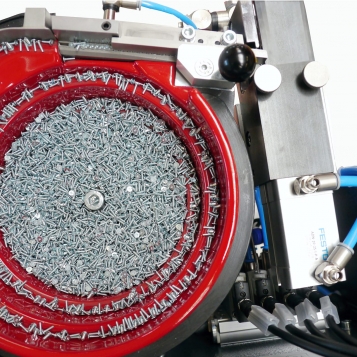

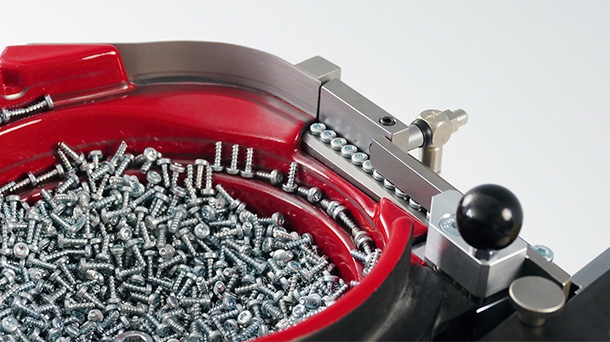

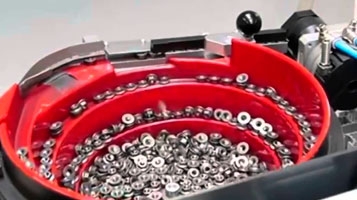

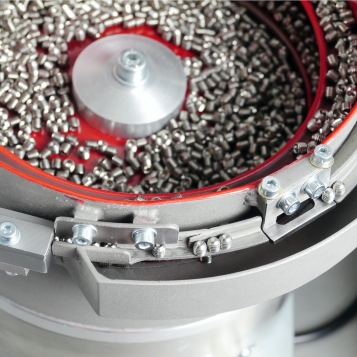

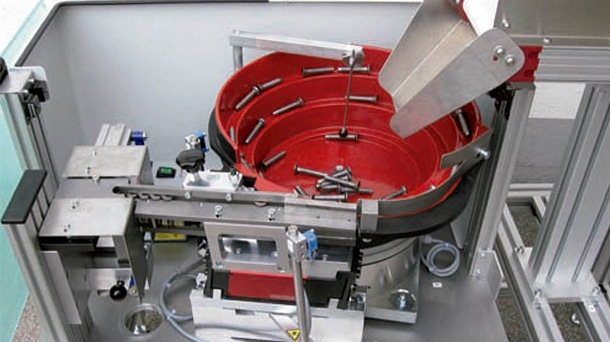

In addition to screws, it is possible to feed almost every fastener geometry, e.g. nuts, rivets, rings, clips, washers, covers, pins, sleeves, and much more besides. Using a micro-throwing technique, the fasteners are transported from the centre of the feeder bowl up the spiral right to the exit rail. Here, they are automatically sorted in the correct position and transported to the escapement, before being injected into the screwdriving unit through the feed tube. An integrated frequency control device adjusts the trans¬port speed of the fasteners to the screwdriving unit requirements.

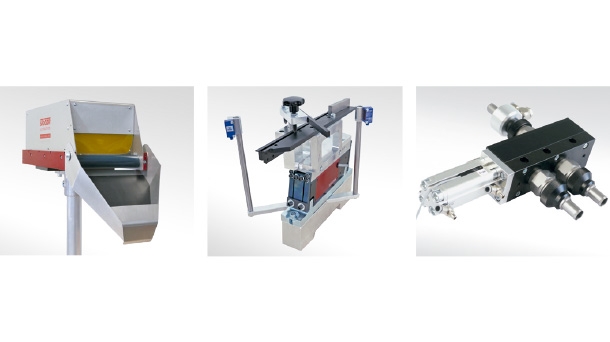

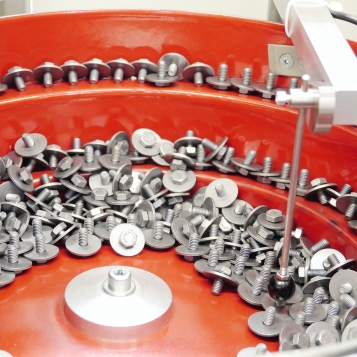

All parts that come into contact with the fastener are produced from hardened tool steel for a long service life. Sophisticated details, such as a sorting chicane that is adjustable to the various screw batches, an optionally available contents level control system and an optional measuring device for position recognition or for checking the screw length, leave no wish unanswered.

THE ADVANTAGES AT A GLANCE
. Robust all-rounder, suitable for almost every fastener
. For all sizes and geometries
. High throughputs
. Rapid clearance of non-dimensionally compliant or deformed screws and foreign bodies
. Can be operated with 230 V / 50 Hz or 120 V / 60 Hz without additional settings or modifications
. Coating of the feeder bowl for high wear resistance and quiet running
. Cover of the sorting chicane can be removed with ease, without the use of tools, e.g. for maintenance purposes or with the clearance of deformed fasteners

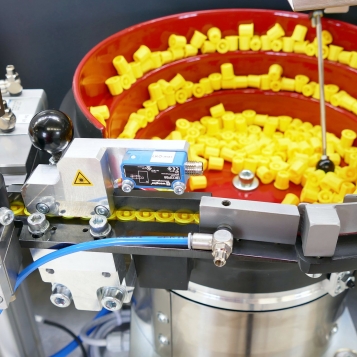

. Feed control across the entire feed process with sensor system
. Production in accordance with drawing enables exchange of wearing parts

SUPPORT FOR THE PROJECT
We help you plan your project
. Help in decisions about the system by phone or visit
. Price guides to help you with your calculations
. 3D data for your presentation

AREAS OF APPLICATION

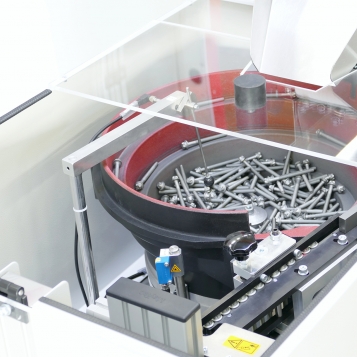

. For automated assembly
. Providing fastening elements such as bolts (ZSE) and nuts (ZME) for screwdrivers and other systems

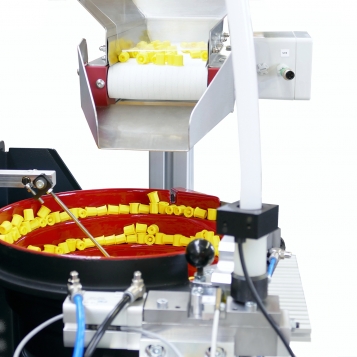

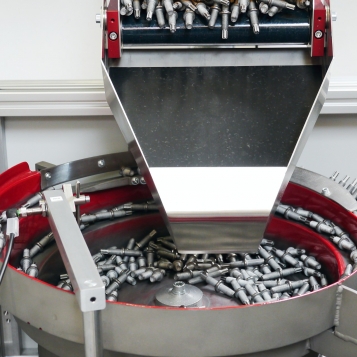

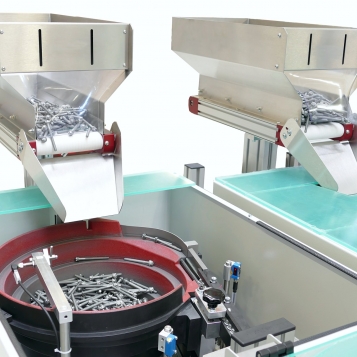

. Depending on the material being transported, various sizes and models are available with a filling volume of 0.05 to 3.0 liters.

EASY MAINTENANCE
. Easy maintenance separation
. Quick and easy disassembly
