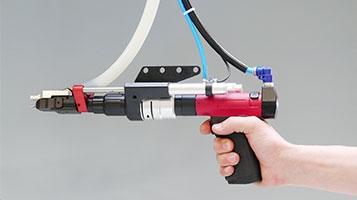

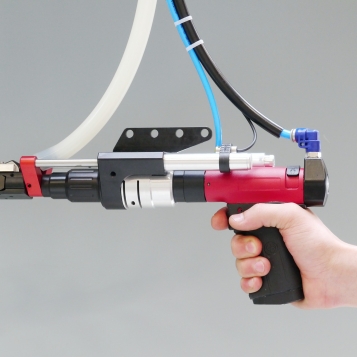

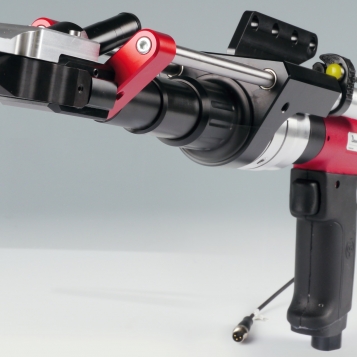

Pistol-grip screwdriver PHS.

Our pistol screwdrivers PHS series impress with their versatility. The screw of the PHS-Screwdrivers with fixed protruding screw allows easy and fast retrieval of bit and easy positioning of the wrench.

A fixed protruding screw shaft facilitates the insertion of the screw on the component. The screw and feeding process starts with pressure. After tightening the screw, the engine switches off automatically and the screw moves back to the starting position.

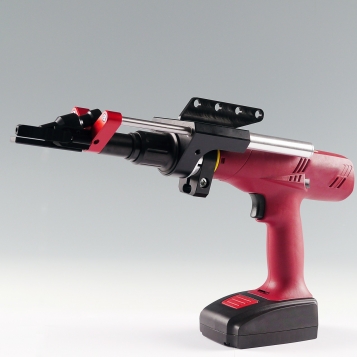

The screw of the PHS series can be combined with optional pneumatic, electric battery or wired power set. Also available with torque sensor.

ADVANTAGES
. Use in hard to reach places
. Easy tool change
. Easy adjustment of torque
. Telescope-type functioning or automatic retraction of the feed head, thus firmly-protruding screw
. Highly flexible due to free choice of motor (pneumatic or electric)
. Bit change without tool

APPLICATIONS
Compact design for difficult to access screwdriving positions, eg:
. Window construction
. Sheet metal panelling
. Assembly of washing machines, refrigerators etc.

FOR AUTOMATED ASSEMBLY
. High numbers
. Documentable quality

EASY HANDLING
. Work direction: horizontal
. Type of drive: pneumatic or electric
. Tightening screws, meeting exact depth or torque values
. Fixed protruding screw - fast positioning
. Automatic tool pre-stroke - hardly necessary contact force
. Shut-off
. Low air consumption by push start and shut-off function
. Release force less than 2N
. Automatic screw feeding
. Ergonomic handle
. Bundled hose and cable routing
. Quiet operation through air recirculation

SERVICEABILITY
. Tool change in 15 seconds
. Adjustable torque

ZSE 1800 OR CSE 2600 (FEED)
. coated plastic article
. adjustable, hardened, ground and rail detachable spout
. precise transition from the outlet rail for separation
. Removable split sound enclosure
. high clock speeds up to 100 pieces per minute

OPTIONALLY AVAILABLE
. Suspension bracket with adjusting bar
. Depth stopper
. Cylinder switch for depth control
. Pneumatic depth control switch

TECHNICAL DATA
Possible control functions
. Electronic/pneumatic depth control
. Hose sensor
. IO Signal transmitter, eg. from the drive controller, upon reaching the set torque or from a depth sensor

Feed bore
. Screw head Ø max. 12mm
. Head/Shaft ratio 1:1,5

Tool stroke
. 60 mm

Weight
. approx. 1-1,5 kg, depending on the type of drive

Dimensions
. Length 300-400mm

Operation temperature
. -10°C up to +50°C
