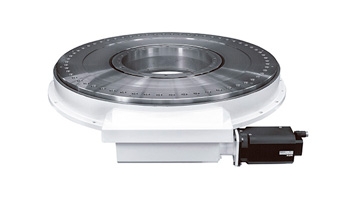

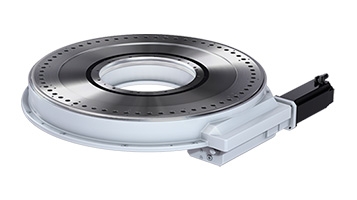

CR1000 Heavy duty rotary table

Flat heavy duty ring with large central opening. A real powerhouse. Freely programmable. The flat design saves space and offers flexibility for creating ergonomically sound workplaces. Using the W.A.S. control system, the ring is completely freely programmable.

TECHNICAL DATA
. Max. motor speed: 2400 1/min
. Max. output speed: 12 1/min
. Overall gear ratio: 200
. Indexing precision: 30 arcsec (± 15”)
. Axial run-out of the drive flange: (at Ø 1000 mm) 0.03 mm
. Concentricity of the output flange: 0.03 mm
. Total weight, including motor: approximately 1450 kg
The values stated for axial run-out and concentricity can only be achieved with precise mounting surfaces.

LOAD DATA (for the stationary central part)
. Permitted torque: 2000 Nm
. Permitted tilting moment: 6000 Nm
. Permitted axial force: 45000 N
. Permitted radial force: 19000 N

LOAD DATA (for the output flange)
. Permitted dynamic tilting moment: 25000 Nm
. Permitted dynamic axial force: 120000 N
. Permitted dynamic radial force: 100000 N
Combined loads and permitted process forces only after inspection by WEISS.
