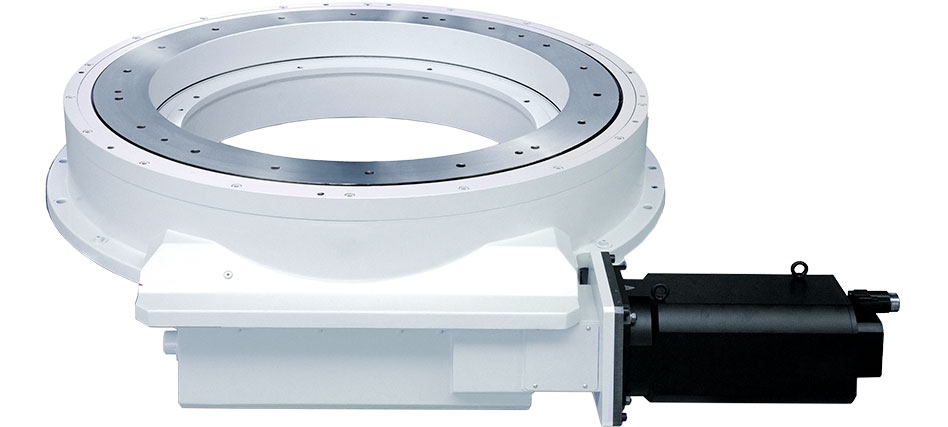

CR1300 Heavy duty rotary table.

Flat heavy duty ring with large central opening. A real powerhouse. Freely programmable. The flat design saves space and offers flexibility for creating ergonomically sound workplaces. Using the W.A.S. control system, the ring is completely freely programmable.

TECHNICAL DATA
. Max. motor speed: 2000 1/min
. Max. output speed: 11 1/min
. Overall gear ratio: 180
. Indexing precision: 24 arcsec (± 12”)
. Axial run-out of the drive flange: (at Ø 1248 mm) 0.03 mm
. Concentricity of the output flange: 0.03 mm
. Total weight, including motor: approximately 2000 kg
The values stated for axial run-out and concentricity can only be achieved with precise mounting surfaces.

LOAD DATA (for the output flange)
. Permitted dynamic tilting moment: 35000 Nm
. Permitted dynamic axial force: 150000 N
. Permitted dynamic radial force: 100000 N
