CR300 Heavy duty rotary table.

Marca

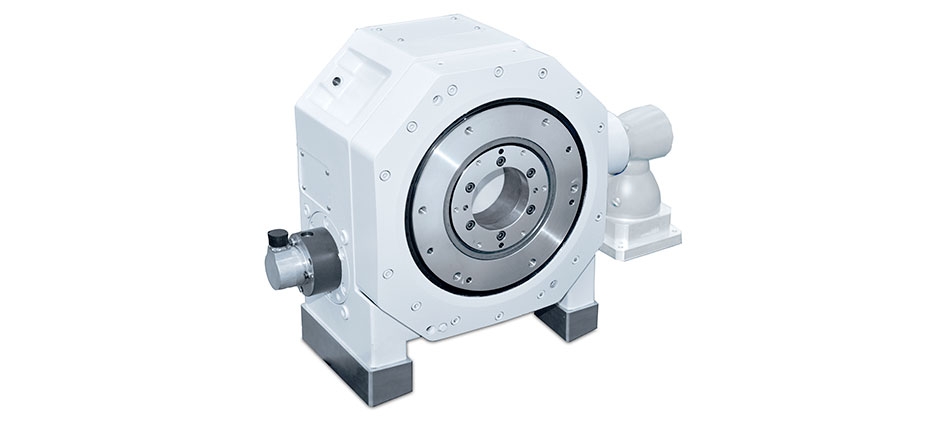

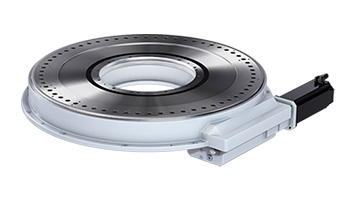

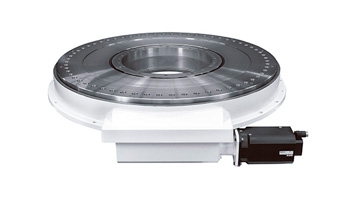

CR300 Heavy duty rotary table

Flat heavy duty ring with large central opening. A real powerhouse. Freely programmable. The flat design saves space and offers flexibility for creating ergonomically sound workplaces. Using the W.A.S. control system, the ring is completely freely programmable.

TECHNICAL DATA
. Max. motor speed: 2000 1/min
. Max. output speed: 15.5 1/min
. Overall gear ratio: 130.2
. Indexing precision: 60 arcsec (± 30”)
. Axial run-out of the drive flange: (at Ø 280 mm) 0.01 mm
. Concentricity of the output flange: 0.01 mm
. Total weight, including motor: approximately 210 kg
The values stated for axial run-out and concentricity can only be achieved with precise mounting surfaces.

LOAD DATA (for the stationary central part)
. Permitted torque: 150 Nm
. Permitted tilting moment: 300 Nm
. Permitted axial force: 6500 N
. Permitted radial force: 3500 N
Combined loads and permitted process forces only after inspection by WEISS.

LOAD DATA (for the output flange)
. Permitted dynamic tilting moment: 3000 Nm
. Permitted dynamic axial force: 20000 N
. Permitted dynamic radial force: 5500 N
