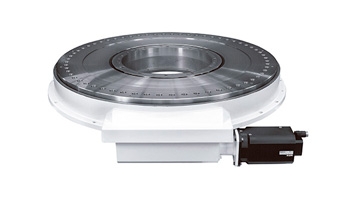

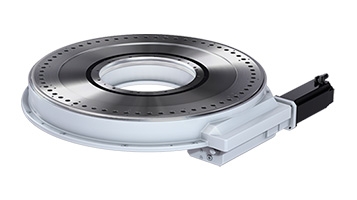

CR400 Heavy duty rotary table

Flat heavy duty ring with large central opening. A real powerhouse. Freely programmable. The flat design saves space and offers flexibility for creating ergonomically sound workplaces. Using the W.A.S. control system, the ring is completely freely programmable.

TECHNICAL DATA
. Max. motor speed: 3000 1/min
. Max. output speed: 13.5 1/min
. Overall gear ratio: 222.04
. Indexing precision: 100 arcsec (± 50”)
. Axial run-out of the drive flange: 30 arcsec (± 15”)
. Ar Concentricity of the output flange: (at Ø 400 mm) 0.015 mm
. Total weight, including motor: 0.015 mm
. Total weight incl. Motor: approximately 300 kg
The values stated for axial run-out and concentricity can only be achieved with precise mounting surfaces.

LOAD DATA (for the stationary central part)
. Permitted torque: 300 Nm
. Permitted tilting moment: 650 Nm
. Permitted axial force: 10000 N
. Permitted radial force: 6000 N
Combined loads and permitted process forces only after inspection by WEISS.

LOAD DATA (for the output flange)
. Permitted dynamic tilting moment: 3000 Nm
. Permitted dynamic axial force: 30000 N
. Permitted dynamic radial force: 8000 N
