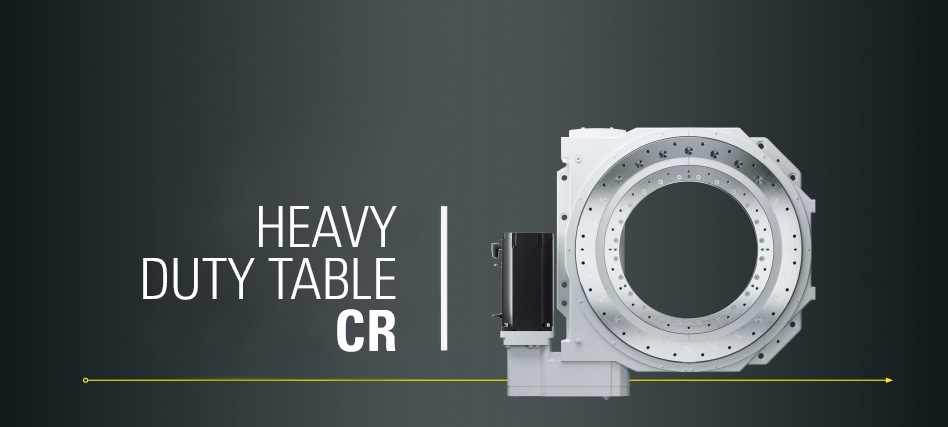

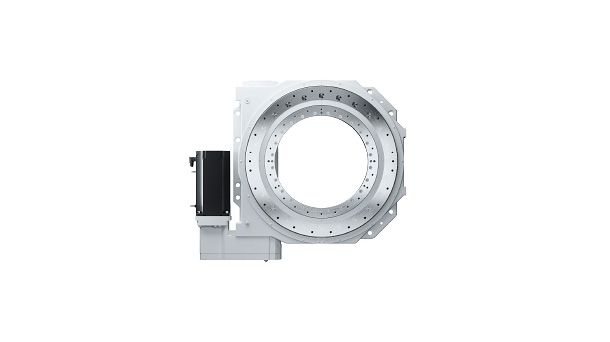

CR 900 Dynamic & Precision Heavy duty rotary table

The next generation of heavy duty tables – our new CR range offers even more power and precision in astoundingly compact external dimensions. The main benefit, however, is that the table can be matched precisely and individually to the respective application requirements – so users only pay for what they actually need.

CR 900 Dynamic
Technical data:
Indexing precision: ± 30"

Load data:
FA dynamic: 90 kN

CR 900 Precision
Technical data:
Indexing precision: ± 15"

Load data:
FA dynamic: 90 kN

GREATER PERFORMANCE
GREATER PRECISION
GREATER FLEXIBILITY

In comparison with its predecessor, the compact powerhouse has made gains in virtually all power categories:
. Phenomenal power density: Up to 58 % higher output torque than its predecessor.
. Excellent precision and dynamics.
. Flexible and user-programmable thanks to servo technology
. Optimised housing for exceptional robustness and stiffness
. Heavy duty table with the smallest footprint in this category in the market
. High degree of reusability
. All standard market motors can be fitted


More Info

Downloads

Links

Pay only for what you need
Individual production – efficient

Lots of space in the centre
Elegant ergonomics – Easy control

Strong and robust
Greater performance, higher power density

TWO VERSIONS…

TWO VERSIONS…

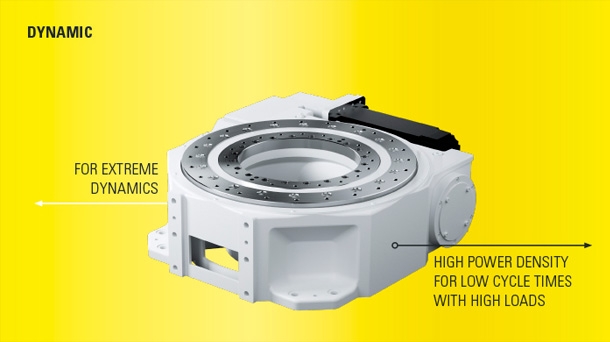

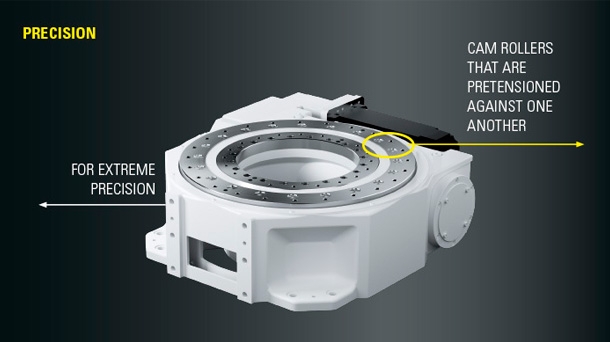

Is the system designed for high quantities while maintaining extreme precision? Or is the focus more on the loading options and dynamics? We have the solution to these various requirements: The new CR heavy duty rotary indexing ring is available in two versions and can be adjusted modularly with multiple equipment options.

…MANY OPTIONS

…MANY OPTIONS

The modular and intelligently conceived concept of the new CR heavy duty rotary indexing rings allows a very high degree of individual customisation for users. This flexibility really pays off, even if production conditions change, as drives can be swapped out and gear ratios also changed later on without any issues. This means that the table can continue to be used if the automation system is redesigned.

OPTIONAL ROTARY ENCODER
For the ultimate in precision: The optional rotary encoder also increases precision.

REINFORCED BEARING
Strong is not strong enough? With installation of the reinforced bearing, a smaller CR model may in certain circumstances be sufficient for the application.

FIVE GEAR RATIOS
A total of five different gear ratios are available. This makes it possible to configure the table optimally for any application.

NEW ELEGANCE IN SYSTEM CONTROL AND ERGONOMICS

NEW ELEGANCE IN SYSTEM CONTROL AND ERGONOMICS

The new CR makes integration into the system context an easy and smooth process in every respect. Particular emphasis was placed on system ergonomics here, whereby practical features also simplify the system design.

MORE SPACE IN THE CENTRE

MORE SPACE IN THE CENTRE

The generously dimensioned central opening offers sufficient space to cover a wide range of requirements, such as guiding through cables, rotary feedthroughs or upright attachments. Compared with its predecessor, the diameter has grown by 230 % to 346 mm.

HORIZONTAL OR VERTICAL

HORIZONTAL OR VERTICAL

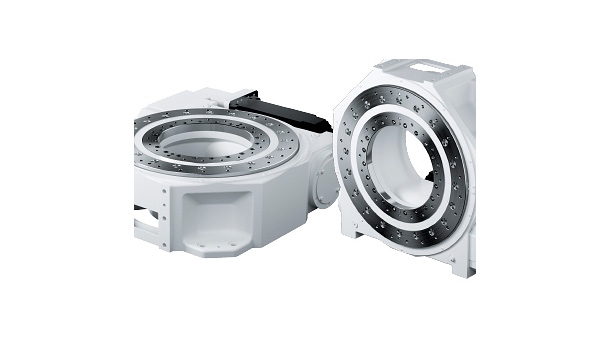

One table – two applications. The gearbox can be simply pivoted, allowing both horizontal and vertical use and thereby offeringimportant benefits in terms of reusability, flexibility and efficiency.

COMPACT. PRACTICAL. FLAT

COMPACT. PRACTICAL. FLAT

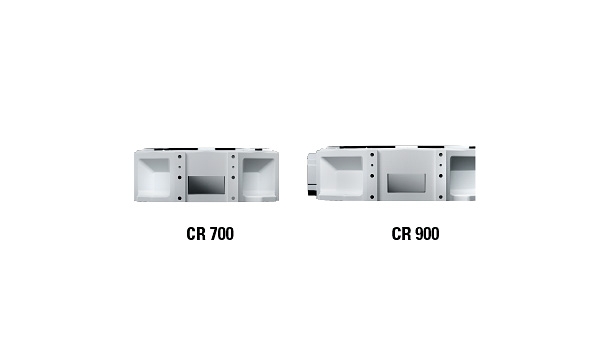

The compact and flat design is unique in the heavy duty table market. No other table offers this kind of power density in such a small footprint. The height also remains constant when using the 700 / 900 models or higher. The application can then be scaled by performing a simple component swap.
The special docking surface on the housing is equally practical. It is used as a mechanical function interface with defined tolerances and eliminates the need for separate attachment via the base plate.

SIMPLY GET STARTED

SIMPLY GET STARTED

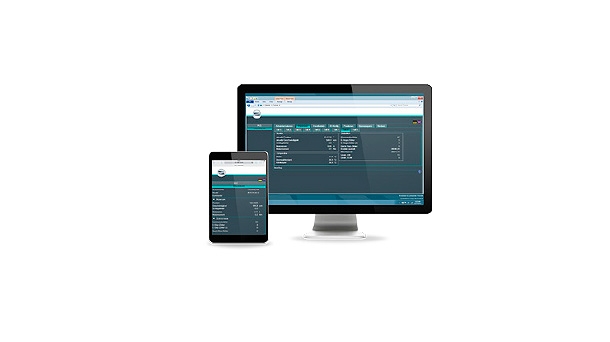

Despite complex servo technology, both set-up and operation are amazingly easy. Thanks to use of the WEISS Application Software (W.A.S.), all relevant settings are already pre-parameterised. Operation is so easy and intuitive that the new CR can be prepared for use in production operations in a very short time and without the need for any special knowledge.
