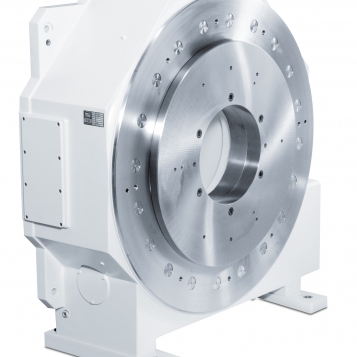

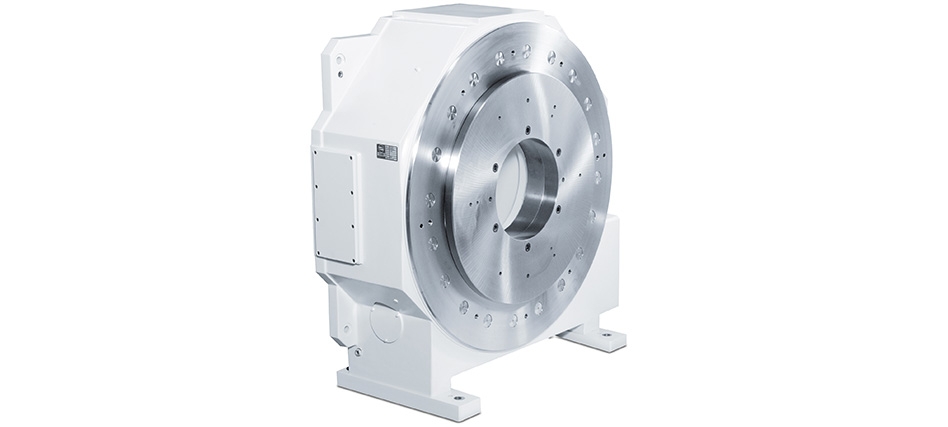

Heavy duty ring TH 1000.

The heavy duty ring TH combines free programmability and an extremely high level of torque with the ability to handle horizontal loads and high breakdown torque levels.

TECHNICAL DATA
. Max. motor speed: 2400 1/min
. Max. output speed: 12 1/min
. Overall gear ratio: 200
. Indexing precision: 30 arcsec (± 15”)
. Axial run-out of the drive flange: (at Ø 1000 mm) 0.03 mm
. Concentricity of the output flange: 0.03 mm
. Total weight, including motor: approximately 1500 kg
The values stated for axial run-out and concentricity can only be achieved with precise mounting surfaces.

LOAD DATA (for the stationary central part)
. Permitted torque: 2000 Nm
. Permitted tilting moment: 6000 Nm
. Permitted axial force: 45000 N
. Permitted radial force: 19000 N
Combined loads and permitted process forces only after inspection by WEISS.

LOAD DATA (for the output flange)
. Permitted dynamic tilting moment: 25000 Nm
. Permitted dynamic axial force: 120000 N
. Permitted dynamic radial force: 100000 N
