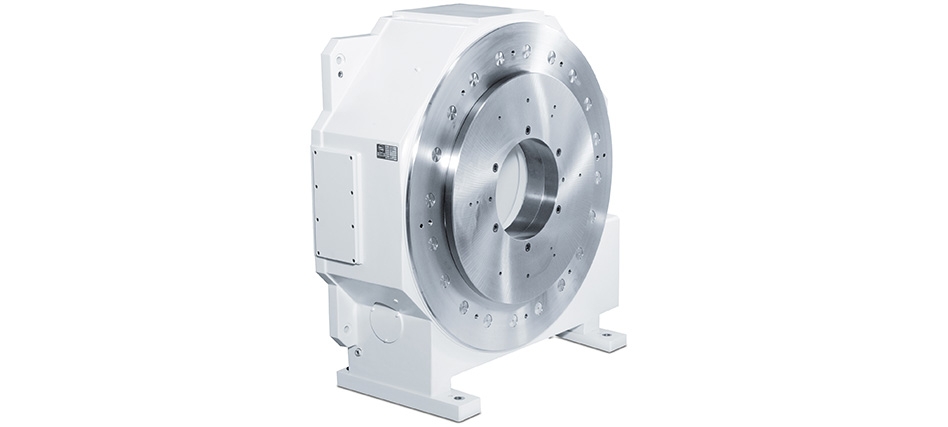

Heavy duty ring TH 700.

The heavy duty ring TH combines free programmability and an extremely high level of torque with the ability to handle horizontal loads and high breakdown torque levels.

TECHNICAL DATA
. Max. motor speed: 2000 1/min
. Max. output speed: 14 1/min
. Overall gear ratio: 144
. Indexing precision: 30 arcsec (± 15”)
. Axial run-out of the drive flange: (at Ø 700 mm) 0.02 mm
. Concentricity of the output flange: 0.02 mm
. Total weight, including motor: approximately 630 kg
The values stated for axial run-out and concentricity can only be achieved with precise mounting surfaces.

LOAD DATA (for the stationary central part)
. Permitted torque: 1700 Nm
. Permitted tilting moment: 3500 Nm
. Permitted axial force: 35000 N
. Permitted radial force: 19000 N

LOAD DATA (for the output flange)
. Permitted dynamic tilting moment: 10000 Nm
. Permitted dynamic axial force: 70000 N
. Permitted dynamic radial force: 30000 N
Combined loads and permitted process forces only after inspection by WEISS.
