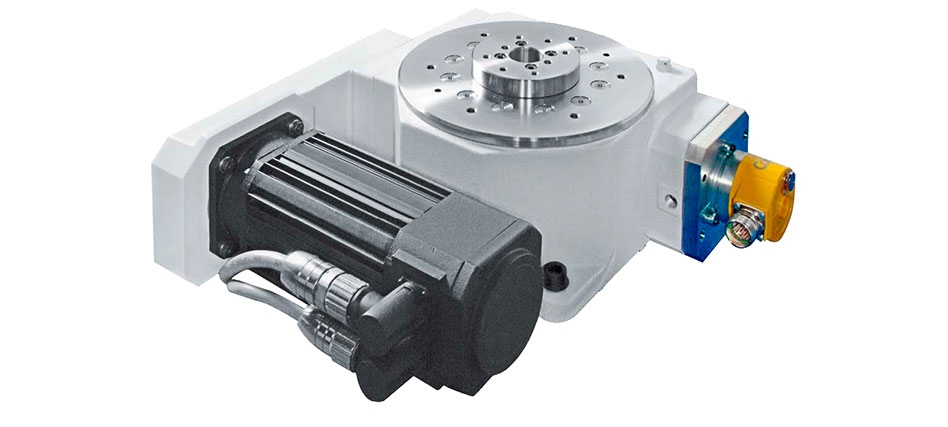

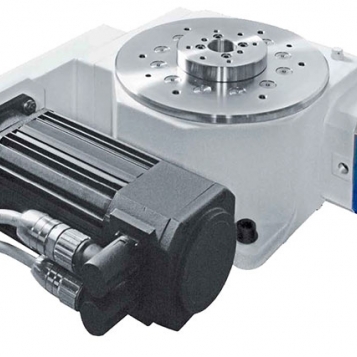

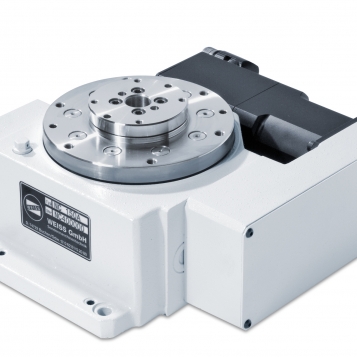

NC 150T rotary indexing table.

The NC combines robustness and durability with the advantages of a freely programmable rotary table offering a high level of torque. The NC differs from the TC range through its use of a brushless AC servo motor drive. In addition, the drive curve has a constant rise. The NC-T is capable of positioning large loads dynamically and precisely at freely selectable angles.

GENERAL INFORMATION
. Maximum recommended equipment diameter Dtp: approximately 800 mm
. Custom option for NC0150T: screw-on mounting from above (please request drawing)

TECHNICAL DATA
GENERAL INFORMATION
. Max. motor speed: 4500 1/min
. Max. output speed: 58 1/min
. Overall gear ratio: Level A: 144.545 | Level B: 77.091
. Indexing precision without additional rotary encoder: 100 arcsec (± 50”)
. Indexing precision with additional rotary encoder: 80 arcsec (± 40”)
. Axial run-out of the drive flange: (at Ø 150 mm) 0.01 mm
. Concentricity of the output flange: 0.01 mm
. Parallelism between the output flange and screw-on surface of the housing: 0.03 mm
. Total weight, including motor: approximately 24 kg
. Min. inside diameter of the rotary plate: 80 mm

LOAD DATA (for the stationary central part)
. Permitted torque: 140 Nm
. Permitted tilting moment: 200 Nm
. Permitted axial force: 3500 N
. Permitted radial force: 2500 N
Combined loads and permitted process forces only after inspection by WEISS.

LOAD DATA (for the output flange)
. Permitted dynamic tilting moment: 500 Nm
. Permitted dynamic axial force: 5500 N
. Permitted dynamic radial force: 6000 N
