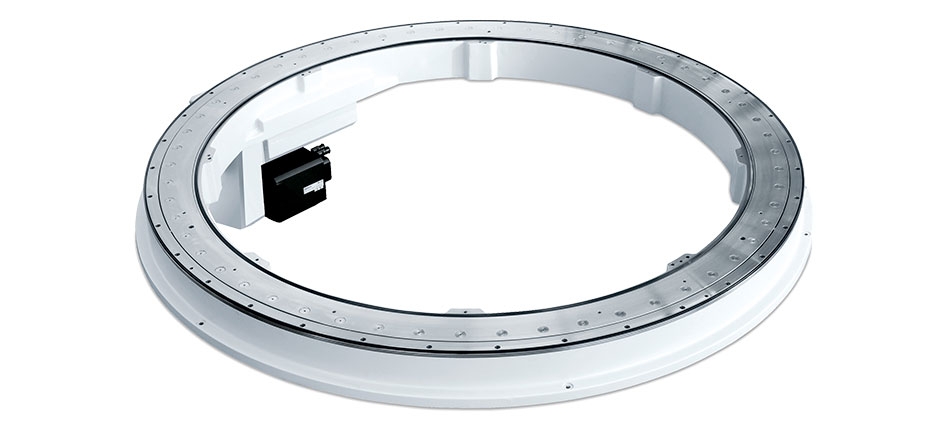

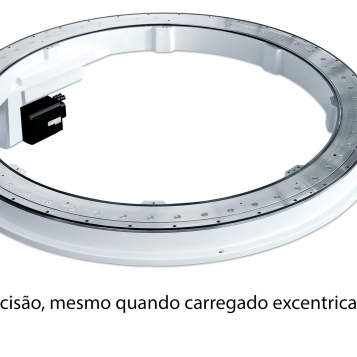

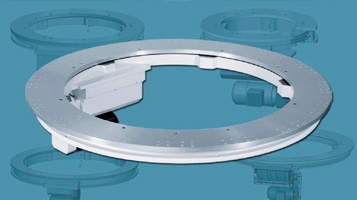

NR 2200Z rotary indexing ring.

Marca

Rotary ring table with very large central opening, extremely flat design and high parts accuracy. The ring-shaped design allows extra free design space. The rotating aluminium ring can be adjusted to your specifications in terms of diameter and thickness.

GENERAL INFORMATION
. Maximum recommended equipment diameter: approximately 4400 mm

TECHNICAL DATA
. Max. motor speed: 2000 1/min
. Max. output speed: 9 1/min
. Overall gear ratio: Level K: 220 | Level G: 440
. Indexing precision: 24 arcsec (± 12”)
. Axial run-out of the drive flange: (at Ø 1990 mm) 0.08 mm
. Axial run-out, including the rotary ring: (at Ø 2200 mm) 0.15 mm
. Concentricity of the output flange: 0.05 mm
. Parallelism between the output flange and screw-on surface of the housing: 0.08 mm
. Total weight without rotary ring or motor: 950 kg
The values stated for axial run-out and concentricity can only be achieved with precise mounting surfaces.

LOAD DATA (for the output flange)
. Permitted dynamic tilting moment: 4500 Nm
. Permitted dynamic axial force: 30000 N
. Permitted dynamic radial force: 30000 N
Combined loads and permitted process forces only after inspection by WEISS.

More Info

Photos

Videos

Downloads

Links

Mais Info

Application Example

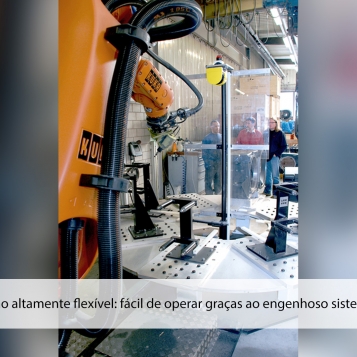

Mechanical deburring of cast parts by an articulated robot
WEISS rotary indexing ring as a feeding unit and 7th robot axis

Challenge
Unimec from the Swiss town of Wetzikon produces gearbox housings and stub axles for rail vehicles, among other things. An automatic solution with a flexible articulated robot was needed to replace manual deburring, a physically exhausting task. A flexible, precise, powerful and safe method of feeding the workpieces was required.

Solution

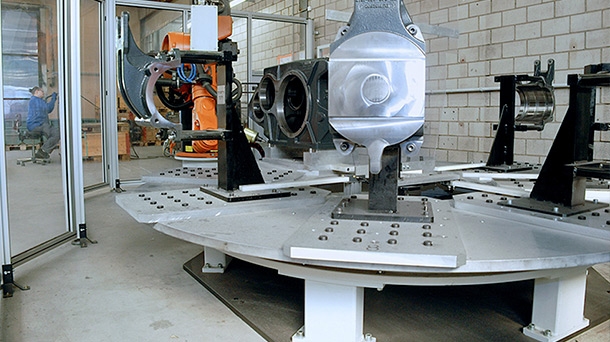

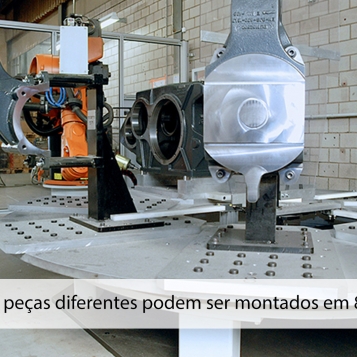

The WEISS NR 2200 rotary indexing ring forms the basis of the deburring system. Up to 8 workpieces and tool holders can be mounted on the ring. The rotary table feeds the workpieces to the industrial robot for processing with interchangeable tools. In order to deburr complicated geometries, the robot can move horizontally to the ring and the ring itself can be swivelled by up to 20°. The NR 2200 is driven – as the 7th axis of the robot.
