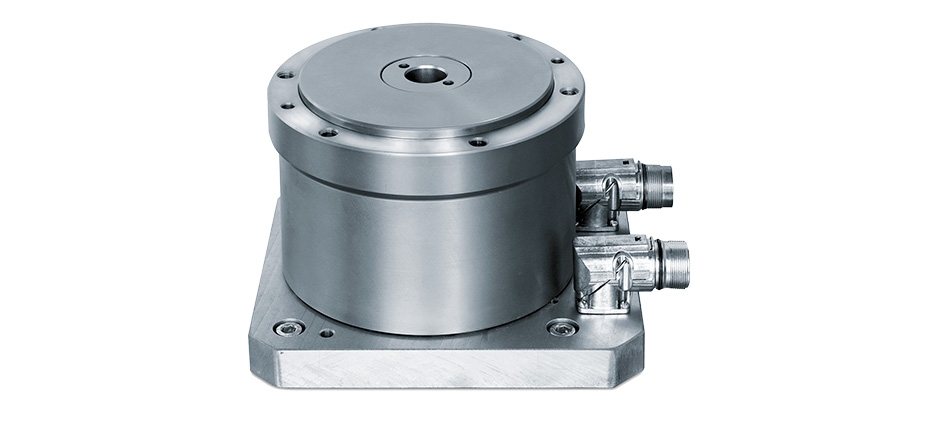

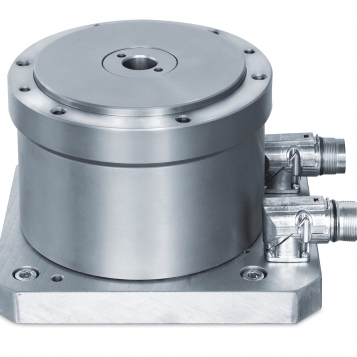

TO 150 torque rotary tables.

Marca

Direct drive rotary table with impressive dynamics and extremely high degree of repeat accuracy. Freely programmable and also suitable for use in clean rooms. The direct drive rotary table allows the shortest switching times with the greatest precision. Its ability to cover a significantly more versatile range of tasks – including repeat use – helps you tap new added value potential.

GENERAL INFORMATION
. Maximum recommended equipment diameter Dtp: approximately 750 mm

TECHNICAL DATA
. Voltage range: 200-600 V
. Max. output speed (230 V): 60 1/min
. Max. output speed (400 V): 200 1/min
. Nominal torque: 15 Nm
. Peak torque: 45 Nm
. Peak current: 6.23 A
. Indexing precision: 50 arcsec (± 25”) | 30 arcsec (± 15”) (optional)
. Axial run-out of the drive flange: (at Ø 150 mm) 0.02 mm
. Concentricity of the output flange: 0.02 mm
. Weight: 16 kg

LOAD DATA (for the output flange)
. Permitted static tilting moment: 600 Nm
. Permitted static axial force: 6000 N
. Permitted static radial force: 10000 N
Combined loads and permitted process forces only after inspection by WEISS.

ENCODER
. Heidenhain ECN113 (absolute) EnDat 2.1 (± 25”)
. Heidenhain ECN225 (absolute) EnDat 2.1 (± 15”)

More Info

Photos

Downloads

Links

Mais Info

Example of Application

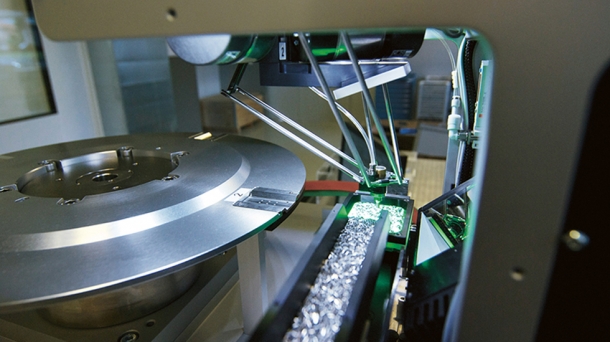

Delta robot, feed system and TO rotary table as a complete solution
A robot cell for handling microcomponents

Challenge
Asyril, based in Switzerland, develops and designs automation solutions for the fast handling of small and miniature components, in particular for the clock-making, precision engineering and microtechnology industries. To extend a trade fair model consisting of a delta robot and a feed system, the custom machine builder needed a component for easy connection to subsequent processes.

Solution
Asyril chose a WEISS TO 150 torque rotary indexing table to complete the system. The delta robot, feed system and rotary indexing table function as a complete solution for handling millimetre-sized particles. The main reason for this decision was the quick and easy set-up using WEISS Application Software and its good reputation in Switzerland. Furthermore, the TO 150 scores points with a positioning accuracy of 25 arcseconds, a cycle time of 0.3 seconds and user programmability.
