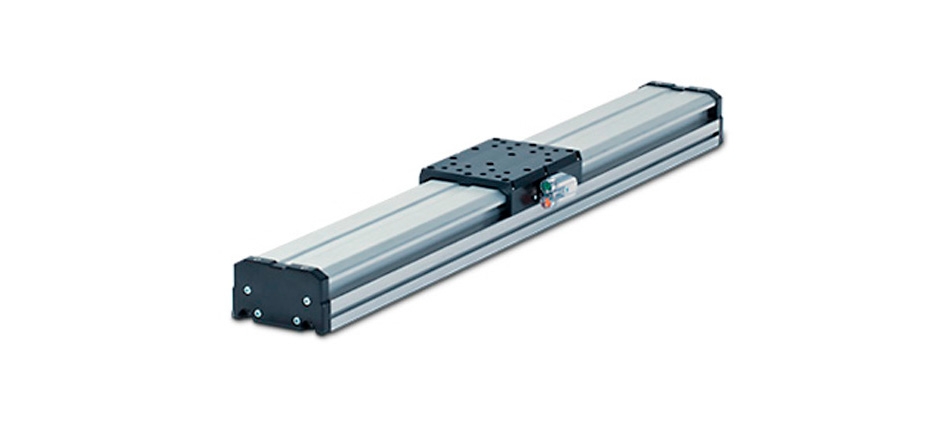

HG 12 linear motor axes.
Marca
The latest in uncompromising, highly dynamic drive technology for your basic axis. Highly integrated and ready for installation. Compact and precise ball-type linear guides and an absolute measuring system are just as much a part of the concept as the automatic lubrication. The HN version is available in many different sizes – with a robust steel body or lightweight aluminium body. The aluminium profile-based HG axes can also be used in areas in which cost factors have typically made conventional drives the standard choice in the past: the most advanced linear technology at extremely attractive conditions. Both versions impress with their smooth movements and maximum dynamics.
TECHNICAL DATA
. Voltage range: 200-480 V
. Max. acceleration: 40 m/s2
. Max. speed: 4 m/s
. Nominal force: 33 N
. Peak force: 102 N
. Peak current: 2 A
. Temperature monitoring: PTC
. Max. stroke: up to 1000 mm in 100 mm
. Repeat accuracy: +/-0.0025mm
. Max. recommended load: 5 kg
. Mass of the guide rail with 0 mm stroke: 1.44 kg
. Mass of the guide rail per 100 mm stroke: 0.72 kg
. Mass of carrier: 1.45 kg
LOAD DATA (static)
. Max. static moment about the X-axis: 150 Nm
. Max. static moment about the Y-axis: 40 Nm
. Max. static moment about the Z-axis: 150 Nm
. Max. static force in the Y-axis: 150 N
. Max. static force in the Z-axis: 300 N
LOAD DATA (dynamic)
. Max. dynamic moment about the X-axis: 20 Nm
. Max. dynamic moment about the Y-axis: 8 Nm
. Max. dynamic moment about the Z-axis: 20 Nm
. Max. dynamic force in the X-axis: 100 N
. Max. dynamic force in the Z-axis: 150 N
ENCODER
. Balluff sin/cos
. Balluff BISS
. Balluff SSI
. Balluff (Rockwell, Mitsubishi) TTL
